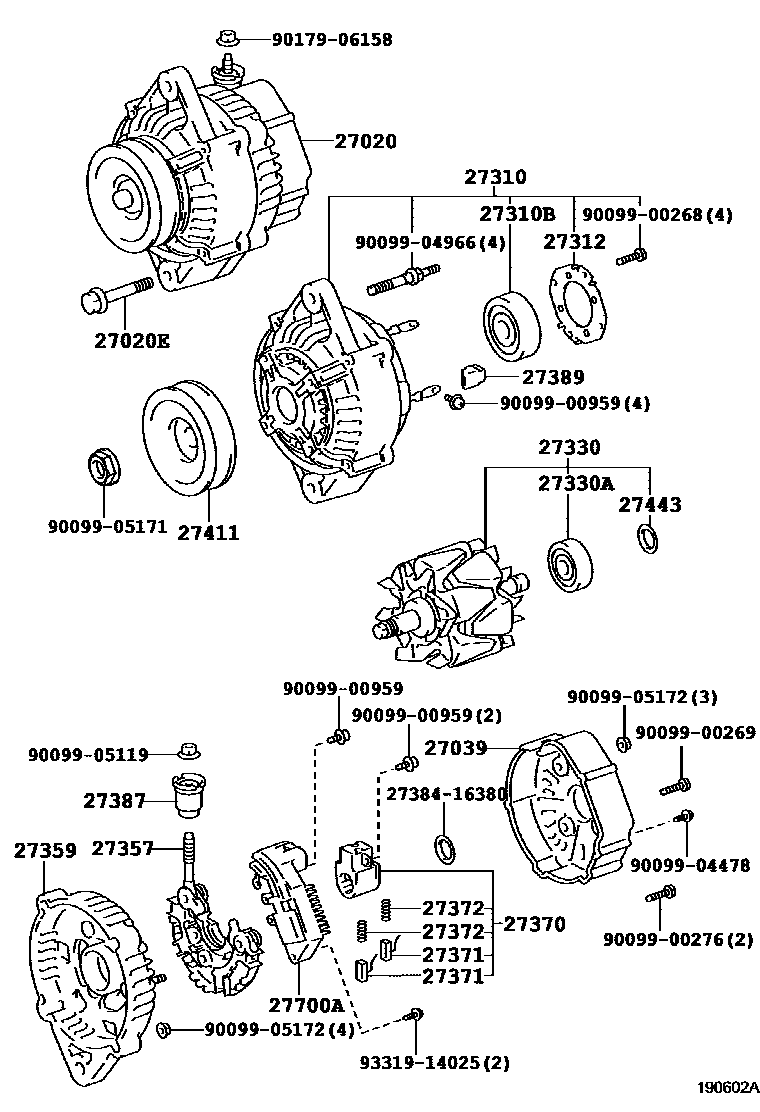

ALTERNATOR

0001 124V 25A 0002 124V 60A 0003 124V 85A 0004 112V 100A 0005 112V 100A 0006 124V 60A 0007 124V 80A 0008 124V 60A 0009 124V 80A 0010 124V 60A 0011 124V 80A

27020ALTERNATOR ASSY

main27060-17110i1HZ..HZB40,50..WOC199907-200408

main27060-17120i1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU199301-199907

main27060-17131i1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG199301-199907

main27060-17240i1H#..HDB50,HZB4#,5#..CBU200108-200408

main27060-58140i3B..BB40..STD..WOC199301-199907

main27060-58150i15BF,3B..BB4#,5#199301-199907

main27060-58161i3B..BB4#..HRF..LX199301-199705

main27060-58162i3B..BB4#..HRF..LX199705-199907

main27060-58320i1BZFPE..BZB40,50200203-200312

main27060-58420i1BZFPE..BZB40,50201501

main27060-78101iN04C..XZB51..SULNG..6FC;N04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU200408-200611

main27060-78110iN04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-200908

main27060-78140iN04C..XZB4#,5#..(4FC,6F)..CBU200611-200708

main27060-78180iN04C..XZB40..SRF..LX201108-201501

main27060-78190iN04C..XZB51..SULNG201010-201108

main27060-E0310iN04C..XZB4#,5#201501

main27060-E0320iN04C..XZB4#,5#..EX,GX,LX201501

27020EBOLT(FOR ALTERNATOR)

main90031-05093iN04C..XZB51..SULNG..6FC200408-201108

main90101-12173i3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)199301-199907

24V 85A

main90105-10038i1H#..HDB5#,HZB4#,5#..09S,20S,26S,29S,49S199301-199407

main90105-10240i15BF,3B..BB4#,5#199301-199707

main90105-10397i1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU199407-199907

main90148-10001i15BFTE,1BZFPE..BB58,BZB40,50199907-200408

mainSZ10510067iN04C..XZB4#,5#201501

27039COVER, ALTERNATOR REAR END

main27039-16380i1HZ..HZB40,50..WOC199907-200408

24V 25A

main27039-17230i15BFTE,1H#..BB58,HDB50,HZB4#,5#..(09S,26S,29S,39S,49S)..CBU200104-200408

24V 60A

main27039-50090i1HZ..HZB40..4FC..IV5;15BFTE,1H#..BB58,HDB5#,HZB4#,5#..CBU199907-200104

24V 60A

main27039-58330iN04C..XZB51..SULNG201010-201108

main27039-73020i3B,1HZ..BB40,HZB50..STD..WOC199301-199701

24V 25A

mainS273921420iN04C..XZB4#,5#201501

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-17100i1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)199907-200408

24V 85A

main27310-17120i1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU199301-199907

24V 60A

main27310-17240i1H#..HDB50,HZB4#,5#..CBU199907-200408

24V 60A

main27310-58040i3B..BB40..STD..WOC199301-199907

24V 25A

main27310-58150i1HZ..HZB50..STD..WOC199301-199907

24V 25A

main27310-58180i15BF,3B..BB4#,5#199301-199907

24V 60A

main27310-58190i3B..BB4#..HRF..LX199301-199705

24V 85A

main27310-58191i3B..BB4#..HRF..LX199705-199907

24V 85A

main27310-58350i1BZFPE..BZB40,50200203-200312

12V 100A

main27310-78180iN04C..XZB4#,5#..HRF..(EX,GX,LX)201010-201501

24V 80A

main27310-78190iN04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU201010-201501

24V 60A

main27310-EV010iN04C..XZB4#,5#201501

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i3B,1HZ..BB40,HZB50..STD..WOC199301-199907

24V 25A

main90099-10188i3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)199301-199907

24V 85A

main90099-10192i15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU199907-200408

24V 60A

main90099-10219iN04C..XZB51..SULNG201010-201108

mainS282522180iN04C..XZB4#,5#201501

27312PLATE, RETAINER

main27312-42010iN04C..XZB4#,5#..(DX,EX,GX,LX,STD)..CBU201010-201501

24V 60A

main27312-56070i3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)199301-199907

24V 85A

main27312-70200i3B,1HZ..BB40,HZB50..STD..WOC199301-199907

24V 25A

main27312-72100iN04C..XZB4#,5#..HRF..(EX,GX,LX)..CBU; N04C..XZB40,50..IV5201010-201501

24V 80A

mainS273121620iN04C..XZB4#,5#201501

27330ROTOR ASSY, ALTERNATOR

main27330-17240iN04C..XZB40..SRF..5F;N04C..XZB40,50..(26S,49S)..(DX,STD)..5F; N04C..XZB40..SRF..6FC;N04C..XZB50..6FC..CBU;N04C..XZB50..29S..WC..5F..CBU;N04C..XZB4#,51,56..HRF..(EX,GX,LX)..(5F,6FC)..CBU200408-201501

24V 60A

main27330-20070i1BZFPE..BZB40,50200312-200408

12V 100A

main27330-28050i1BZFPE..BZB40,50200203-200312

12V 100A

main27330-58040i1HZ..HZB40,50..WOC199907-200408

24V 25A

main27330-58050i1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU199301-199907

24V 60A

main27330-58090i3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)199301-199907

24V 85A

main27330-89108iN04C..XZB4#,5#..HRF..(EX,GX,LX,SULNG)..CBU; N04C..XZB40,50..IV5201010-201107

24V 80A

mainS273301960iN04C..XZB4#,5#201501

mainS273302010iN04C..XZB40..SRF..LX201108-201501

24V 80A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU199301-199907

24V 60A

main90099-10141i3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)199301-199907

24V 85A

main90099-10222iN04C..XZB51..SULNG201010-201108

mainS282521820iN04C..XZB4#,5#201501

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27356-89104iN04C..XZB4#,5#..HRF..(EX,GX,LX,SULNG)..CBU; N04C..XZB40,50..IV5201010-201107

24V 80A

main27357-13360i1HZ..HZB40,50..WOC199907-200408

24V 25A

main27357-17080i1HDFTE..HDB51..CBU;1HZ..HZB40..4FC..IV5199907-200108

24V 60A

main27357-20060i1BZFPE..BZB40,50201501

main27357-63060i3B,1HZ..BB40,HZB50..STD..WOC199301-199701

24V 25A

mainS273561350iN04C..XZB4#,5#201501

mainS273561461iN04C..XZB4#,5#..HRF..(EX,GX,LX)201107-201501

24V 80A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i3B,1HZ..BB40,HZB50..STD..WOC199301-199601

24V 25A

main27359-16181i3B,1HZ..BB40,HZB50..STD..WOC199601-199701

24V 25A

main27359-16182i3B,1HZ..BB40,HZB50..STD..WOC199701-199907

24V 25A

main27359-58050i1BZFPE..BZB40,50200203-200312

12V 100A

mainS274411260iN04C..XZB4#,5#201501

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i1HZ..HZB40,50..WOC199907-200408

24V 25A

main27370-58460iN04C..XZB51..SULNG..6FC200408-201108

24V 80A

main27370-75060i1BZFPE..BZB40,50201501

mainS273701320iN04C..XZB4#,5#201501

24V 60A

mainS273701370iN04C..XZB4#,5#..EX,GX,LX201501

24V 80A

27371BRUSH, ALTERNATOR

main27371-54412×2i1H#..HDB51,HZB4#..08S,10S,19S,24S200108-200408

main27371-70300×2i3B,1HZ..BB40,HZB50..STD..WOC199301-199907

24V 25A

27372SPRING, ALTERNATOR BRUSH

main27372-56070×2i1H#..HDB5#,HZB4#,5#..HRF..(09S,20S,26S,29S)..WC199907-200408

24V 85A

main27372-63020×2i3B,1HZ..BB40,HZB50..STD..WOC199301-199907

24V 25A

main27372-87501×2i1HZ..HZB40,50..WOC199907-200408

27387INSULATOR, TERMINAL

main27387-17130i3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)199301-199907

24V 85A

main27387-20130iN04C..XZB51..SULNG200408-200512

main27387-42020i1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU199301-199708

24V 60A

main27387-42021iN04C..XZB4#,5#..HRF..(EX,GX,LX)..CBU; N04C..XZB40..SRF;N04C..XZB40,50..(26S,49S)..(DX,STD)201010-201501

24V 60A

main27387-70170i3B,1HZ..BB40,HZB50..STD..WOC199301-199708

24V 25A

main27387-70171i3B,1HZ..BB40,HZB50..STD..WOC199709-199907

24V 25A

mainS273871300iN04C..XZB4#,5#201501

24V 60A

mainS273871350iN04C..XZB4#,5#..EX,GX,LX201501

24V 80A

27389INSULATOR, TERMINAL

main27389-42010×4iN04C..XZB51..SULNG201010-201108

main27389-63020×4i3B,1HZ..BB40,HZB50..STD..WOC199301-199907

24V 25A

mainS273871250×4iN04C..XZB4#,5#201501

27411PULLEY, ALTERNATOR

main27411-17010i1HZ..HZB40,50..WOC199907-200408

24V 25A

main27411-17030i1HDFTE..HDB51..CBU;1HZ..HZB40..4FC..IV5199907-200108

24V 60A

main27411-17100i1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG199301-199907

24V 85A

main27411-58010i3B..BB4#..HRF..LX199301-199907

24V 85A

main27411-58040i3B..BB40..STD..WOC199301-199907

24V 25A

main27411-58080i15BFTE..BB58199907-200408

24V 60A

main27411-58290i1BZFPE..BZB40,50200203-200312

12V 100A

main27411-58440i1BZFPE..BZB40,50201501

main27411-89108iN04C..XZB4#,5#..(EX,GX,LX,STD)..(4FC,6F)..CBU200408-200708

24V 60A

main27411-89109iN04C..XZB40..5F..IV5;N04C..XZB51..6FC..IV5200408-200908

24V 80A

mainS274311800iN04C..XZB4#,5#201501

24V 60A

mainS274311810iN04C..XZB4#,5#..EX,GX,LX201501

24V 80A

27443COVER, ALTERNATOR BEARING

main27443-63020i1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU199301-199907

mainS274431070iN04C..XZB4#,5#201501

27700AREGULATOR ASSY, GENERATOR

main27700-58010i3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)199301-199907

24V 85A

main27700-58040i15BF,3B,1HD#,1HZ..BB4#,55,HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S199301-199608

24V 25A OR 24V 60A

main27700-58060iN04C..XZB46,51,56..DCR;N04C..XZB40,50..DCR..6FC..CBU200708-201501

main27700-75010i1BZFPE..BZB40,50200203-200408

12V 100A

mainS277001890iN04C..XZB4#,5#201501

2738416380WASHER

main27384-16380

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009900959

main90099-00959

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

9331914025

main93319-14025

30 parts on this diagram · 11 diagrams in section
