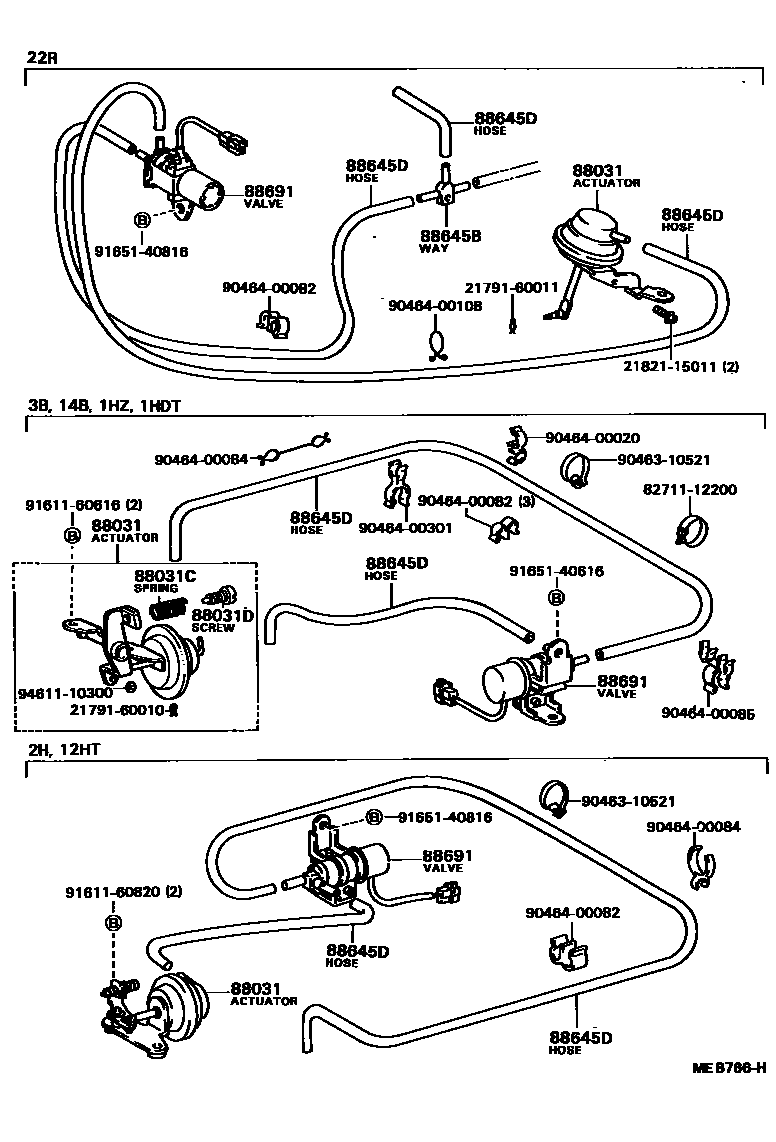

HEATING & AIR CONDITIONING - VACUUM PIPING

88031ACTUATOR SET, IDLE-UP

main21609-57011iBB20,30..WC198205-198302

main88031-30060iBB21,26,31..WC198302-199301

main88031-36012iRB2#..WC198205-199301

main88031-36020iHB3#..WC198205-199001

main88031-36080iBB23,24198808-199301

main88031-36090iHDB20,3#; HZB3#..5F..WC; HZB30,31..4FC; HZB30..WOC199001-199301

COLD SPEC; HEATER COLD SPEC

88031CSPRING(FOR IDLE-UP ACTUATOR)

main21723-10010iBB20,30..WC198205-198302

88031DSCREW, THROTTLE ADJUSTING(FOR IDLE-UP ACTUATOR)

main21844-26030iBB20,30..WC198205-198302

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04005iRB2#..WC198205-199301

88645DHOSE (FOR IDLE UP DEVICE)

main90445-08173iHB30,36..WC198205-198803

L=1600

main90445-08204iBB2#,3#..WC198205-198408

main90445-08207iHDB20,3#,HZB3#199001-199002

main90445-08227iBB2#,31..WC198408-198803

L=1650

main90445-08255iHDB20,3#,HZB3#199002-199301

*H,L=1800

main90445-08259iHDB20,3#,HZB3#199001-199002

main90445-08260iHDB20,3#,HZB3#199002-199301

main90999-92002iHB30,36..WC; HB31,32198803-199001

main90999-92003iBB21,26,31..WC; RB2#..WC198803-199301

main90999-92007iHB30,36..WC; HB31,32198803-199001

L=1600; L=1650

main95411-10030iHB31198510-198803

main95411-10060iBB2#,31..WC198803-199301

main95411-10330iHB30..WC198205-198408

*H,L=110

main95411-19930iHB30,36..WC198408-198803

main95411-19960iBB21,31..WC198302-198408

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88691-90B00iBB21,26,31,HB30,36,HZB30..WOC198808-199301

HEATER

main88691-90B01iRB20..WC199005-199301

main88691-95A00iBB21,26,31,HB30,36,HZB30..WOC198205-199301

2179160010RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-60010

2179160011RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-60011

2182115011SCREW, 2ND THROTTLE VALVE SET

main21821-15011

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9046310521

main90463-10521

9046400020

main90464-00020

9046400082

main90464-00082

9046400084

main90464-00084

9046400085

main90464-00085

9046400108

main90464-00108

9046400301

main90464-00301

9161160616

main91611-60616

9161160820

main91611-60820

9165140616

main91651-40616

9165140816

main91651-40816

9461110300

main94611-10300

22 parts on this diagram · 1 diagram in section
