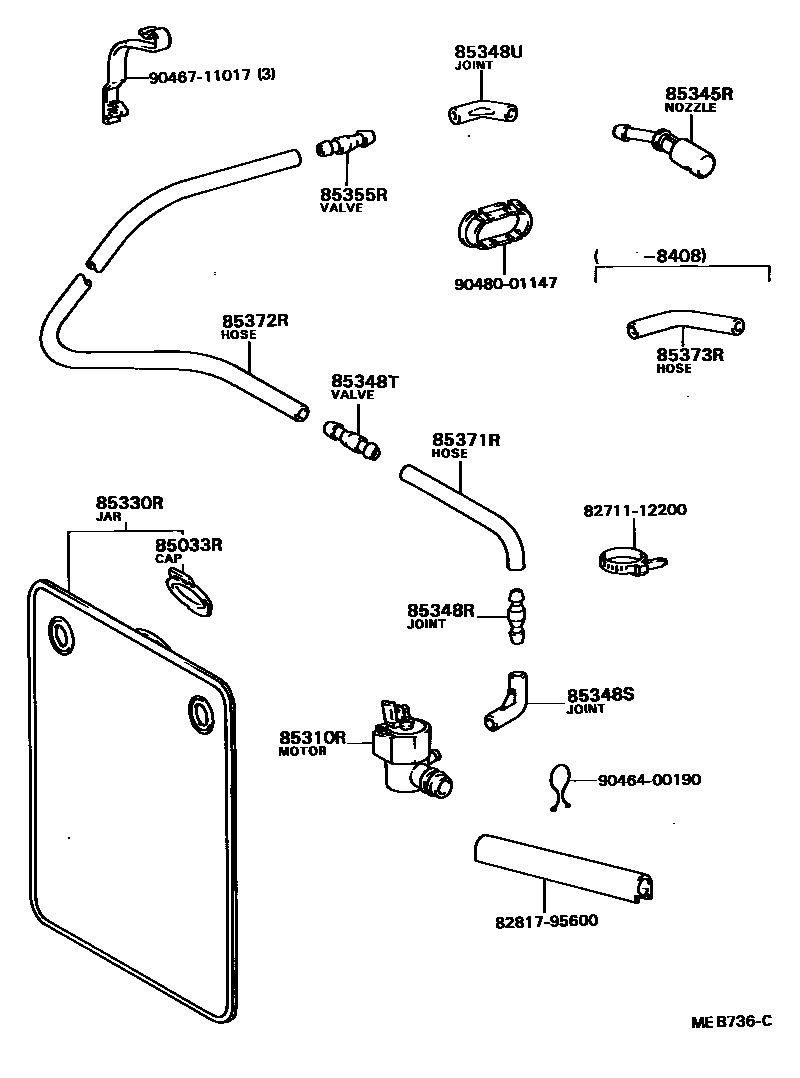

REAR WASHER

85033RCAP ASSY, REAR WASHER

main85033-22010iBB20,21,23,24,30,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG198205-199301

85310RMOTOR ASSY, REAR WASHER

main85310-22080iRB20..DLX198205-199301

main85310-90B00iBB20,21,23,24,30,31,HB30,31,32,HDB20,3#,HZB30,31..DLX,EX,EXS,SULNG198205-199301

85330RJAR ASSY, REAR WASHER

main85330-22050iBB20,21,23,24,30,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG198205-199301

85345RNOZZLE, REAR WASHER

main85035-31010iBB2#,3#,HB30,RB20..DLX,EX,EXS198205-198408

main85035-90B01iBB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG198408-199301

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iBB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG; BB21,31..STD..(26S,29S)198703-199301

main85355-87201iBB20,21,30,31,HB30,31,RB20..DLX,EX,EXS198205-198703

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iBB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG; BB21,31..STD..(26S,29S)198705-199301

main85355-20070iBB21,31..STD..(26S,29S)198510-198705

85348TJOINT, REAR WASHER HOSE, NO.2

main85031-30010iBB20,21,23,24,30,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG198205-199301

85348UJOINT, REAR WASHER HOSE, NO.3

main85355-14481iBB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG; BB21,31..STD..(26S,29S)198705-199301

main85355-20070iBB21,31..STD..(26S,29S)198510-198705

85355RVALVE, REAR WASHER HOSE

main85031-90A00iBB20,21,23,24,30,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG198205-199301

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iBB20,21,23,24,30,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG198205-199301

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90446-06292iBB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG198409-199301

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90446-06013iBB2#,3#,HB30,RB20..DLX,EX,EXS198205-198408

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8281795600PROTECTOR, WIRING HARNESS, NO.1

main82817-95600

9046400190

main90464-00190

9046711017

main90467-11017

9048001147

main90480-01147

17 parts on this diagram · 1 diagram in section
