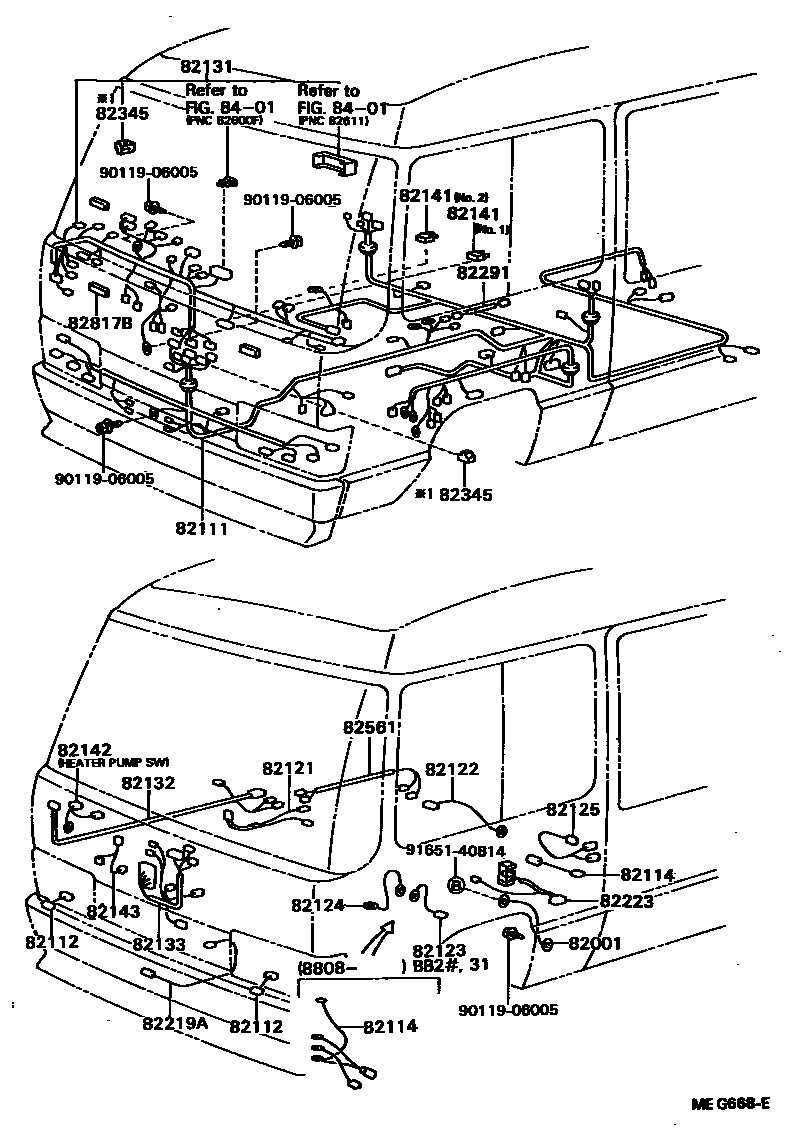

WIRING & CLAMP
82001CABLE, BOND, NO.1
IG COIL
82111WIRE, ENGINE ROOM MAIN
CAMPING CAR
RENTAL CAR; W/*CH; W/*CH & *AUD
*COS & W/*AUD;W/*AUD
W/*AUD & *CH;W/*CH
*COS & W/*AUD;W/*AUD
W/*AUD OR *CH;W/*AUD & (*COS OR *CH)
W/*AUD & (*COS OR *CH);*COS; W/*CH
W/*AUD
W/*CH
W/*AUD(W/O *CH)
W/*AUD(W/O AUTO COOLER);W/*CH(W/O AUTO COOLER)
W/AUTO COOLER
W/*AUD OR *CH
W/*AUD(W/O AUTO COOLER);W/*CH(W/O AUTO COOLER)
W/AUTO COOLER
*COS; W/*AUD & *CH;W/*AUD & *COS; W/*CH ONLY
W/*AUD ONLY
W/*AUD OR *CH(W/O AUTO COOLER)
W/AUTO COOLER
W/*AUD & *CH
W/*CH(W/O *AUD)
W/*AUD(W/*CH)
main82111-90559iBB21,31..DLX..WOC; BB21,31..STD..(26S,29S); BB21,31..STD..WOC; BB26,36..WOC; BB31..STD..WOC; BB36198510-198610
*COS OR *EB OR *FH; *COS OR W/*RWD(W/O *CH); W/*EB OR *FH(W/O *CH); W/SUB FUEL TANK(W/O *CH)
W/*AUD(W/O AUTO COOLER);W/*CH(W/O AUTO COOLER)
W/AUTO COOLER
W/*AUD OR *CH
W/*AUD OR *CH(W/O AUTO COOLER)
W/AUTO COOLER
W/*AUD OR *CH(W/O AUTO COOLER)
W/AUTO COOLER
W/*AUD & *CH
W/*CH(W/O *AUD)
W/*AUD(W/*CH)
W/*AUD OR *CH(W/O AUTO COOLER)
W/AUTO COOLER
W/*AUD & *CH
W/*CH(W/O *AUD)
W/*AUD(W/*CH)
main82111-90763iBB21,31..DLX..WOC; BB21,31..STD..(26S,29S); BB21,31..STD..WOC; BB26,36..WOC; BB31..STD..WOC; BB36198610-198611
*COS OR *EB OR *FH; *COS OR W/*RWD(W/O *CH); W/*EB OR *FH(W/O *CH); W/SUB FUEL TANK(W/O *CH)
main82111-90769iBB21,31..DLX..WOC; BB21,31..STD..(26S,29S); BB21,31..STD..WOC; BB26,36..WOC; BB31..STD..WOC; BB36198611-198708
*COS OR *EB OR *FH; *COS OR W/*RWD(W/O *CH); W/*EB OR *FH(W/O *CH); W/SUB FUEL TANK(W/O *CH)
COLD SPEC
W/*AUD
W/*AUD(W/O AUTO COOLER)
W/*CH,W/*CH & *AUD
W/*AUD
W/*CH; W/*CH,W/*CH & *AUD
W/*AUD
COLD SPEC; W/*CH; W/*CH & *AUD
W/*CH OR *AUD
W/*CH(W/O *AUD)
W/*AUD
W/*CH & *AUD
W/*CH
W/*CH OR *AUD
W/*AUD
W/*CH
W/*CH OR *AUD
COLD SPEC
RENTA CAR SPEC,PACKAGE 1
W/*AUD
W/*CH,W/*CH & *AUD
RENTA CAR SPEC,PACKAGE 2 OR 3; W/*AUD
W/*CH; W/*CH,W/*CH & *AUD
W/*AUD
COLD SPEC; W/*CH; W/*CH OR COLD SPEC
W/*CH OR *AUD
W/*AUD
W/*CH & *AUD
W/*CH OR *AUD
RENTA CAR SPEC,PACKAGE 1
RENTA CAR SPEC,PACKAGE 2 OR 3; W/*AUD
W/*CH; W/*CH,W/*CH & *AUD
W/*CH OR *AUD
RENTA CAR SPEC,PACKAGE 1
W/*AUD & (*COS OR *EB OR *CH);W/*FH & (*AUD OR *CH);W/*EB & *AUD & (*CH OR *FH);W/*AUD OR *CH;*COS & *EB & *AUD & *FH;W/*EB & *CH;*EB & *AUD & *CH & *FH;W/*COS & *EB & (*AUD OR *FH);W/*CH & *FH & (*EB OR *AUD)
W/*EB & *AUD & (*CH OR *FH);W/*AUD & *CH;W/*EB & *AUD & *CH & *FH
W/*CH & (*EB OR *FH);W/*CH;W/*EB & *CH & *FH
W/*EB & *AUD & *FH;*COS & W/*EB & (*AUD OR *FH);*COS & W/*EB & *AUD & *FH;W/*AUD &*FH;W/*AUD;W/*AUD & (*COS OR *EB)
main82111-90B95iBB21,31..DLX..WOC; BB21,31..STD; BB21,31..STD..(26S,29S); BB21,31..STD..WOC; BB26,36..WOC198408-198510
*COS; *COS & W/*EB & *FH; W/*EB & (*COS OR *FH);*COS OR *EB OR *FH;*COS & W/*EB & *FH; W/*EB OR *FH;W/*EB & (*COS OR *FH)
CAMPING CAR
YU-YU SALOON
YU-YU SALOON
CAMPING CAR
W/*CH
W/*AUD&AUTO COOLER; W/*AUD(W/O *CH)
W/AUTO COOLER
W/*AUD(W/O AUTO COOLER); W/*CH(W/O AUTO COOLER)
W/*AUD OR *CH
W/*AUD(W/O AUTO COOLER)
W/AUTO C00LER
*COS; W/*AUD & *CH;W/*AUD & *COS; W/*CH ONLY
W/*AUD OR *CH(W/O AUTO COOLER)
W/*FH & *AUD & AUTO COOLER;W/*AUD & *CH & AUTO COOLER
W/*FH & *AUD & *CH
W/*CH(W/O *AUD)
W/*AUD(W/O *CH)
W/O EXHAUST BRAKE
W/ALTERNATOR=24V 85A; W/ALTERNATOR=24V 85A & AUTO COOLER
W/AUTO COOLER,W/O ALTERNATOR=24V 85A
W/ALTERNATOR=24V 85A W/O AUTO COOLER
CAMPING CAR
W/ALTERNATOR=24V 85A
W/ALTERNATOR=24V 85A & AUTO COOLER
W/*CH
W/ALTERNATOR=24V 85A
W/*AUD(W/O *CH)
W/*AUD(W/O AUTO COOLER);W/*CH(W/O AUTO COOLER)
W/AUTO COOLER
W/*AUD OR *CH
W/ALTERNATOR=24V 85A
W/ALTE=24V 85A & AUTO COOLER
W/*CH(W/O AUTO COOLER)
W/AUTO COOLER
*COS; W/*AUD & *CH;W/*AUD & *COS; W/*CH ONLY
W/*AUD ONLY
W/*AUD OR *CH(W/O AUTO COOLER)
W/AUTO COOLER
W/*AUD & *CH
W/*AUD(W/O *CH)
main82115-90B24iBB21,31..DLX..WOC; BB21,31..STD..(26S,29S); BB21,31..STD..WOC; BB26,36..WOC; BB31..STD..WOC; BB36198708-198808
*COS OR *EB OR *FH; *COS OR W/*RWD(W/O *CH); W/*EB OR *FH(W/O *CH); W/SUB FUEL TANK(W/O *CH)
W/ALTERNATOR=24V 85A
W/ALTE=24V 85A & AUTO COOLER
W/*CH
W/ALTER=24V 85A
W/*AUD(W/O *CH)
W/*AUD(W/O AUTO COOLER);W/*CH(W/O AUTO COOLER)
W/AUTO COOLER
W/*AUD OR *CH
W/ALTERNATOR=24V 85A
W/ALTE=24V 85A & AUTO COOLER
W/*AUD OR *CH(W/O AUTO COOLER)
W/AUTO COOLER
W/*AUD & *CH
W/*CH(W/O *AUD)
W/*AUD(W/O *CH)
main82115-90B66iBB21,31..DLX..WOC; BB21,31..STD..(26S,29S); BB21,31..STD..WOC; BB26..WOC; BB31..STD..WOC198808-199001
*COS OR *EB OR *FH; *COS OR W/*RWD(W/O *CH); W/*EB OR *FH(W/O *CH); W/SUB FUEL TANK(W/O *CH)
W/ALTERNATOR=24V 85A
W/ALTE=24V 85A & AUTO COOLER
W/AUTO COOLER,W/O ALT=24V 85A
W/ALT=24V 85A,W/O AUTO COOLER
W/ALTERNATOR=24V 85A; W/AUTO COOLER & ALT=24V 85A
W/*AUD(W/O AUTO COOLER)
W/AUTO COOLER
*COS; W/*AUD & *CH;W/*AUD & *COS; W/*CH ONLY
W/*AUD ONLY
W/AUTO COOLER&ALT=24V 85A
82112WIRE, ENGINE ROOM, NO.2
*COS; W/*AUD & *CH;W/*AUD & *COS; W/*CH ONLY
82114WIRE, ENGINE ROOM, NO.4
82121WIRE, ENGINE
W/*FH & *AUD & *CH; W/*FH & *AUD & AUTO COOLER;W/*AUD & *CH & AUTO COOLER
82122WIRE, ENGINE, NO.2
24V 85A ALTERNATOR
24V 85A ALTERNATOR
82123WIRE, ENGINE, NO.3
82124WIRE, ENGINE, NO.4
W/GLIDE DOOR
82125WIRE, TRANSMISSION
82131WIRE, COWL
CAMPING CAR
W/CLOCK(EXCL/*COS); W/CLOCK(W/O *DEF TIMER OR *CH);W/CLOCK(EXCL/*COS)
RENTAL CAR
W/*AUD & *CH; W/*AUD & CLOCK & *CH; W/*EB & *AUD & CLOCK *CH
W/*AUD & *CH; W/*AUD ONLY;*COS & W/*AUD & CLOCK;W/*AUD & (*COS OR *EB OR CLOCK; W/*EB & *AUD & (*COS OR CLOCK);*COS & W/*EB & *AUD & CLOCK
W/*CH OR *RWD
W/*DEF TIMER;W/*DEF TIMER & *AUD & CLOCK;W/*DEF TIMER & (*AUD OR CLOCK); W/*EB & *DEF TIMER;W/*EB & *DEF TIMER & *AUD
main82131-90531iBB21,31,HB3#..DLX; BB21,31..STD..(26S,29S); BB26,36..WOC; BB26..WC; BB31..STD..29S; BB36198510-198708
*COS OR W/*EB OR CLOCK;W/*EB & CLOCK;*COS & (W/*EB OR CLOCK); *COS OR W/*EB(W/O *CH);W/CLOCK OR W/*DEF(W/O *CH); W/SUB FUEL TANK (W/O *CH); W/SUB FUEL TANK(W/O *CH)
W/*AUD; W/*AUD(W/O *DEF TIMER OR *CH);W/*AUD(EXCL/*COS)
W/*CH OR *RWD & PREPARATORY HE
W/*DEF TIMER OR *CH
*COS OR W/CLOCK; W/CLOCK(W/O *DEF TIMER OR *CH);*COS OR W/CLOCK
RENTAL CAR
RENTAL CAR
W/*AUD & *CH; W/*AUD & CLOCK & *CH; W/*EB & *AUD & CLOCK *CH
W/*AUD & *CH; W/*AUD ONLY;*COS & W/*AUD & CLOCK;W/*AUD & (*COS OR *EB OR CLOCK; W/*EB & *AUD & (*COS OR CLOCK);*COS & W/*EB & *AUD & CLOCK
W/*CH OR *RWD
W/*DEF TIMER;W/*DEF TIMER & *AUD & CLOCK;W/*DEF TIMER & (*AUD OR CLOCK); W/*EB & *DEF TIMER;W/*EB & *DEF TIMER & *AUD
main82131-90581iBB21,31,HB3#..DLX; BB21,31..STD..(26S,29S); BB26,36..WOC; BB26..WC; BB31..STD..29S; BB36198708-198808
*COS OR W/*EB OR CLOCK;W/*EB & CLOCK;*COS & (W/*EB OR CLOCK); *COS OR W/*EB(W/O *CH);W/CLOCK OR W/*DEF(W/O *CH); W/SUB FUEL TANK (W/O *CH); W/SUB FUEL TANK(W/O *CH)
W/*AUD; W/*AUD(W/O *DEF TIMER OR *CH);W/*AUD(EXCL/*COS)
W/*CH OR *RWD & PREPARATORY HE
W/*DEF TIMER OR *CH
*COS OR W/CLOCK; W/CLOCK(W/O *DEF TIMER OR *CH);*COS OR W/CLOCK
W/CLOCK & *EB
W/*CH
W/*CH
W/*AUD
W/*AUD & *CH
W/*AUD OR *AUD & *CH
W/*AUD
W/*CH; W/CLOCK
W/*CH
W/*AUD; W/*CH & *AUD
W/DEFOGGER TIMER
W/DEFOGGER TIMER
W/CLOCK & *EB
W/*CH
W/*CH
W/*AUD
W/*AUD & *CH
W/*AUD OR *AUD & *CH
W/DEFOGGER TIMER
W/*AUD OR *AUD & *CH
RENTAL CAR; W/*AUD & *COS
W/*AUD OR *CH
W/*AUD & *CH;W/*AUD & CLOCK & *CH; W/*EB & *AUD & CLOCK *CH
*COS & W/*AUD & CLOCK;W/*AUD & (*COS OR *EB OR CLOCK;W/*AUD; W/*EB & *AUD & (*COS OR CLOCK);*COS & W/*EB & *AUD & CLOCK
W/*DEF TIMER;W/*DEF TIMER & *AUD & CLOCK;W/*DEF TIMER & (*AUD OR CLOCK); W/*EB & *DEF TIMER & CLOCK;W/*EB & *DEF TIMER;W/*EB & *DEF TIMER & *AUD;W/*EB & *DEF TIMER & *CH
W/*CH; W/*EB & *CH
*COS OR W/*EB OR W/CLOCK;W/*EB & CLOCK;*COS & (W/*EB OR CLOCK);*COS & *EB & CLOCK; *COS OR W/*EB(W/O *CH);W/CLOCK OR W/*DEF(W/O *CH)
W/*AUD
W/*CH
W/*AUD(W/O *DEF TIMER OR *CH);W/*AUD(EXCL/*COS)
*COS OR W/*DEF TIMER OR *CH
RENTAL CAR & W/HEATER IDLE UP
RENTAL CAR; W/*AUD & *CH
W/*AUD,W/O *CH
W/*CH,W/O *AUD
W/*DEF TIMER,W/*DEF TIMER & *AUD
*COS OR *EB OR W/CLOCK;W/SIDE MIRROR,W/O *AUD,*CH; W/O *AUD,*CH & *DEF TIMER
W/*AUD; W/*AUD(W/O *DEF TIMER OR *CH);W/*AUD(EXCL/*COS)
W/*CH,W/O *AUD
W/*AUD & *COS; W/*DEF TIMER OR *CH
W/CLOCK(W/O *DEF TIMER OR *CH);*COS OR W/CLOCK
W/AIR SUSPENSION & HTR IDLE UP; W/HEATER IDLE UP
W/*DEF TIMER & HTR IDLE UP
W/HEATER IDLE UP
W/*AUD; W/*AUD(W/O *DEF TIMER OR *CH);W/*AUD(EXCL/*COS)
W/*CH,W/O *AUD
W/*AUD & *COS; W/*DEF TIMER OR *CH
W/CLOCK(W/O *DEF TIMER OR *CH);*COS OR W/CLOCK
*COS OR *EB OR W/CLOCK;W/SIDE MIRROR,W/O *AUD,*CH; W/O *AUD,*CH & *DEF TIMER
RENTAL CAR & W/HEATER IDLE UP
CAMPING CAR
YU-YU SALOON
RENTAL CAR; W/*AUD & *CH
W/*AUD,W/O *CH
W/*CH,W/O *AUD
W/*DEF TIMER,W/*DEF TIMER & *AUD
W/O EXHAUST BRAKE; W/O HAUST BRAKE
W/O EXHAUST BRAKE
W/O EXHAUST BRAKE
CAMPING CAR
W/*AUD(W/O *DEF TIMER OR *CH);W/*AUD(EXCL/*COS)
W/*AUD & *COS; W/*DEF TIMER OR *CH
82132WIRE, COWL, NO.2
RENTA CAR SPEC,PACKAGE 2; RENTA CAR SPEC,PACKAGE 2 OR 3
CAMPING CAR
RENTA CAR SPEC
82133WIRE, COWL, NO.3
W/*RWD OR *AUD
W/DEFOGGER TIMER
W/DEFOGGER
W/DEFOGGER TIMER
82141WIRE, INSTRUMENT PANEL
NO.1; RENTA CAR
RADIO=W/O ELECTRIC SEARCH,NO.2
82142WIRE, INSTRUMENT PANEL, NO.2
HEATER PUMP SW
*RC2 OR *RC3,RADIO
HEATER SW
HEATER SW,W/AUTO COOLER
HEATER PUMP SW
82143WIRE, INSTRUMENT PANEL, NO.3
W/O *EB
W/*EB
82219AWIRE, SENSOR
82223WIRE, SWITCH
W/VENT FAN; W/VENT FAN,TV
W/VENT FAN,TV,COOL BOX
82291WIRING, TO SOLENOID
82345DIODE
NO,1
NO.2
82561WIRE, REAR SPEAKER
82817BPROTECTOR, WIRING HARNESS, NO.3
8401SWITCH & RELAY & COMPUTER
9011906005
main90119-06005
9165140814
main91651-40814
24 parts on this diagram · 8 diagrams in section
