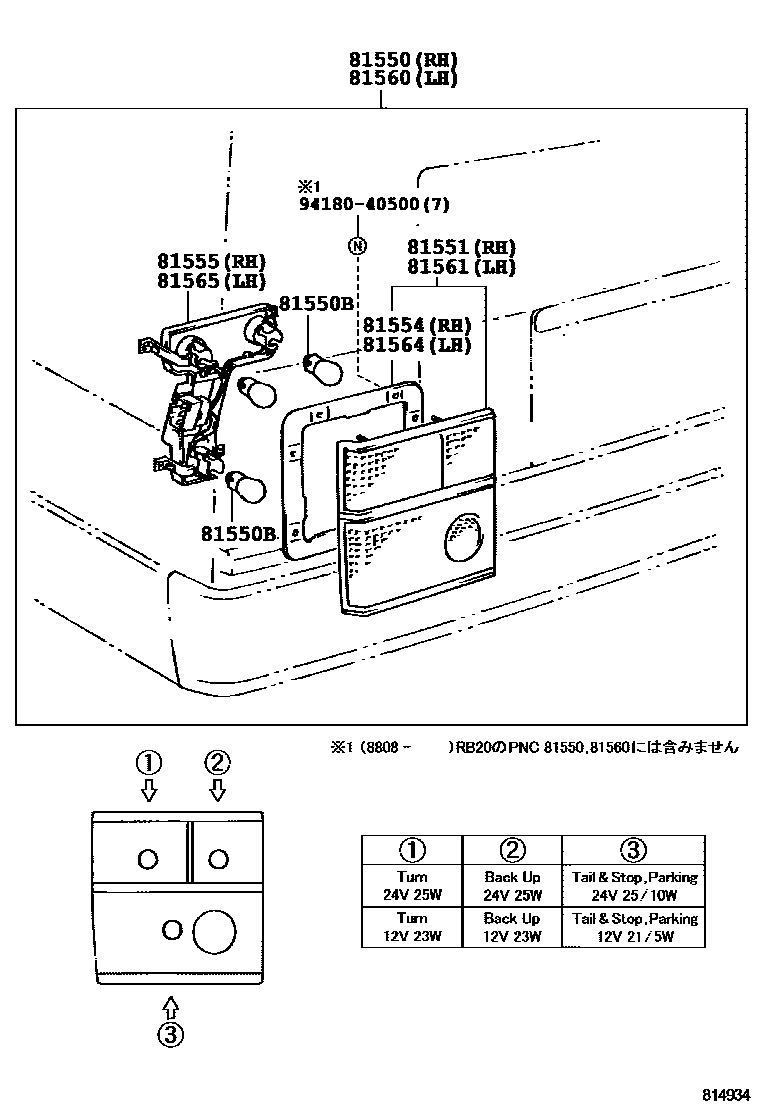

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39705iRB2#198205-198808

main81550-39715iBB2#,3#,HB3#,HDB20,3#,HZB3#198205-199301

main81550-90B03iRB20198808-199301

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16021×2iBB2#,31,HB3#,HDB20,3#,HZB3#198205-199301

main99132-11210×4iRB20198808-199301

main99132-11230×4iRB2#198205-198808

main99132-21210×2iRB2#198205-199301

main99134-11250×4iBB2#,31,HB3#,HDB20,3#,HZB3#198205-199301

81551LENS, REAR COMBINATION LAMP, RH

main81551-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

81560LAMP ASSY, REAR COMBINATION, LH

main81560-39665iRB2#198205-198808

main81560-39675iBB2#,3#,HB3#,HDB20,3#,HZB3#198205-199301

main81560-90B03iRB20198808-199301

81561LENS, REAR COMBINATION LAMP, LH

main81561-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

9418040500

main94180-40500

10 parts on this diagram · 1 diagram in section
