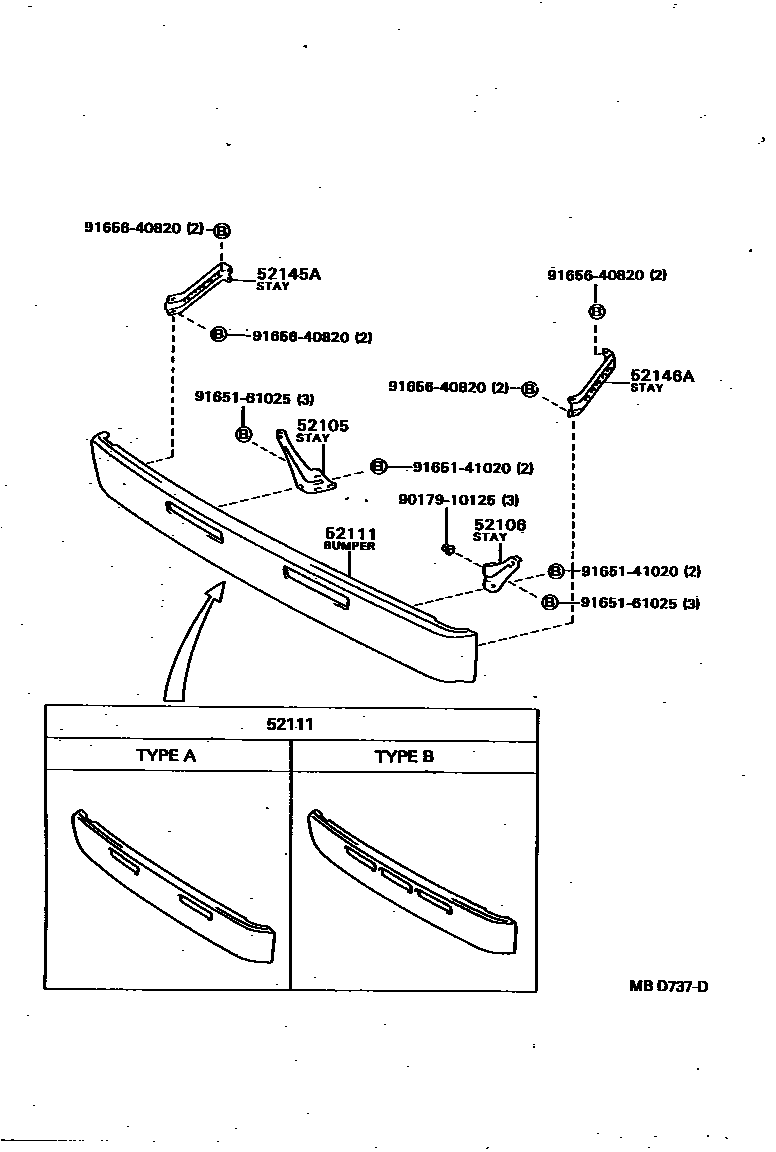

FRONT BUMPER & BUMPER STAY

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52141-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52142-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

52111BUMPER ASSY, FRONT

main52018-90B00iBB2#,3#,HB30,36,RB2#..10S,20S,26S,29S,39C198205-198512

TYPE A

main52018-90B01iBB2#,3#,HB30,36,RB2#..10S,26S,29S,39C198512-198711

TYPE A

main52018-90B02iBB30,31..44C198205-198711

TYPE A

main52018-90B05iHB31198510-198711

TYPE B

main52018-90B08iBB21,23,26,3#,HB30,36,HZB30,RB2#..10S,26S,29S,39C198711-199301

TYPE A

main52018-90B09iBB31..44C198711-199301

TYPE A

main52018-90B11iHDB20,3#,HZB31; HZB30..4FC199001-199301

TYPE B

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-90B00iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

9017910125

main90179-10125

9165141020

main91651-41020

9165161025

main91651-61025

9165640820

main91656-40820

9 parts on this diagram · 1 diagram in section
