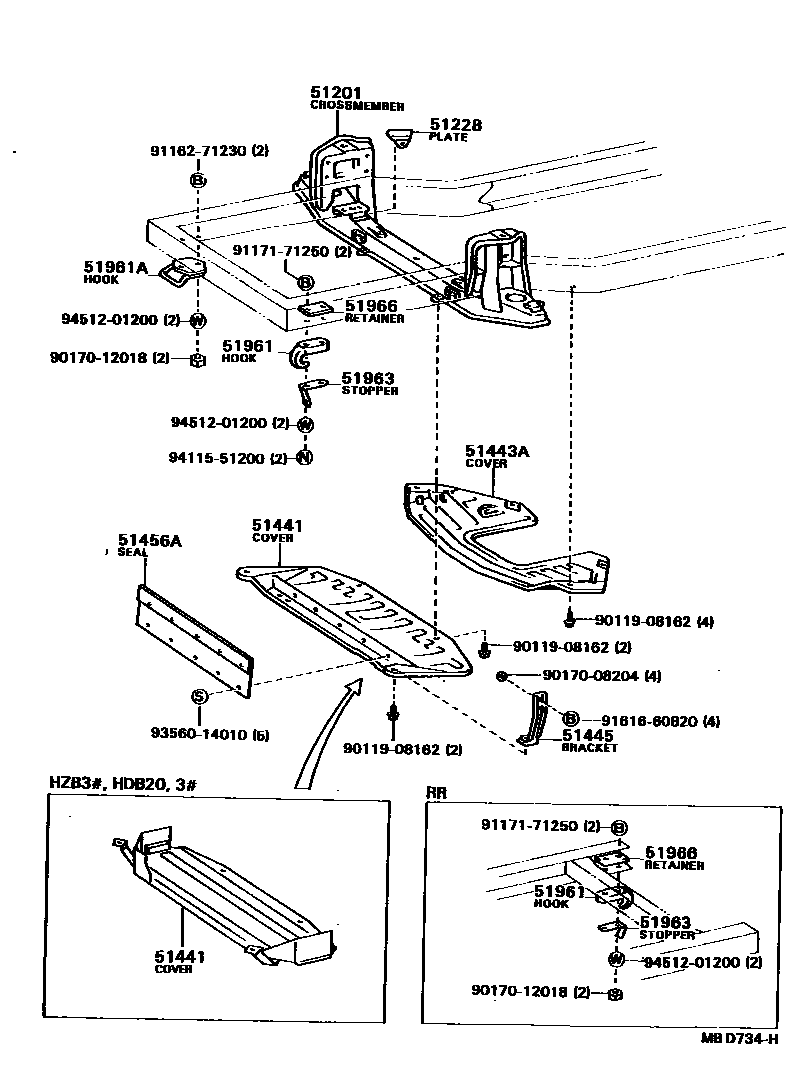

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-36100iBB2#,3#,HB3#,RB2#198205-198610

main51201-36101iBB2#,3#,HB3#,RB2#198610-199301

51228PLATE, SUSPENSION MEMBER SET

main51229-36010iBB2#,3#,HB3#,RB2#198205-199301

51441COVER, ENGINE UNDER, NO.1

main51441-36150iBB2#,3#,HB3#,RB2#198205-199301

main51441-36260iHDB20,3#,HZB3#199001-199301

51443ACOVER, ENGINE UNDER, REAR

main51443-36010iHB3#198205-199301

51445BRACKET, ENGINE UNDER COVER

main51445-36010iBB2#,3#,HB3#,RB2#198205-199301

51456ASEAL, ENGINE UNDER COVER, REAR

main51456-36040iRB2#198205-199301

51961HOOK, NO.1

main51961-60010iBB2#,3#,HB3#,RB2#198205-199301

51961AHOOK, NO.3

main51963-36020iBB2#,3#,HB3#,RB2#198205-198601

main51963-36050iBB2#,3#,HB3#,RB2#198601-199301

51963STOPPER, HOOK WIRE

main51963-35010iBB2#,3#,HB3#,RB2#198205-199301

51966RETAINER, REAR HOOK

main51966-60010iBB2#,3#,HB3#,RB2#198205-199301

9011908162

main90119-08162

9017008204

main90170-08204

9017012018

main90170-12018

9116271230

main91162-71230

9117171250

main91171-71250

9161660820

main91616-60820

9356014010

main93560-14010

9411551200

main94115-51200

9451201200

main94512-01200

19 parts on this diagram · 1 diagram in section
