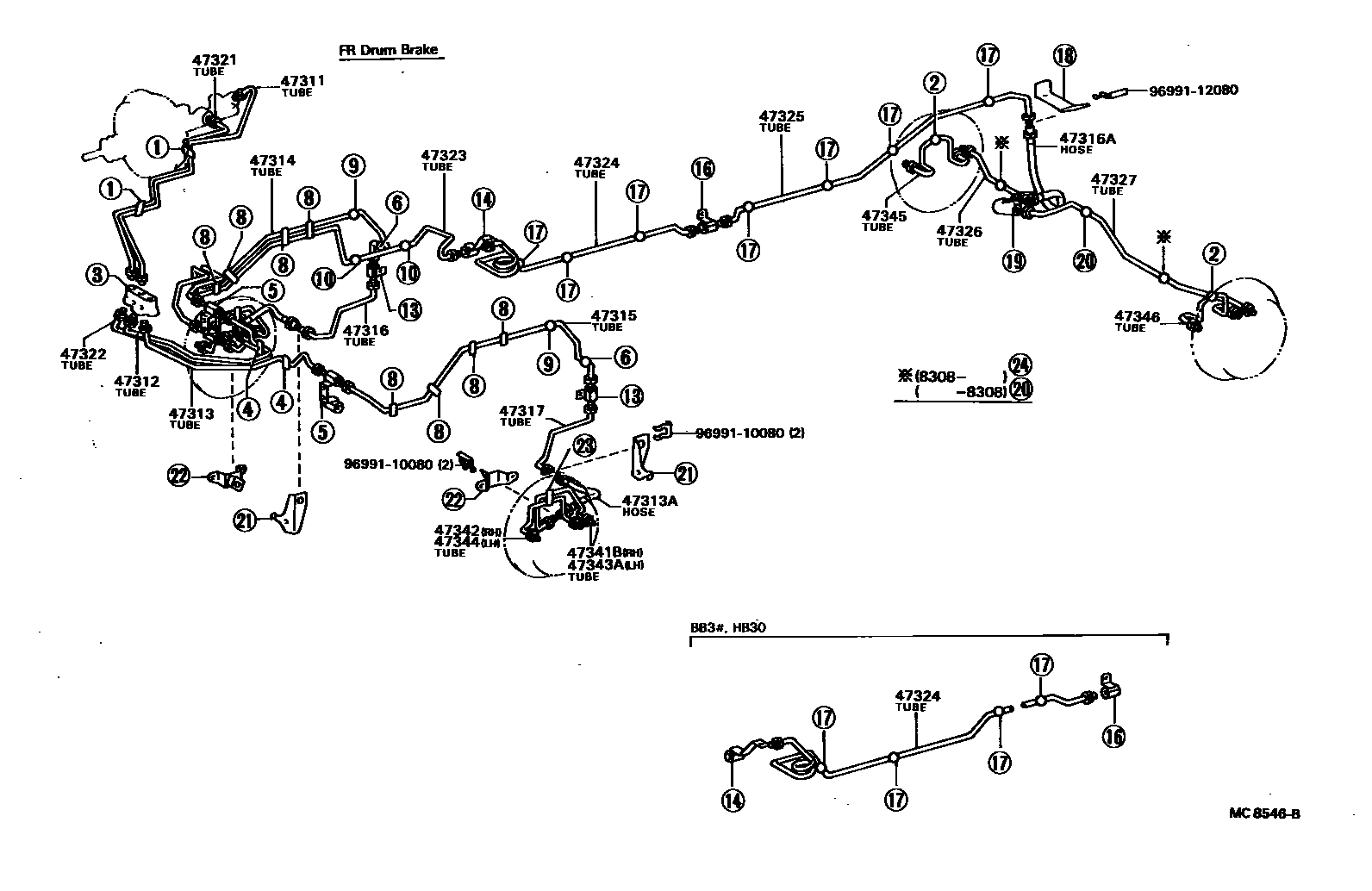

BRAKE TUBE & CLAMP

0001 1 0003 1 0004 1

47311TUBE, FRONT BRAKE, NO.1

main47311-36240iBB2#,3#,HB30,RB20198205-198408

main47311-36241iBB3#,HB3#,HDB3#,HZB3#198510-199301

main47311-36340iBB2#,3#,HB3#,RB2#198408-198510

47312TUBE, FRONT BRAKE, NO.2

main47312-36210iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

47313TUBE, FRONT BRAKE, NO.3

main47313-36130iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02531×2iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198610-199301

main96950-33205×2iBB2#,3#,HB3#,RB2#198205-198610

47314TUBE, FRONT BRAKE, NO.4

main47314-36150iBB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD198205-199301

FR DRUM BRAKE

main47314-36160iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

FR DISC BRAKE

47315TUBE, FRONT BRAKE, NO.5

main47315-36140iBB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD198205-199301

FR DRUM BRAKE

main47315-36150iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

FR DISC BRAKE

47316TUBE, FRONT BRAKE, NO.6

main47316-36210iBB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD198205-199301

FR DRUM BRAKE

main47316-36220iBB2#,3#,HB3#,RB2#198205-198511

FR DISC BRAKE

main47316-36240iHB3#198511-198610

FR DISC BRAKE

main47316-36251iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198610-199301

FR DISC BRAKE

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02530iBB21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2#198610-199301

main96912-33256iBB24,HB32,HDB20,31,HZB31198808-199301

main96912-34005iBB2#,3#,HB3#,RB2#198205-198610

47317TUBE, FRONT BRAKE, NO.7

main47317-36090iBB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD198205-199301

FR DRUM BRAKE

main47317-36100iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

FR DISC BRAKE

47321TUBE, REAR BRAKE, NO.1

main47321-36140iBB2#,3#,HB30,RB20198205-198408

main47321-36141iBB3#,HB3#,HDB3#,HZB3#198510-199301

main47321-36240iBB2#,3#,HB3#,RB2#198408-198510

47322TUBE, REAR BRAKE, NO.2

main47322-36100iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

47323TUBE, REAR BRAKE, NO.3

main47323-36030iBB2#,3#,HB3#,RB2#..DLX,STD198205-198610

FR DRUM BRAKE

main47323-36031iBB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD198610-199301

FR DRUM BRAKE

main47323-36040iBB2#,3#,HB3#,RB2#198205-198610

FR DISC BRAKE

main47323-36041iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198610-199301

FR DISC BRAKE

47324TUBE, REAR BRAKE, NO.4

main47324-36050iBB2#,RB2#198205-199301

main47324-36061iBB3#,HB3#198205-198510

main47324-36180iBB3#,HZB31198510-199301

main47324-36250iHDB20199001-199301

47325TUBE, REAR BRAKE, NO.5

main47325-36110iBB20,21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2#198205-199005

main47325-36111iBB21,23,26,31,HDB30,HZB30,RB20199005-199301

main47325-36320iBB24,HB32,HDB20,31,HZB31198808-199301

47326TUBE, REAR BRAKE, NO.6

main47326-36060iBB2#,3#,HB30,RB20198205-198308

main47326-36061iBB21,31,HB30,RB20198308-198408

main47326-36062iBB21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2#198408-199301

main47326-36170iBB24,HB32,HDB20,31,HZB31198808-199301

47327TUBE, REAR BRAKE, NO.7

main47327-36080iBB2#,3#,HB30,RB20198205-198308

main47327-36081iBB21,31,HB30,RB20198308-198408

main47327-36082iBB21,23,26,3#,HB30,31,36,HDB30,HZB30,36,RB2#198408-199301

main47327-36200iBB24,HB32,HDB20,31,HZB31198808-199301

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-36050iBB2#,3#,HB30,RB20..DLX,STD198205-198408

main47341-36051iBB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD198408-199301

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36040iBB2#,3#,HB30,RB20..DLX,STD198205-198408

main47342-36041iBB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD198408-199301

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-36030iBB2#,3#,HB30,RB20..DLX,STD198205-198408

main47343-36031iHZB30..WOC199001-199301

FR DRUM BRAKE

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-36040iBB2#,3#,HB30,RB20..DLX,STD198205-198408

main47342-36041iBB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD198408-199301

47345TUBE, WHEEL CYLINDER, REAR RH

main47345-36020iBB2#,3#,HB30,RB20198205-198408

main47345-36040iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198408-199301

47346TUBE, WHEEL CYLINDER, REAR LH

main47345-36020iBB2#,3#,HB30,RB20198205-198408

main47345-36040iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198408-199301

9699110080

main96991-10080

9699112080

main96991-12080

24 parts on this diagram · 3 diagrams in section
