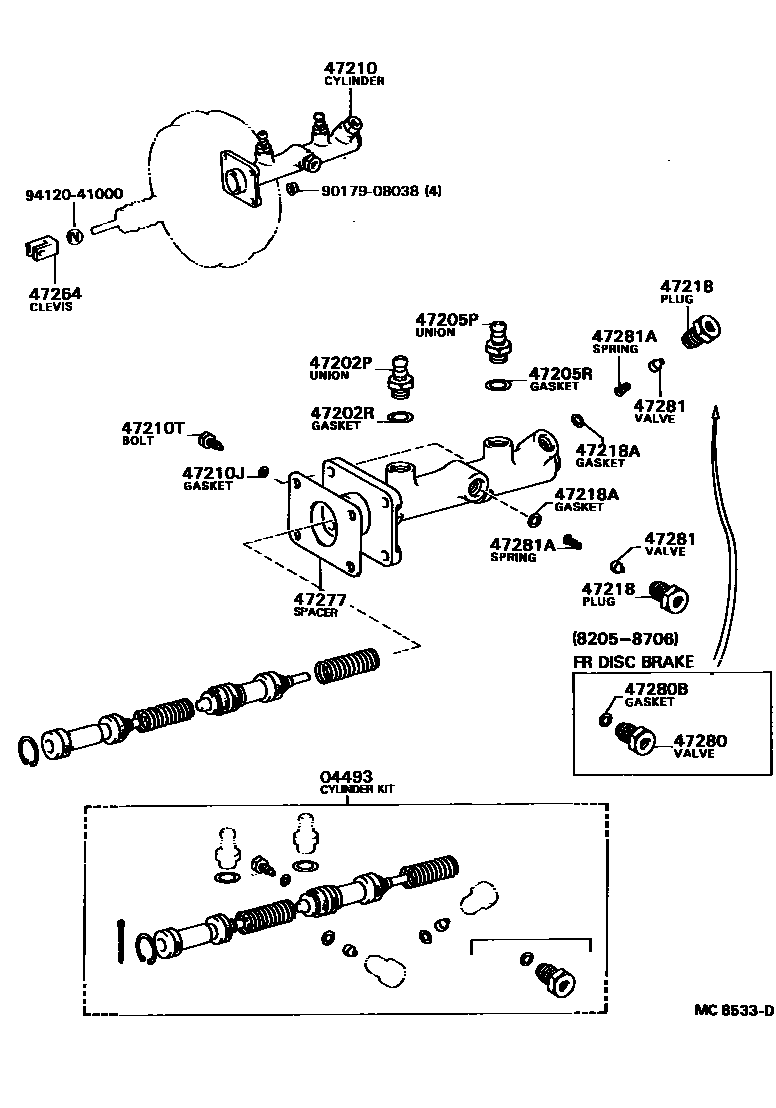

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-36020iBB2#,3#,HB30,RB20..(DLX,STD)..CBU198205-198408

FR DRUM BRAKE

main04493-36030iBB2#,3#,HB30,RB20..CBU198205-198408

FR DISC BRAKE

main04493-36080iBB3#,HB3#,HDB3#,HZB3#198510-199301

FR DISC BRAKE

sub04493-36081

main04493-36100iBB2#,3#,HB3#,RB2#..(DLX,STD)..CBU198408-199301

FR DRUM BRAKE

main04493-36110iBB2#,RB2#198408-198706

FR DISC BRAKE

sub04493-36111

main04493-36111iBB2#,HDB20,RB2#198706-199301

FR DISC BRAKE

main04493-36120iBB3#,HB30,31,36,HZB36..DLX,STD198510-199301

FR DRUM BRAKE

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-36030iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F..CBU198205-199301

main47220-36060iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90404-16233iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..CBU198205-199301

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16242iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..CBU198205-199301

47205PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90404-16233iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..CBU198205-199301

47205RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR SIDE)

main90430-16242iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..CBU198205-199301

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-36090iBB2#,3#,HB30,RB20..(DLX,STD)..CBU198205-198408

FR DRUM BRAKE

sub47201-36091

main47201-36091iBB21,23,26,RB2#198408-199301

FR DRUM BRAKE

main47201-36100iBB2#,3#,HB30,RB20..CBU198205-198408

FR DISC BRAKE

sub47201-36101

main47201-36101iBB2#,3#,HB3#,RB2#..CBU198408-198510

main47201-36101iBB2#,HDB20,RB2#198510-199301

FR DISC BRAKE

main47201-36220iBB3#,HB3#,HDB3#,HZB3#198510-199301

FR DISC BRAKE

main47201-36230iBB3#,HB30,31,36,HZB36..DLX,STD198510-199301

FR DRUM BRAKE

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..CBU198205-199301

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..CBU198205-199301

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-36030iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..CBU198205-199301

main47218-36060iBB21,26,3#,HB30,31,36,HDB20,3#,HZB3#,RB2#198706-199301

FR DISC BRAKE,RR

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-11001iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..CBU198205-199301

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iBB3#,HB3#,HDB3#,HZB3#..CBU198205-199301

main47264-22020iBB2#,HDB20,RB2#..CBU198205-199301

47277SPACER, MASTER CYLINDER

main47277-36010iBB3#,HB3#,HDB20,3#,HZB3#198510-199301

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-36010iBB2#,3#,HB3#,RB2#..CBU198205-198706

sub47218-36060

47280BGASKET(FOR BRAKE MASTER CYLINDER OUTLET VALVE)

main90430-11001iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..CBU198205-199301

47281VALVE, BRAKE MASTER CYLINDER OUTLET CHECK

main47281-30020iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..CBU198205-199301

47281ASPRING COMPRESSION(FOR OUTLET CHECK VALVE)

main90501-05012iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..CBU198408-199301

main90504-05003iBB2#,3#,HB30,RB20..CBU198205-198408

9017908038

main90179-08038

9412041000

main94120-41000

19 parts on this diagram · 2 diagrams in section
