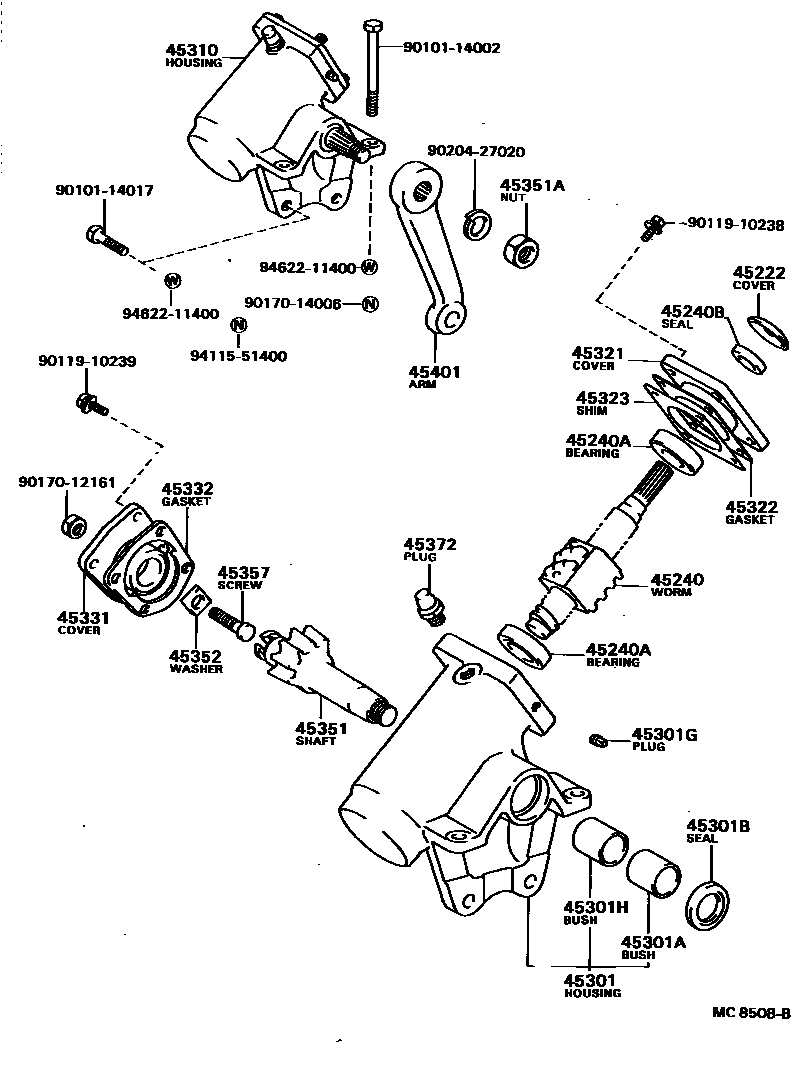

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

45222COVER, STEERING GEAR DUST

main45222-26010iBB20,21,26,3#,RB2#198205-199001

45240WORM ASSY, STEERING

main45240-36090iBB20,21,26,3#,RB2#198205-199001

45240ABEARING(FOR STEERING WORM)

main90363-25046×2iBB20,21,26,3#,RB2#198205-199001

45240BSEAL, OIL(FOR STEERING WORM)

main90311-22103iBB20,21,26,3#,RB2#198205-199001

45301HOUSING SUB-ASSY, STEERING GEAR

main45301-36120iBB20,21,26,3#,RB2#198205-199001

45301ABUSH OR BEARING, SECTOR SHAFT, NO.1

main90999-73060iBB20,21,26,3#,RB2#198205-199001

45301BSEAL, OIL(FOR SECTOR SHAFT)

main90311-36104iBB20,21,26,3#,RB2#198205-199001

45301GPLUG, STEERING GEAR BOX OIL

main90345-51001iBB20,21,26,3#,RB2#198205-199001

45301HBUSH OR BEARING, SECTOR SHAFT, NO.2

main90999-73060iBB20,21,26,3#,RB2#198205-199001

45310HOUSING ASSY, STEERING GEAR

main45310-36140iBB20,21,26,3#,RB2#198205-199001

45321COVER, GEAR HOUSING END

main45321-36030iBB20,21,26,3#,RB2#198205-199001

45322GASKET, GEAR HOUSING END COVER

main45322-37010iBB20,21,26,3#,RB2#198205-199001

45323SHIM, GEAR HOUSING END COVER

main45323-37010iBB20,21,26,3#,RB2#198205-199001

main45323-37020iBB20,21,26,3#,RB2#198205-199001

main45323-37030iBB20,21,26,3#,RB2#198205-199001

main45323-37040iBB20,21,26,3#,RB2#198205-199001

main45323-37050iBB20,21,26,3#,RB2#198205-199001

main45323-37060iBB20,21,26,3#,RB2#198205-199001

45331COVER, SECTOR SHAFT END

main45304-36040iBB20,21,26,3#,RB2#198205-199001

45332GASKET, SECTOR SHAFT END COVER

main45332-36030iBB20,21,26,3#,RB2#198205-199001

45351SHAFT, STEERING SECTOR

main45351-36040iBB20,21,26,3#,RB2#198205-199001

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-27033iBB20,21,26,3#,RB2#198205-199001

45352WASHER, SECTOR SHAFT THRUST

main45352-37010iBB20,21,26,3#,RB2#198205-199001

main45353-37010iBB20,21,26,3#,RB2#198205-199001

main45354-37010iBB20,21,26,3#,RB2#198205-199001

45357SCREW, SECTOR SHAFT ADJUSTING

main45357-36010iBB20,21,26,3#,RB2#198205-199001

45372PLUG, STEERING GEAR HOUSING OIL

main90930-03058iBB20,21,26,3#,RB2#198205-199001

45401ARM SUB-ASSY, PITMAN

main45411-36210iBB20,21,26,3#,RB2#198205-199001

9010114002

main90101-14002

9010114017

main90101-14017

9011910238

main90119-10238

9011910239

main90119-10239

9017012161

main90170-12161

9017014006

main90170-14006

9020427020

main90204-27020

9411551400

main94115-51400

9462211400

main94622-11400

30 parts on this diagram · 4 diagrams in section
