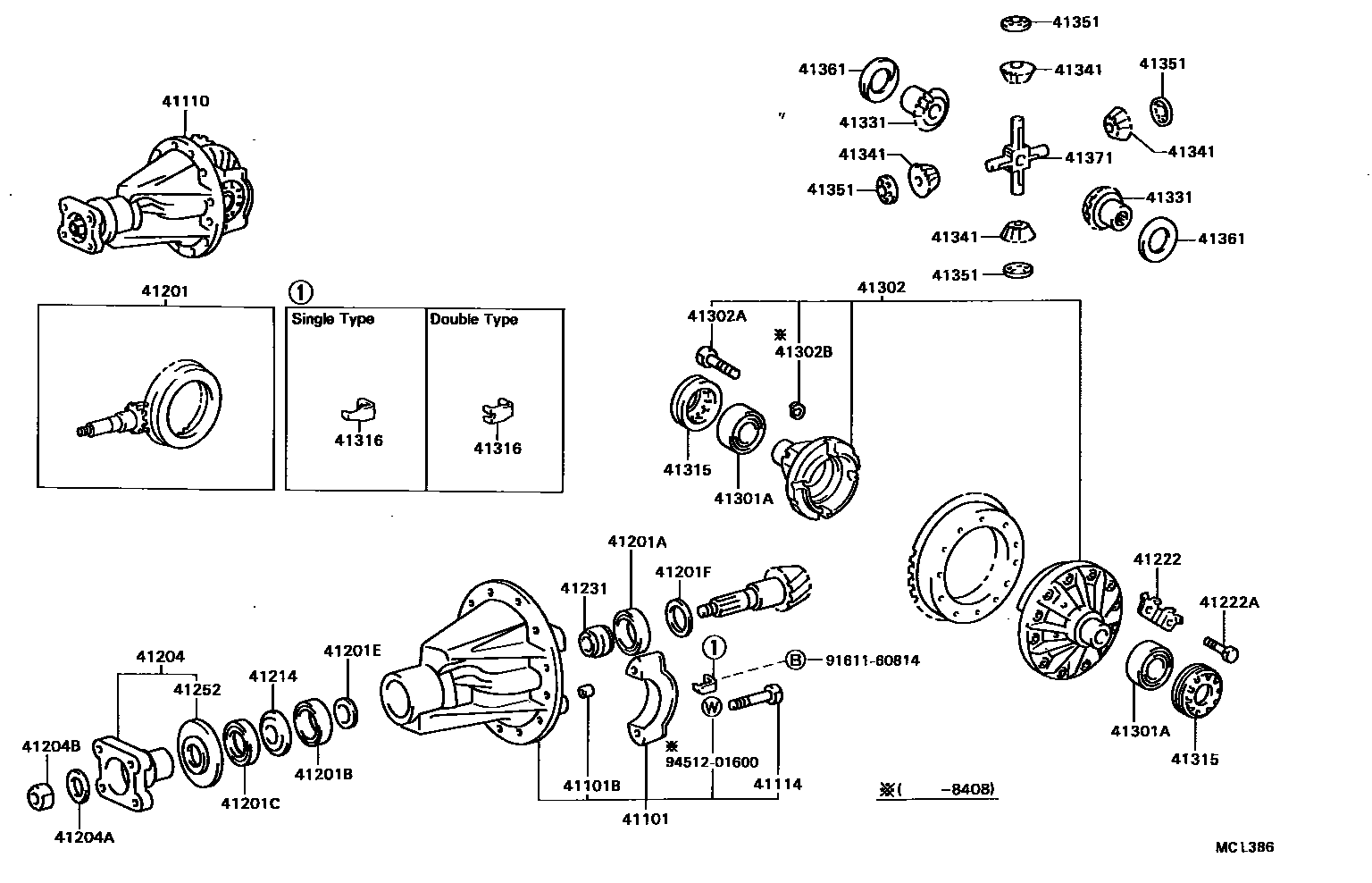

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-36030iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41101BPIN, RING (FOR REAR DIFFERENTIAL CARRIER)

main90253-21001×4iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-36240iBB2#..39C; BB2#..WC; BB3#..WOC198205-198408

*AXC=L264,*FGR=39:7

main41110-36250iBB3#..WC; RB20..WOC198205-198408

*AXC=L194,*FGR=35:6

main41110-36260iRB20..WC198205-198408

*AXC=L204,*FGR=37:6

main41110-36280iBB2#..26S..WOC198205-198408

*AXC=L154,*FGR=41:8

main41110-36290iHB30..WOC198205-198408

*AXC=L404,*FGR=43:8

main41110-36340iHB30..20S,26S198205-198408

*AXC=L404,*FGR=43:8

main41110-36360iHB30..EX,EXS198305-198408

*AXC=L264,*FGR=39:7

main41110-36370iHB30..EX..29S198305-198408

*AXC=L194,*FGR=35:6

main41110-36400iBB21..26S..WOC198408-198702

main41110-36410iHB30..WOC198408-198702

main41110-36420iBB21..39C; BB21..WC; BB26,31..(10S,44C)..WOC; BB31..29S; HB30,31..DLX..5F; HB36..WOC198408-198702

main41110-36430iBB26..WC; BB31..44C; BB36; HB30,36..DLX..WC; RB2#..WOC198408-198702

main41110-36440iRB2#..WC198408-198702

main41110-36460iHB30..20S,26S198408-198510

main41110-36520iBB21..39C; BB21..WC; BB26,31..(10S,44C)..WOC; BB31..29S; HB30,31,HDB30,HZB30,36..DLX..5F; HB36..WOC198702-199301

main41110-36530iBB26..WC; BB31..44C; BB36; HB30,36..WC; HB31,HDB30,HZB30..DLX..4FC; RB2#..WOC198702-199301

main41110-36540iHB31..DLX..4FC; RB2#..WC198702-199301

main41110-36550iBB21..26S..WOC198702-199301

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-16005×4iBB2#,3#,HB30,RB20198205-198408

main90105-16022×4iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198408-199301

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29315iBB20,21..26S..WOC198205-198702

main41201-39315iHB30,31..DLX..5F198305-198702

main41201-39325iBB3#..WC; RB20..WOC198205-198408

*AXC=L194,*FGR=35:6

main41201-39326iBB26,31,HB36..WC; BB36; HB30..DLX..WC; RB2#..WOC198408-198702

main41201-39335iRB2#..WC198205-198702

main41201-39455iHB30..WOC198205-198702

main41201-39525iHB30,HZB30..WOC198702-199301

main41201-39605iBB21..39C; BB21..WC; BB26,31,HB36..WOC; HB30,31..DLX..5F; HB36..WOC198702-199301

main41201-39615iBB26,31,HB36..WC; BB36; HB30..WC; HB31,HDB30,HZB30..DLX..4FC; RB2#..WOC198702-199301

main41201-39785iHB31..DLX..4FC; RB2#..WC198702-199301

main41201-39825iBB21..26S..WOC198702-199301

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40001iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-35023iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-48135iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35019iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35020iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35021iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35022iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35023iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35024iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35025iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35026iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35027iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35028iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35029iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35030iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35031iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35032iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35033iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35034iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35035iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90564-35036iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198408-199301

main90564-35037iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198408-199301

main90564-35038iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198408-199301

main90564-35039iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198408-199301

main90564-35040iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198408-199301

41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)

main90201-40551iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90201-40552iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90201-40553iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90201-40554iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90201-40555iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90201-40556iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90201-40557iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90201-40558iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90201-40559iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90201-40560iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main90201-40561iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-36032iBB2#,3#,HB30,RB20198205-198408

main41204-36050iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198408-199301

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-23002iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41204BNUT (FOR REAR DRIVE PINION)

main90179-22003iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-36010iBB2#,3#,HB30,RB20198205-198408

main41214-36030iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198408-199301

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-36020×6iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-14315×12iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-36040iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-36010iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-52043×2iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90101-12020×12iBB2#,3#,HB30,RB20198205-198408

main90105-12087×12iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198408-199301

41302BWASHER, SPRING(FOR REAR DIFFERENTIAL CASE)

main90201-12007×12iBB2#,3#,HB30,RB20198205-198408

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-36011×2iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-36011×2iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

SINGLE TYPE

main41317-36011×2iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-36020×2iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41341PINION, REAR DIFFERENTIAL

main41341-55012×4iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-35011×4iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-60010×2iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main41361-60020×2iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main41361-60030×2iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

main41361-60040×2iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

41371SPIDER, REAR DIFFERENTIAL

main41371-36011iBB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#198205-199301

9161160814

main91611-60814

9451201600

main94512-01600

31 parts on this diagram · 2 diagrams in section
