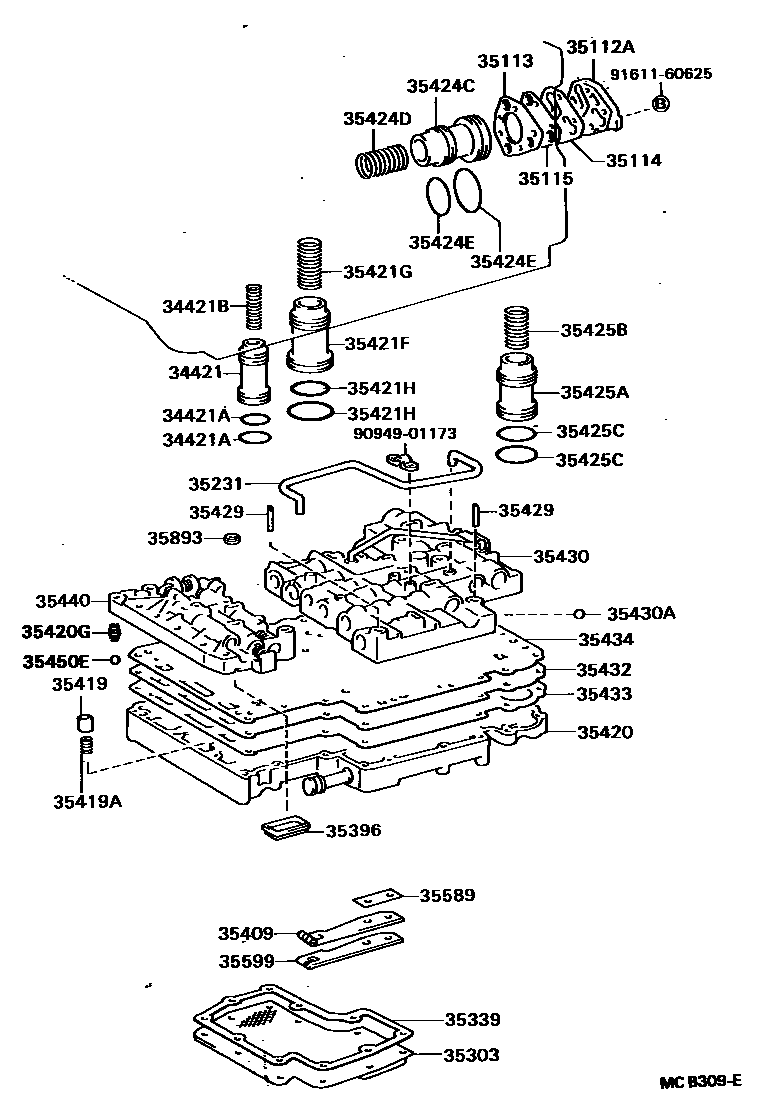

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1

34421PISTON, OVERDRIVE BRAKE ACCUMULATOR

main34421-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34421ARING, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

main90301-26003iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

UPR

main90301-29003iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

LWR

34421BSPRING (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)

main90501-32013iBB23,24..4FC198808-199301

main90501-33008iHB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35112ACOVER, FRONT CLUTCH ACCUMULATOR

main35112-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35113GASKET, FRONT CLUTCH ACCUMLATOR, NO.2

main35113-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35114GASKET, FRONT CLUTCH ACCUMLATOR, NO.1

main35114-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35115PLATE, FRONT CLUTCH ACCUMULATOR

main35115-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35231TUBE, LOCK UP SIGNAL VALVE APPLY

main35231-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

FR X RR VALVE BODY

main35231-36020iBB23,24,HB31,32..4FC198510-199301

RR,VALVE BODY

main35231-60010iHDB20,3#..4FC199001-199301

FR X RR VALVE BODY

35303STRAINER SUB-ASSY, OIL

main35303-36010iBB23,24,HB31,32..4FC198510-198904

main35303-36020iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198904-199301

35339GASKET, OIL STRAINER

main35339-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main35339-60020iHDB20,3#..4FC199001-199301

35396STRAINER, THROTTLE OIL

main35396-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-36010iBB23,24,HB31,32..4FC198510-199001

main35409-36020iBB23,24,HDB20,3#..4FC199001-199301

35419VALVE, CHECK, NO.1

main35419-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-10098iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main90501-12129iHDB20,3#..4FC199001-199301

35420BODY ASSY, LOWER VALVE

main35420-36012iBB23,24,HB31,32..4FC198510-198909

main35420-36013iBB23,24,HB32..4FC198909-199301

main35420-36030iHDB20,3#..4FC199001-199301

main35420-60012iHZB30,31..4FC199001-199301

35420GSPRING, BARREL SHAPED

main90503-03002×2iHB31..4FC198510-198701

main90503-04003×2iHB31,HZB30,31..4FC198701-199301

35421FPISTON, ACCUMULATOR, NO.2

main35402-36010iBB23,24,HB31,32..4FC198808-199301

main35402-60010iHDB20,3#..4FC199001-199006

main35402-60020iHDB20,3#,HZB30,31..4FC199006-199301

main35423-36010iHB31..4FC198510-198808

35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

main90501-18085iHDB20,3#..4FC199001-199301

LWR

main90501-20104iBB24..4FC198808-199301

LWR

main90501-22025iHZB30,31..4FC199001-199301

LWR

main90501-38004iHZB30,31..4FC199001-199301

UPR

main90501-40008iBB23..4FC198808-199301

main90501-40010iBB24..4FC198808-199301

UPR

main90501-40024iHDB20,3#..4FC199001-199006

UPR

main90501-40028iHDB20,3#..4FC199006-199301

UPR

35421HRING (FOR ACCUMULATOR PISTON NO.2)

main90301-29003iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

UPR

main90301-37004iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

LWR

35424CPISTON, C-1 ACCUMULATOR

main35424-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-27008iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-22003iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

UPR

main90301-24002iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

LWR

35425APISTON, C-2 ACCUMULATOR

main35425-36010iBB23,HB31,32..4FC198510-199301

main35425-36020iBB24,HDB20,3#,HZB30,31..4FC198808-199301

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-35009iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-28003iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

UPR

main90301-33006iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

LWR

35429TUBE, LINE PRESSURE

main35429-36010×2iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35430BODY ASSY, REAR UPPER VALVE

main35430-36020iHB31..4FC198510-199301

*AXC=L194

main35430-36030iHB31..4FC..29S198510-199301

*AXC=L204

main35430-36080iBB23,24..4FC198808-199301

main35430-36120iHDB20,3#..4FC199001-199301

main35430-60050iHZB30,31..4FC199001-199301

35430ABALL (FOR REAR UPPER VALVE BODY)

main90360-06004×7iBB23,24,HB31,32..4FC198510-199301

35432PLATE, VALVE BODY, NO.1

main35432-36011iBB23,24..4FC198808-199301

main35432-36020iHB31..4FC198510-198701

main35432-36021iHB31,32..4FC198701-199301

main35432-36030iHDB20,3#..4FC199001-199301

main35432-60011iHZB30,31..4FC199001-199301

35433GASKET, VALVE BODY, NO.1

main35433-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main35433-60020iHDB20,3#..4FC199001-199301

35434GASKET, VALVE BODY, NO.2

main35434-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main35434-60020iHDB20,3#..4FC199001-199301

35440BODY ASSY, FRONT UPPER VALVE

main35440-36011iBB23,24..4FC198808-199301

main35440-60011iHZB30,31..4FC199001-199301

main35440-60020iHB31..4FC198510-198701

main35440-60021iHB31,32..4FC198701-199301

main35440-60040iHDB20,3#..4FC199001-199301

35450EBALL (FOR UPPER VALVE BODY)

main90360-09001×2iHB31,HZB30,31..4FC198510-199301

35589SPACER, MANUAL DETENT SPRING

main35589-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35599COVER, MANUAL DETENT SPRING

main35599-36010iBB23,24,HB31,32..4FC198510-199001

main35599-60010iBB23,24,HDB20,3#,HZB30,31..4FC199001-199301

35893GASKET, CENTER SUPPORT APPLY

main35893-36010×4iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

9094901173

main90949-01173

9161160625

main91611-60625

38 parts on this diagram · 5 diagrams in section
