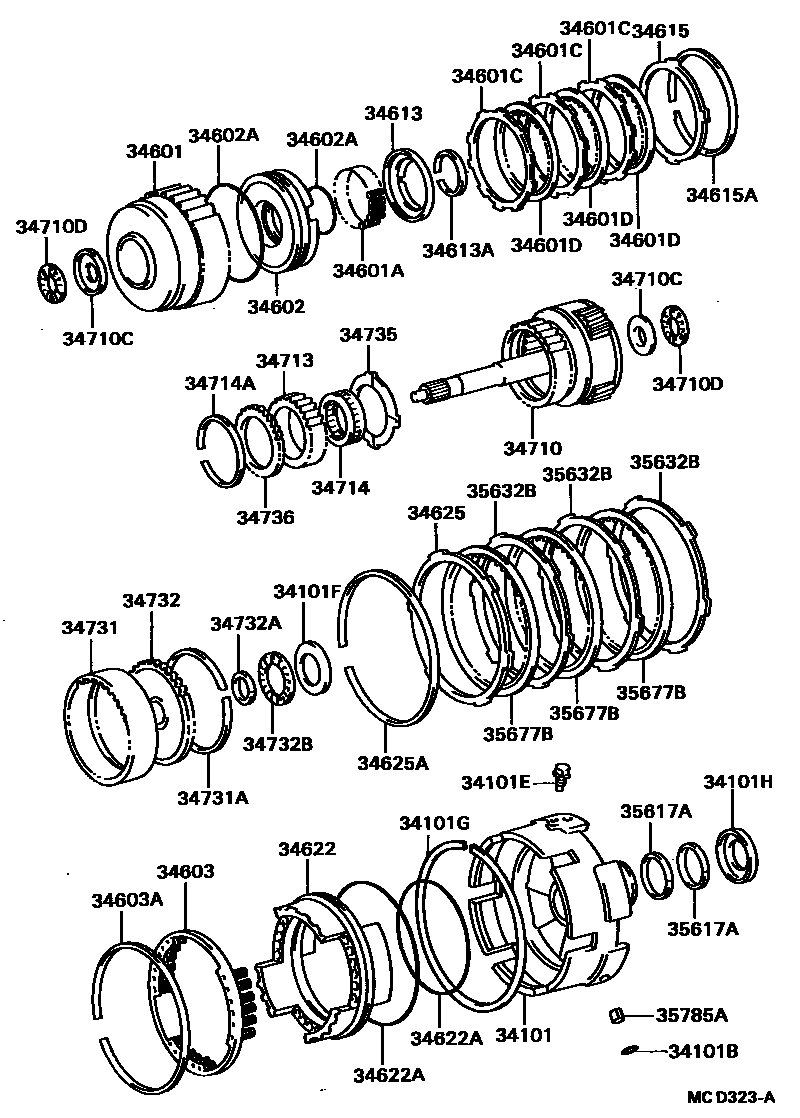

OVERDRIVE GEAR (ATM)

0001 1 0002 1

34101CASE SUB-ASSY, OVERDRIVE

main34101-60010iBB23,24,HB31,32..4FC198510-199301

main34101-60020iHZB30,31..4FC199001-199301

main34101-60030iHDB20,3#..4FC199001-199301

34101BRING, O (FOR OVERDRIVE CASE)

main90301-09008×3iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

main90105-10096×6iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34101FRACE, THRUST BEARING (FOR OVERDRIVE CASE FRONT)

main35789-36020×2iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34101GRING, HOLE SNAP (FOR OVERDRIVE CASE)

main90521-99043iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34101HRACE, THRUST BEARING (FOR OVERDRIVE CASE REAR)

main35789-36020iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main34601-60010iHDB20,3#..4FC199001-199301

34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

main90501-10087×24iBB23,24,HB31,32,HZB30,31..4FC198510-199301

34601CPLATE, CLUTCH (FOR OVERDRIVE)

main35634-36010×3iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34601DDISC, CLUTCH (FOR OVERDRIVE)

main35633-36020×3iBB23,24,HB31,32..4FC198510-199301

main35633-60040×3iHDB20,3#,HZB30,31..4FC199001-199301

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-59003iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

INNER

main90301-99027iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

OUTER

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-60010iHDB20,3#..4FC199001-199301

main35608-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90521-99021iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main90521-99109iHDB20,3#..4FC199001-199301

34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

main34613-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

34613ARING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SPRING)

main90520-50001iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34615FLANGE, OVERDRIVE CLUTCH

main35675-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main35675-60010iHDB20,3#..4FC199001-199301

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99017iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34622PISTON, OVERDRIVE BRAKE

main34622-60010iHDB20,3#..4FC199001-199301

main35621-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99030iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

OUTER

main90301-99031iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

INNER

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-60010iHDB20,3#..4FC199001-199301

main35676-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99021iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main90521-99109iHDB20,3#..4FC199001-199301

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main34710-60010iHDB20,3#..4FC199001-199301

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main35789-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

RR

main35789-36070iBB23,24,HB31,32,HZB30,31..4FC198510-199301

FR

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23001iHDB20,3#..4FC199001-199301

RR

main90374-25004iBB23,24,HB31,32,HZB30,31..4FC198510-199301

RR

main90374-28007iBB23,24,HB31,32,HZB30,31..4FC198510-199301

FR

main90374-28010iHDB20,3#..4FC199001-199301

FR

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-90002iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34731GEAR, OVERDRIVE PLANETARY RING

main34731-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main34731-60010iHDB20,3#..4FC199001-199301

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99019iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main90521-99110iHDB20,3#..4FC199001-199301

34732FLANGE, OVERDRIVE PLANETARY RING GEAR

main34732-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199003

main34732-36011iBB23,24,HB31,HZB30,31..4FC199003-199301

main34732-60010iHDB20,3#..4FC199001-199301

34732ARING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main35712-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34732BBEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANGE)

main90374-34001iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34737-36010iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main34737-60010iHDB20,3#..4FC199001-199301

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34738-36010iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-36020×2iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

35632BPLATE, BRAKE (FOR OVERDRIVE)

main35632-36010×3iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main35632-60010×2iHDB20,3#..4FC199001-199301

T=2.4

main35632-60020iHDB20,3#..4FC199001-199301

T=4.0

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main35633-36010×3iBB23,24,HB31,32,HZB30,31..4FC198510-199301

main35633-60010×3iHDB20,3#..4FC199001-199301

35785ARETAINER, OVERDRIVE CASE RING

main35785-36010×3iBB23,24,HB31,32,HDB20,3#,HZB30,31..4FC198510-199301

39 parts on this diagram · 2 diagrams in section
