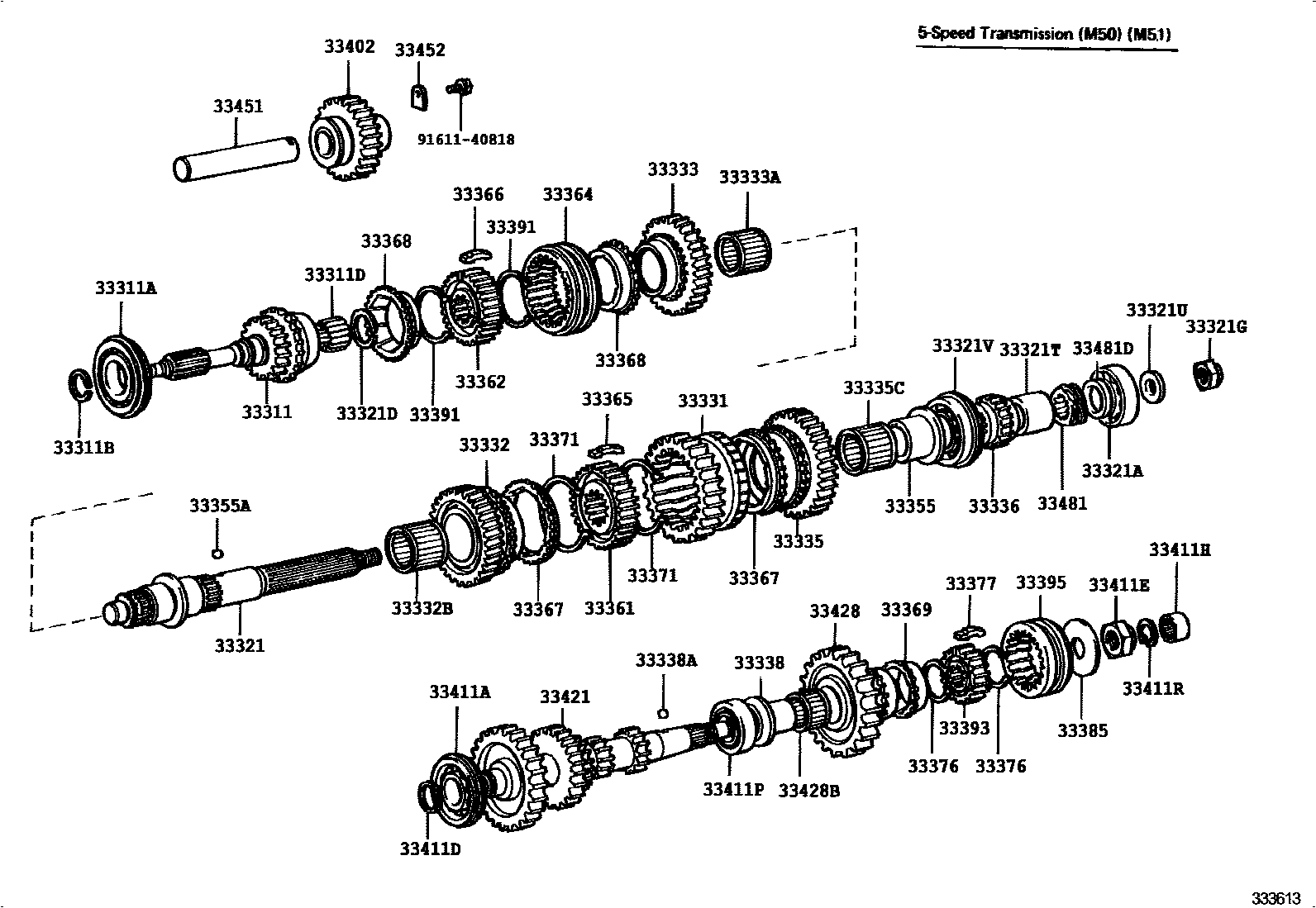

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1

33311SHAFT, INPUT

main33301-36050iBB2#,3#,RB2#..5F198510-199001

main33301-36051iBB2#,31,RB20199001-199301

main33301-36060iHB3#..5F198510-199001

main33301-36090iHZB3#..5F199001-199301

main33301-36100iHDB3#..5F199001-199301

main33311-36062iBB2#,3#,RB2#198205-198510

main33311-60070iHB30198205-198211

main33311-60090iHB3#198211-198510

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-45010iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90365-35001iBB2#,3#,RB2#198205-198510

main90365-40002iHB3#198205-198510

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-33107iBB2#,3#,RB2#198205-198510

main90520-33108iBB2#,3#,RB2#198205-198510

main90520-33109iBB2#,3#,RB2#198205-198510

main90520-33132iBB2#,3#,RB2#198205-198510

main90520-33133iBB2#,3#,RB2#198205-198510

main90520-33134iBB2#,3#,RB2#198205-198510

main90520-36015iHB3#198205-198510

main90520-36016iHB3#198205-198510

main90520-42002iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90520-42003iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90520-42004iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90520-42005iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90520-42006iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90520-42007iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

33311DBEARING, INPUT SHAFT

main90361-06049×17iBB2#,3#,HB3#,RB2#198205-198510

main90361-08004×12iBB2#,3#,HB3#,RB2#..5F198510-199001

main90361-09001×10iBB2#,31,HDB3#,HZB3#,RB20199001-199301

33321SHAFT, OUTPUT

main33321-36051iBB20,30,RB20198205-198207

main33321-36052iBB2#,3#,RB2#198207-198510

main33321-36060iHB3#198205-198510

main33321-36070iBB2#,3#,HB3#,RB2#..5F198510-198810

main33321-36071iBB2#,HB3#,RB20..5F198810-199001

main33321-36090iBB2#,3#,HDB3#,HZB3#,RB2#..5F199001-199301

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-32011iBB2#,3#,RB2#198205-198508

main90363-40034iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198508-199301

main97103-06207iHB3#198205-198510

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-36250iBB2#,3#,HB3#,RB2#198205-198510

main90520-36251iBB2#,3#,HB3#,RB2#198205-198510

main90520-36252iBB2#,3#,HB3#,RB2#198205-198510

main90520-36253iBB2#,3#,HB3#,RB2#198205-198510

main90520-36254iBB2#,3#,HB3#,RB2#198205-198510

main90520-36255iBB2#,3#,HB3#,RB2#198205-198510

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-20001iBB2#,3#,RB2#198205-198510

main90179-22005iHB3#198205-198510

main90179-24002iBB2#,3#,HB3#,RB2#..5F198510-199001

main90179-24008iBB2#,31,HDB3#,HZB3#,RB20..5F199001-199301

33321TSPACER (FOR OUTPUT SHAFT)

main90560-32003iBB2#,3#,RB2#198205-198510

main90560-35006iHB3#198205-198510

33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)

main90201-20010iBB2#,3#,RB2#198205-198510

main90201-22005iHB3#198205-198510

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90363-35011iBB2#,3#,RB20198205-198408

main90363-35018iBB2#,3#,RB2#198408-198510

main90363-40018iHB3#198205-198510

33331GEAR, REVERSE

main33031-36010iBB2#,3#,HB3#,RB2#..5F198510-199001

main33031-36020iBB2#,31,HDB3#,HZB3#,RB20..5F199001-199301

main33331-36024iBB2#,3#,RB2#198205-198510

33332GEAR, 2ND

main33033-36020iBB2#,3#,HB3#,RB2#..5F198510-199001

N=34

main33033-36021iBB2#,31,HZB3#,RB20..5F199001-199301

main33033-36040iHDB3#..5F199001-199301

main33332-36020iBB2#,3#,RB2#198205-198510

N=33

main33332-60020iHB3#198205-198510

N=38

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-44065iHB3#198205-198510

main90364-46003iBB2#,3#,RB2#198208-198510

main90364-46053iBB20,30,RB20198205-198208

main90364-54001iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

33333GEAR, 3RD

main33034-36020iBB2#,3#,HB3#,RB2#..5F198510-199001

main33034-36021iBB2#,31,HZB3#,RB20..5F199001-199301

main33034-36040iHDB3#..5F199001-199301

main33333-36021iBB2#,3#,RB2#198205-198510

N=28

main33333-36030iHB3#198305-198510

main33333-60030iHB30198205-198305

N=33

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-43001iBB2#,3#,RB20198211-198408

NSK

main90364-43003iBB20,30,RB20198208-198211

NSK

main90364-43004iBB2#,3#,RB2#198208-198510

KOYO

main90364-43042iBB20,30,RB20198205-198208

main90364-47004iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

33335GEAR, 1ST

main33032-36020iBB2#,3#,HB3#,RB2#..5F198510-199001

N=41

main33032-36021iBB2#,31,HZB3#,RB20..5F199001-199301

main33032-36040iHDB3#..5F199001-199301

main33335-36050iBB2#,3#,RB2#198205-198510

N=40

main33335-60020iHB3#198205-198510

N=41

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-44065iHB3#198205-198510

main90364-46003iBB2#,3#,RB2#198208-198510

main90364-46053iBB20,30,RB20198205-198208

main90364-58001iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

33336GEAR, 5TH

main33036-36010iBB23,24,HB3#..5F198510-199001

N=24

main33036-36011iBB23,24,HZB3#..5F199001-199301

main33036-36020iBB21,26,31,RB20198510-199001

main33036-36021iBB21,26,31,RB20199001-199301

main33036-36030iHDB3#..5F199001-199301

main33336-36030iBB20,30,RB20198205-198207

N=18

main33336-36031iBB2#,3#,RB2#198207-198510

N=18

main33336-36040iHB3#198205-198510

N=22

33338BUSH OR BEARING, 5TH GEAR

main33338-36020iBB2#,3#,RB2#198205-198510

33338ABALL (FOR GEAR BUSH)

main90360-06004iBB2#,3#,RB2#198205-198510

33355RACE, 1ST GEAR BEARING INNER

main33355-36010iBB2#,3#,RB2#198205-198510

33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

main90360-06004iBB2#,3#,RB2#198205-198510

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-36010iBB2#,3#,RB2#198205-198510

main33361-36020iBB2#,3#,HB3#,RB2#..5F198510-198905

main33361-36021iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198905-199301

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-36021iBB2#,3#,HB3#,RB2#198205-198510

main33362-36030iBB2#,3#,HB3#,RB2#..5F198510-198905

main33362-36031iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198905-199008

main33362-36032iBB2#,3#,HB31,HDB3#,HZB3#,RB2#..5F199008-199301

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-36051iBB2#,3#,HB3#,RB2#198205-198510

main33364-36060iBB2#,3#,HB3#,RB2#..5F198510-198712

main33364-36061iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198712-199301

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-36010×3iBB2#,3#,RB2#198205-198510

main33365-36020×3iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-36020×3iBB2#,3#,HB3#,RB2#198205-198510

main33366-36030×3iBB2#,3#,HB3#,RB2#..5F198510-198712

main33366-36031×3iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198712-199008

main33366-36032×3iBB2#,3#,HB31,HDB3#,HZB3#,RB2#..5F199008-199301

33367RING, SYNCHRONIZER, NO.1

main33367-36030iBB2#,3#,RB2#198205-198510

2ND

main33367-36040iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

1ST

main33367-40012iBB2#,3#,RB2#198205-198510

1ST

33368RING, SYNCHRONIZER, NO.2

main33368-20012×2iBB2#,3#,HB3#,RB2#198205-198509

main33368-36040×2iBB2#,3#,HB3#,RB2#..5F198509-198712

main33368-36041×2iBB2#,3#,HB3#,RB2#..5F198712-198806

main33368-36042×2iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198806-199008

main33368-36050×2iBB2#,3#,HB31,HDB3#,HZB3#,RB2#..5F199008-199301

33369RING, SYNCHRONIZER, NO.3

main33367-14010iBB2#,3#,RB2#198205-198510

main33368-20012iHB3#198205-198510

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-36020×2iBB2#,3#,RB2#198205-198510

main33371-36030×2iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)

main33371-14010×2iBB2#,3#,RB2#198205-198510

main33391-22020×2iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main33391-36010×2iHB3#198205-198510

33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)

main33366-14010×3iBB2#,3#,RB2#198205-198510

main33366-20011×3iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main33394-36011×3iHB3#198205-198510

33385RETAINER, SHIFTING KEY

main33385-36020iBB2#,3#,RB20198205-198305

main33385-36030iBB2#,3#,RB2#198305-198510

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-20010×2iBB2#,3#,HB3#,RB2#198205-198510

main33391-36020×2iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199008

main33391-36021×2iBB2#,3#,HB31,HDB3#,HZB3#,RB2#..5F199008-199301

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-36020iBB2#,3#,RB2#198205-198510

main33393-36040iBB2#,3#,HB3#,RB2#..5F198510-198910

main33393-36050iHDB3#,HZB3#..5F199001-199301

33395SLEEVE, TRANSMISSION HUB, NO.3

main33364-14010iBB2#,3#,RB2#198205-198510

main33395-36010iHB3#198205-198510

main33395-36020iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-36030iBB2#,3#,RB2#198205-198510

N=27

main33402-36050iHB3#198205-198510

main33402-36060iBB2#,3#,HB3#,HZB3#,RB2#..5F198510-199301

main33402-36080iHDB3#..5F199001-199301

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90365-30004iBB2#,3#,RB2#198205-198510

main90365-32002iHB3#198205-198510

main90365-37002iBB2#,3#,HB3#,RB2#..5F198510-199001

main90365-37005iBB2#,31,HDB3#,HZB3#,RB20..5F199001-199301

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90520-28246iBB2#,3#,RB2#198205-198510

main90520-28248iBB2#,3#,RB2#198205-198510

main90520-28249iBB2#,3#,RB2#198205-198510

main90520-30214iHB3#198205-198510

main90520-30216iHB3#198205-198510

main90520-30218iHB3#198205-198510

33411ENUT(FOR COUNTER GEAR SHAFT)

main90179-26002iBB2#,3#,HB3#,RB2#198205-198510

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90363-30048iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90364-22003iBB20,21,30,31,RB20198205-198510

main90365-40001iHB3#198205-198510

33411PBEARING, COUNTERSHAFT CENTER

main90365-30014iBB2#,3#,RB2#198205-198510

33411RRING, SNAP, COUNTER GEAR REAR BEARING

main90520-26030iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90520-26031iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90520-26032iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90520-26033iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90520-26034iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90520-26035iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main90521-38117iBB2#,3#,RB2#198205-198510

33421GEAR, COUNTER

main33411-36061iBB2#,3#,RB2#198205-198510

N=37,30,21,13,14

main33421-36040iHB30198205-198305

N=43,36,24,14,14

main33421-36070iHB3#198305-198510

N=43,34,24,14,14

main33421-36120iBB23,24,HB3#..5F198510-199001

main33421-36121iBB23,24,HZB3#..5F199001-199301

main33421-36140iBB21,26,3#,RB2#198510-199001

main33421-36141iBB21,26,31,RB20199001-199301

main33421-36170iHDB3#..5F199001-199301

33428GEAR, COUNTERSHAFT 5TH

main33046-36011iHB3#198205-198510

N=47

main33428-36030iBB2#,3#,RB2#198205-198505

N=40

main33428-36031iBB2#,3#,RB2#198505-198510

33428BBEARING (FOR COUNTER 5TH GEAR)

main90364-32007iHB3#198205-198510

main90364-38001iBB2#,3#,RB2#198205-198510

33451SHAFT, REVERSE IDLER GEAR

main33451-36022iHB3#198205-198510

main33451-36030iBB2#,3#,RB2#198205-198510

main33451-36040iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

33452STOPPER, REVERSE IDLER GEAR SHAFT

main33452-36020iBB2#,3#,RB20198205-198310

main33452-36030iBB2#,3#,RB2#198310-198510

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-36080iRB2#198205-198510

N=4

main33481-36090iBB20,21,3#; BB26..WC198205-198510

N=5

main33481-36120iHB3#198205-198510

N=5

main33481-36150iBB21,HB30,32,36..WC; HB31; HDB31;HZB30..5F198510-199301

main33481-36160iBB21,HB30,36..WC; BB26,3#,RB2#198510-199301

33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)

main33487-36040iBB2#,3#,RB2#198205-198510

main33487-36050iHB3#198205-198510

main33487-36070iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

9161140818

main91611-40818

53 parts on this diagram · 3 diagrams in section
