SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29045iBB20,21..39C198205-198510

main33482-29045iBB30,31198205-198510

main33482-29055iBB20,21..26S..WOC198205-198510

main33482-39085iHB36..WOC198205-198510

main33482-39095iRB2#..WOC198205-198510

main33482-39105iRB2#..WC198205-198510

main33482-39215iBB21,HB30,HZB30..WOC198510-199301

main33482-39225iHB30,HZB30..WC198510-199301

main33482-39235iBB26,3#,HZB36198510-199301

main33482-39245iRB2#..WOC198510-199301

main33482-39255iRB2#..WC198510-199301

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iBB2#,3#,HB3#,RB2#198205-198510

main33404-36020iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198205-199301

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198205-199301

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198205-199301

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iBB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F198510-199301

main33485-36010iBB2#,3#,HB3#,RB2#198205-198510

9161160610

main91611-60610

9161160814

main91611-60814

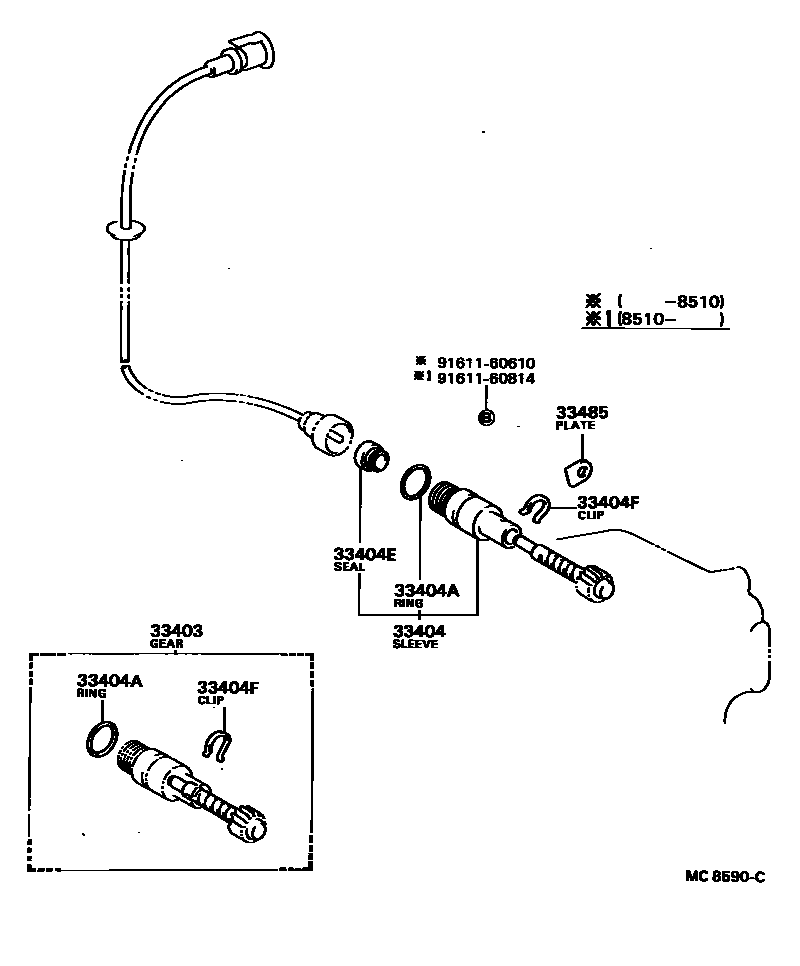

8 parts on this diagram · 1 diagram in section
