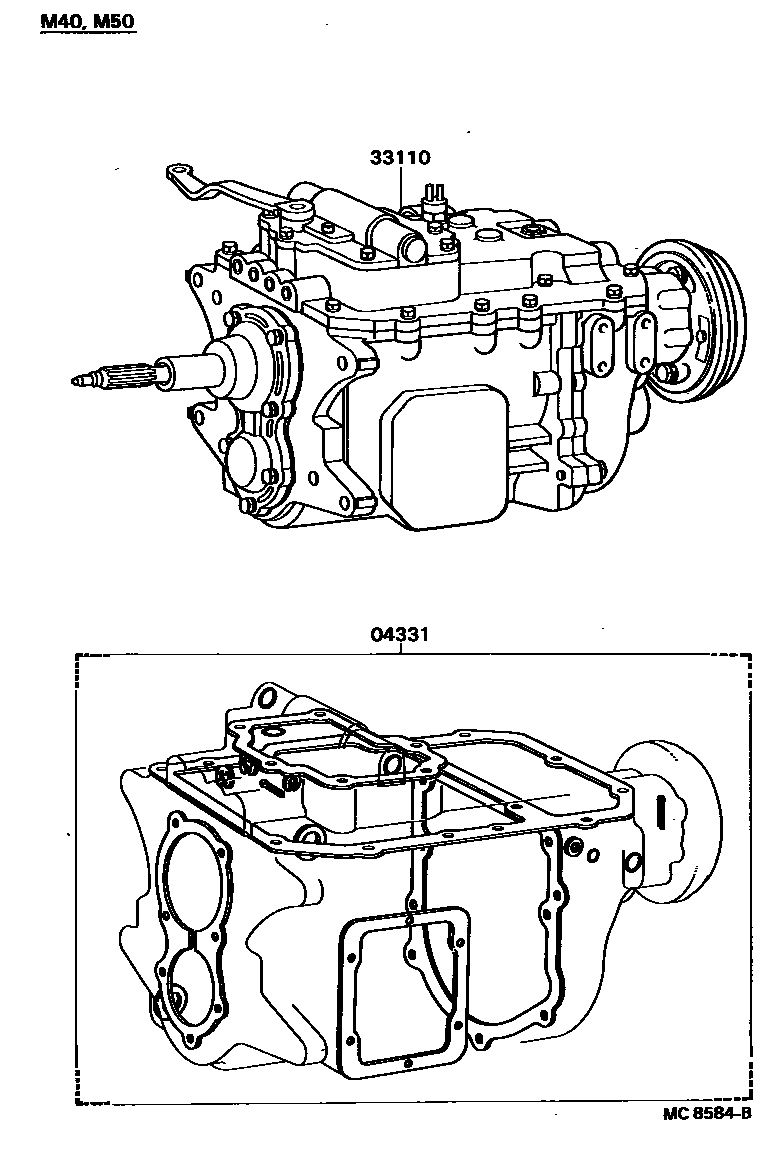

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0003 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36023iHB30198205-198408

main04331-36024iHB3#198408-198510

main04331-36041iBB2#,3#,RB2#198205-198510

main04331-36070iBB2#,3#,HB3#,RB2#..5F198510-199001

main04331-36071iBB2#,3#,HB31,HDB3#,HZB3#,RB2#..5F199001-199301

33110TRANSMISSION ASSY, MANUAL

main33110-3C121iHB30..CBU198205-198305

main33110-3C160iBB2#..26S..WOC198205-198408

main33110-3C170iBB2#..39C; BB2#..WC198205-198408

main33110-3C210iRB20..WOC198205-198408

main33110-3C220iRB20..WC198205-198408

main33110-3C260iBB2#..26S..WOC198205-198408

W/EXHAUST BRAKE

main33110-3C270iBB2#..39C; BB2#..WC; BB3#198205-198408

W/EXHAUST BRAKE

main33110-3E440iBB21,31..(26S,44C)..WOC198510-198808

W/EXHAUST BRAKE

main33110-3E450iBB2#..WC; BB21..39C; BB31198510-198808

W/EXHAUST BRAKE

main33110-3E470iBB21,31..(26S,44C)..WOC198510-198808

main33110-3E480iBB2#..WC; BB21..39C; BB31198510-198808

main33110-3E490iRB2#198510-198808

main33110-3E500iHB30,31..5F; HB36..WOC198510-198808

main33110-3E510iHB30..WOC; HB36..WC198510-198808

main33120-3B750iHB30..IV198205-198305

main33120-3B840iHB30..20S,26S; HB30..IV; HB30..WOC198305-198408

SMG R=18:5

main33120-3B850iHB30..29S..WC198305-198408

SMG R=19:5

main33120-3C900iHB3#198408-198510

main33120-3C902iBB21,3#; BB26..WOC198408-198510

main33120-3C903iBB26..WC; RB2#198408-198510

main33120-3C904iBB21,3#; BB26..WOC198408-198510

W/EXHAUST BRAKE

main33120-3C905iBB26..WC198408-198510

W/EXHAUST BRAKE

main33120-3E030iBB21,31..(26S,44C)..WOC198808-199001

main33120-3E031iBB21,31..(26S,44C)..WOC199001-199301

main33120-3E040iBB21,31..(26S,44C)..WOC198808-199001

W/EXHAUST BRAKE

main33120-3E041iBB21,31..(26S,44C)..WOC199001-199301

W/EXHAUST BRAKE

main33120-3E050iBB21,26,31..(10S,29S,39C)..WOC; BB21,26,31..WC198808-199001

main33120-3E051iBB21,26,31..(10S,29S,39C)..WOC; BB21,26,31..WC199001-199301

main33120-3E060iBB21,26,31..(10S,29S,39C)..WOC; BB21,26,31..WC198808-199001

W/EXHAUST BRAKE

main33120-3E061iBB21,26,31..(10S,29S,39C)..WOC; BB21,26,31..WC199001-199301

W/EXHAUST BRAKE

main33120-3E070iBB24..5F198808-199301

main33120-3E090iBB23..5F198808-199301

main33120-3E110iHB3#..5F198808-199001

main33120-3E111iHZB30..5F199001-199301

main33120-3E130iHB30; HB36198808-199001

*AXC=L194

main33120-3E131iHZB31..5F199001-199301

main33120-3E140iRB20198808-199301

main33120-3E310iHDB30..5F; HDB31..5F..(20S,26S)199001-199301

main33120-3E320iHDB31..5F..29S199001-199301

2 parts on this diagram · 3 diagrams in section
