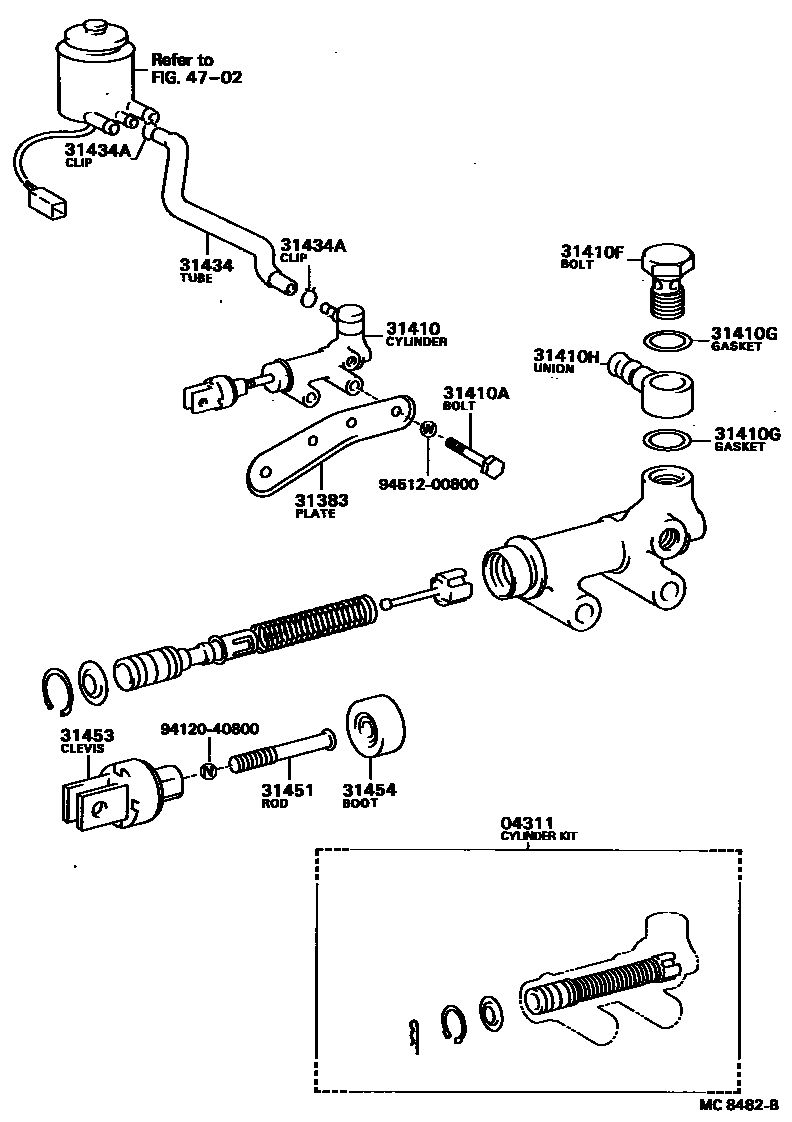

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12040iBB2#,3#,HB30,36,RB2#198611-198707

main04311-12041iBB2#,3#,HB30,36,RB2#..5F198707-199001

main04311-20080iRB20199001-199301

main04311-30080iBB2#,3#,HB30,RB20198205-198408

main04311-36030iBB2#,3#,HB30,36,RB2#198408-198611

main04311-36060iHB31..5F198510-198704

main04311-36061iHB31,32..5F198704-199001

main04311-36120iBB2#,31,HDB3#,HZB3#..5F199001-199301

31383PLATE, PEDAL SUPPORT SHAFT SET

main55136-90B00iBB20,26,3#,HB30,36,RB2#..CBU198205-199001

31410CYLINDER ASSY, CLUTCH MASTER

main31401-36020iHB31..5F198510-198704

main31401-36021iHB31..5F198704-198710

main31401-36022iHB31,32..5F198710-199001

main31401-36070iBB2#,31,HDB3#,HZB3#..5F199001-199301

main31420-36040iBB20,30,HB30,RB20198205-198207

main31420-36041iBB2#,3#,HB30,RB20198207-198408

main31420-36060iBB2#,3#,HB30,36,RB2#198408-198707

main31420-36061iBB2#,3#,HB30,36,RB2#..5F198707-199001

main31420-36160iRB20199001-199301

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91121-40870×2iBB2#,3#,HB30,36,RB2#..5F198205-199301

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iBB20,21,26,3#,HB30,36,RB2#198205-199001

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242×2iBB2#,3#,HB30,36,RB2#..5F198205-199001

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main31416-36010iHB31,32..5F198510-199001

main90405-10007iBB2#,3#,HB30,36,RB2#..5F198205-199001

31434TUBE, CLUTCH RESERVOIR

main31434-36070iRB20199001-199301

main31434-36160iHB31,32..5F198510-199001

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90467-14001×2iBB2#,3#,HB30,36,RB2#..5F198704-199301

main90467-14044×2iBB2#,3#,HB30,36,RB2#198205-198704

main96132-30800×2iHDB3#,HZB3#..5F199001-199301

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iBB2#,3#,HB30,36,RB2#..5F198611-199001

main31451-30060iBB2#,3#,HB30,36,RB2#198205-198611

main31451-36040iRB20199001-199301

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-36010iBB20,30,HB30,RB20198205-198207

main31404-36011iBB2#,3#,HB30,36,RB2#..5F198207-199001

main31404-36050iRB20199001-199301

main31453-22010iHB31..5F198510-198610

main31453-35010iHB31,32..5F198610-199001

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iBB2#,3#,HB30,36,RB2#..5F198205-199301

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9412040800

main94120-40800

9451200800

main94512-00800

15 parts on this diagram · 4 diagrams in section
