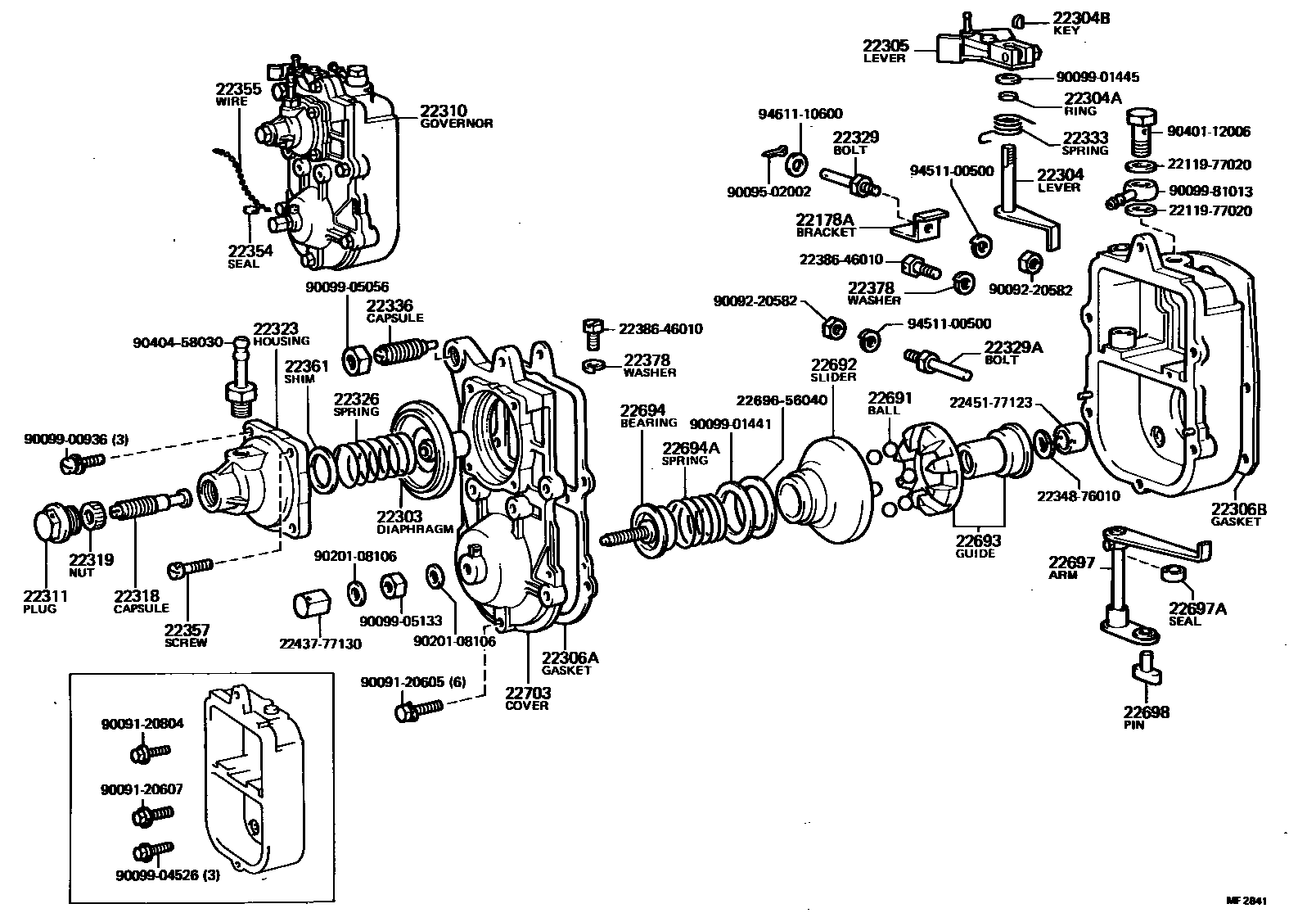

PNEUMATIC GOVERNOR

0001 1 0002 1

22178ABRACKET, DIAPHRAGM CONNECTING

main22178-48024i2H..HB30,36198205-199001

main22178-56011i3B..BB20,30198205-198302

22303DIAPHRAGM SUB-ASSY, GOVERNOR

main22303-47010i2H..HB30,36; 3B..BB20,30198205-198808

22304LEVER SUB-ASSY, INJECTION PUMP, NO.3

main22408-68010i2H..HB30,36; 3B..BB20,30198205-198808

22304ARING, O(FOR NO.3 LEVER)

main96710-01008i2H..HB30,36; 3B..BB20,30198205-198708

main96711-19008i2H..HB30,36198708-198808

22304BKEY(FOR NO.3 LEVER)

main90099-13001i2H..HB30,36; 3B..BB20,30198205-198808

22305LEVER SUB-ASSY, INJECTION PUMP, NO.1

main22308-56041i3B..BB20,30198205-198302

main22308-68020i2H..HB30,36198205-199001

22306AGASKET(FOR GOVERNOR HOUSING)

main22442-77130i2H..HB30,36; 3B..BB20,30198205-198808

22306BGASKET(FOR INJECTION PUMP HOUSING)

main22442-77131i2H..HB30,36; 3B..BB20,30198205-198808

22310GOVERNOR ASSY, INJECTION PUMP

main22320-58010i3B..BB20,30198205-198302

main22320-68020i2H..HB30,36198205-199001

22311PLUG, DIAPHRAGM HOUSING SEALING SCREW

main22311-77130i2H..HB30; 3B..BB20,30198205-198302

main22457-58010i2H..HB30,36198302-199001

22318CAPSULE, IDLING

main22318-48030i2H..HB30,36; 3B..BB20,30198205-198808

22319NUT, GOVERNOR IDLING SPRING SET

main22319-77010i2H..HB30,36; 3B..BB20,30198205-198808

22323HOUSING, GOVERNOR DIAPHRAGM

main22323-58010i2H..HB30,36198302-199001

main22323-77010i2H..HB30; 3B..BB20,30198205-198302

22326SPRING, GOVERNOR MAIN

main22326-48030i2H..HB30,36198205-199001

main22326-58010i3B..BB20,30198205-198302

22329BOLT, DIAPHRAGM CONNECTING

main22329-77021i2H..HB30,36; 3B..BB20,30198205-198808

22329ABOLT, DIAPHRAGM CONNECTING, NO.2

main22329-77130i2H..HB30,36; 3B..BB20,30198205-198808

22333SPRING, DIAPHRAGM STOP LEVER RETURN

main22333-56040i3B..BB20,30198205-198302

main22333-77130i2H..HB30,36198205-199001

22336CAPSULE, FULL STOP

main22336-46010i3B..BB20,30198205-198302

main22336-68010i2H..HB30,36198205-199001

22354SEAL, LEAD

main22354-77050×3i2H..HB30,36; 3B..BB20,30198205-198808

22355WIRE, GOVERNOR HOUSING SEAL

main22355-36010×3i2H..HB30,36; 3B..BB20,30198205-198808

22357SCREW, DIAPHRAGM HOUSING SET

main90099-04945i2H..HB30,36; 3B..BB20,30198205-198808

22361SHIM, MAIN SPRING

main22361-76010×2i2H..HB30,36198808-199001

main22362-76010×2i2H..HB30,36; 3B..BB20,30198205-198808

main22363-76010×2i2H..HB30,36; 3B..BB20,30198205-198808

main22364-76010×2i2H..HB30,36; 3B..BB20,30198205-198808

22378WASHER, DRAIN SCREW

main22113-77090×2i2H..HB30,36198205-199001

main22378-76010×2i3B..BB20,30198205-198302

22691BALL, SPEED CONTROL

main90099-12010×6i2H..HB30,36; 3B..BB20,30198205-198808

22692SLIDER(FOR SPEED CONTROL)

main22692-56041i3B..BB20,30198205-198302

main22692-77131i2H..HB30,36198205-199001

22693GUIDE, BALL

main22693-77130i2H..HB30,36; 3B..BB20,30198205-198808

22694BEARING SUB-ASSY

main22694-77130i2H..HB30,36; 3B..BB20,30198205-198808

22694ASPRING, SPEED CONTROL

main22449-48030i2H..HB30,36; 3B..BB20,30198205-198808

22697ARM SUB-ASSY

main22697-56041i3B..BB20,30198205-198302

main22697-77131i2H..HB30,36198205-199001

22697ASEAL, OIL(FOR NO.3 LEVER)

main85613-31010i2H..HB30,36; 3B..BB20,30198205-198808

22698PIN, SHIFTING

main22698-77131i2H..HB30,36; 3B..BB20,30198205-198808

22703COVER, GOVERNOR

main22703-56040i3B..BB20,30198205-198302

main22703-68010i2H..HB30,36198205-199001

2211977020WASHER, AIR BLEEDER NIPPLE

main22119-77020

2234876010BUSH, GEAR SHAFT

main22348-76010

2238646010SCREW(FOR INJECTION PUMP GOVERNOR)

main22386-46010

2243777130ARM, SPRING

main22437-77130

2245177123ADAPTER

main22451-77123

2269656040SEAT, INJECTION PUMP SPRING, NO.1

main22696-56040

9009120605

main90091-20605

9009120607

main90091-20607

9009120804

main90091-20804

9009220582

main90092-20582

9009502002

main90095-02002

9009900936

main90099-00936

9009901441

main90099-01441

9009901445

main90099-01445

9009904526

main90099-04526

9009905056

main90099-05056

9009905133

main90099-05133

9009981013

main90099-81013

9020108106

main90201-08106

9040112006

main90401-12006

9040458030

main90404-58030

9451100500

main94511-00500

9461110600

main94611-10600

55 parts on this diagram · 2 diagrams in section
