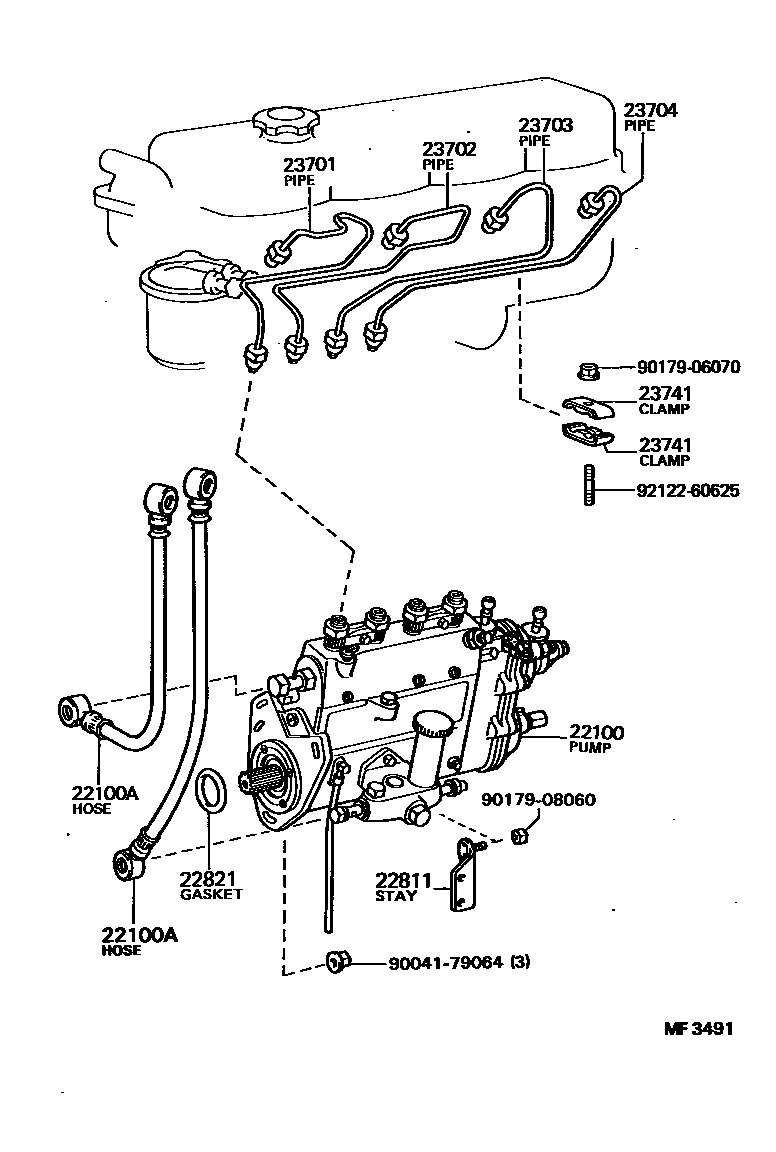

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-17200i1HZ..HZB3#..5F199001-199301

main22100-17210i1HZ..HZB3#..5F199001-199301

COLD SPEC

sub22100-17110

main22100-17230i1HZ..HZB30,31..4FC199001-199301

sub22100-17120

main22100-17240i1HZ..HZB30,31..4FC199001-199301

COLD SPEC

sub22100-17130

main22100-17260i1HDT..HDB20,3#..4FC199001-199301

main22100-17270i1HDT..HDB3#..5F199001-199301

main22100-58011i3B..BB20,30198205-198302

main22100-58200i3B..BB2#,3#..WOC198302-198611

main22100-58201i3B..BB2#,3#..WOC198611-198808

sub22100-58211

main22100-58202i3B..BB21,26,31198808-199301

sub22100-58840

main22100-58210i3B..BB2#,31..WC198302-198501

sub22100-58200

sub88031-30060

main22100-58211i3B..BB2#,31..WC198611-198808

main22100-58480i14B..BB23,24..5F198808-199301

sub22100-58580

main22100-58510i14B..BB23,24..5F198808-199301

COLD SPEC

sub22100-58610

main22100-58770i14B..BB23,24..4FC198808-199301

main22100-68070i2H..HB3#198205-198411

sub22100-68071

main22100-68071i2H..HB30,36198411-199001

main22100-68080i2H..HB3#198205-198411

COLD SPEC

sub22100-68081

main22100-68081i2H..HB30,36198411-199001

COLD SPEC

main22100-68150i12HT..HB31..5F198510-198807

main22100-68160i12HT..HB31..5F198510-198807

COLD SPEC

main22100-68170i12HT..HB31..4FC198510-198807

main22100-68180i12HT..HB31,32..4FC198510-199001

COLD SPEC

main22100-68210i12HT..HB31,32..5F198807-199001

main22100-68220i12HT..HB31,32..5F198807-199001

COLD SPEC

main22100-68230i12HT..HB31,32..4FC198807-199001

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23801-56040i3B..BB20,30198205-198302

L=312

main23801-68030i12HT..HB31,32198510-199001

main23801-68030i2H..HB30,36198205-199001

main23802-56040i3B..BB20,30198205-198302

main23802-68020i2H..HB30,36198205-199001

main23906-68010i12HT..HB31,32198510-199001

main95332-08030i3B..BB21,31198302-198408

sub95333-08030

main95332-10030i1HZ..HZB3#199001-199102

main95332-10030i1HZ..HZB3#199102-199301

main95332-12026i1HDT..HDB20,3#199001-199102

sub95337-12026

main95332-12028i1HDT..HDB20,3#199102-199301

22811STAY, INJECTION PUMP, NO.1

main22811-17010i1H#..HDB20,3#,HZB3#199001-199301

sub22811-17011

main22811-56011i3B..BB20,30198205-198302

main22811-56050i14B,3B..BB2#,31198808-199301

main22811-58020i3B..BB2#,3#198302-198808

main22811-68010i2H..HB30,36198205-199001

main22811-68020i12HT..HB31,32198510-199001

22821GASKET, INJECTION PUMP

main90301-49003i14B,3B..BB2#,3#198302-199301

main90301-77001i3B..BB20,30198205-198302

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-17010i1HZ..HZB3#199001-199301

main23701-17020i1HDT..HDB20,3#199001-199301

main23701-56030i3B..BB20,30198205-198302

main23701-56040i3B..BB2#,3#198302-198808

main23701-56080i14B..BB23,24198808-199301

main23701-58010i3B..BB21,26,31198808-199301

main23701-68010i2H..HB30,36198205-199001

main23701-68020i12HT..HB31,32198510-199001

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-17010i1HZ..HZB3#199001-199301

main23702-17020i1HDT..HDB20,3#199001-199301

main23702-56030i3B..BB20,30198205-198302

main23702-56040i3B..BB2#,3#198302-198808

main23702-56080i14B..BB23,24198808-199301

main23702-58010i3B..BB21,26,31198808-199301

main23702-68010i2H..HB30,36198205-199001

main23702-68020i12HT..HB31,32198510-199001

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-17010i1HZ..HZB3#199001-199301

main23703-17020i1HDT..HDB20,3#199001-199301

main23703-56020i3B..BB20,30198205-198302

main23703-56040i3B..BB2#,3#198302-198808

main23703-56080i14B..BB23,24198808-199301

main23703-58010i3B..BB21,26,31198808-199301

main23703-68010i2H..HB30,36198205-199001

main23703-68020i12HT..HB31,32198510-199001

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-17010i1HZ..HZB3#199001-199301

main23704-17020i1HDT..HDB20,3#199001-199301

main23704-56020i3B..BB20,30198205-198302

main23704-56040i3B..BB2#,3#198302-198808

main23704-56080i14B..BB23,24198808-199301

main23704-58010i3B..BB21,26,31198808-199301

main23704-68010i2H..HB30,36198205-199001

main23704-68020i12HT..HB31,32198510-199001

23741CLAMP, INJECTION PIPE, NO.1

main23741-17010i1H#..HDB20,3#,HZB3#199001-199301

NO.1

main23741-17020i1H#..HDB20,3#,HZB3#199001-199301

NO.2

main23741-17030i1H#..HDB20,3#,HZB3#199001-199301

NO.3

main23741-48010i12HT,2H..HB3#198205-199001

main23741-56010i3B..BB20,21,26,3#198205-199301

9004179064

main90041-79064

9017906070

main90179-06070

9017908060

main90179-08060

9212260625

main92122-60625

13 parts on this diagram · 9 diagrams in section
