Toyota COASTER — VACUUM PUMP

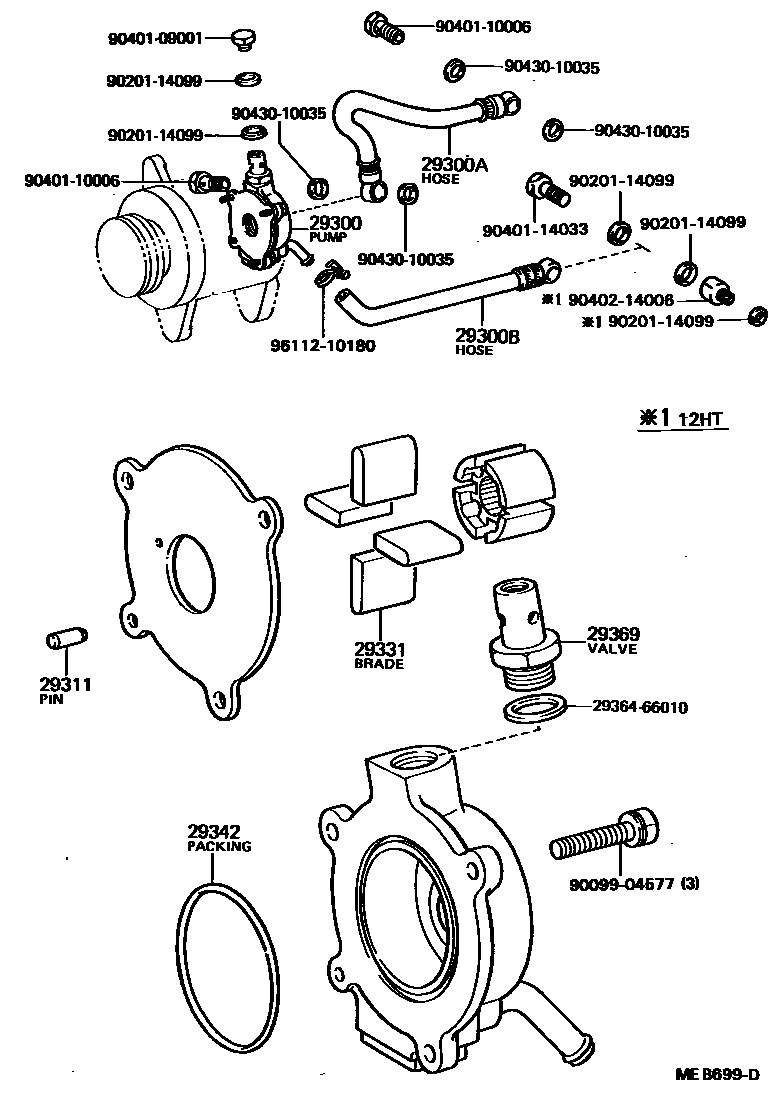

Parts diagram
29300PUMP ASSY, VACUUM
29300-68010
29300-17010
29300-58010
29300-68020
29300-58020
29300-68040
29300-54050
29300-58050
90923-02070
29300-56070
90923-02072
90923-02073
90923-02074
90923-02075
90923-02078
90923-02079
90923-02081
29300-56090
90923-02100
90923-02101
90923-02108
29300AHOSE, VACUUM PUMP OIL INLET
29300BHOSE, VACUUM PUMP OIL OUTLET
29311PIN, VACUUM PUMP DOWEL, NO.1
29311-76010
90099-08082
29331BLADE, VACUUM PUMP, A
29331-78010
29331-58050
29331-56070
29342PACKING, VACUUM PUMP
29342-64010
29342-17010
29342-58010
29342-58020
29342-58050
96740-02063
29369VALVE SUB-ASSY, CHECK
29369-64030
29369-56070
2936466010WASHER, VACUUM PUMP
29364-66010
9009904577
90099-04577
9020114099
90201-14099
9040109001
90401-09001
9040110006
90401-10006
9040114033
90401-14033
9040214006
90402-14006
9043010035
90430-10035
9611210180
96112-10180

16 parts on this diagram · 4 diagrams in section

VACUUM PUMP for Toyota COASTER

This section contains 28 genuine Toyota parts for the VACUUM PUMP system of the Toyota COASTER. Key components include: PUMP ASSY, VACUUM, HOSE, VACUUM PUMP OIL INLET, HOSE, VACUUM PUMP OIL OUTLET, PIN, VACUUM PUMP DOWEL, NO.1, BLADE, VACUUM PUMP, A.
