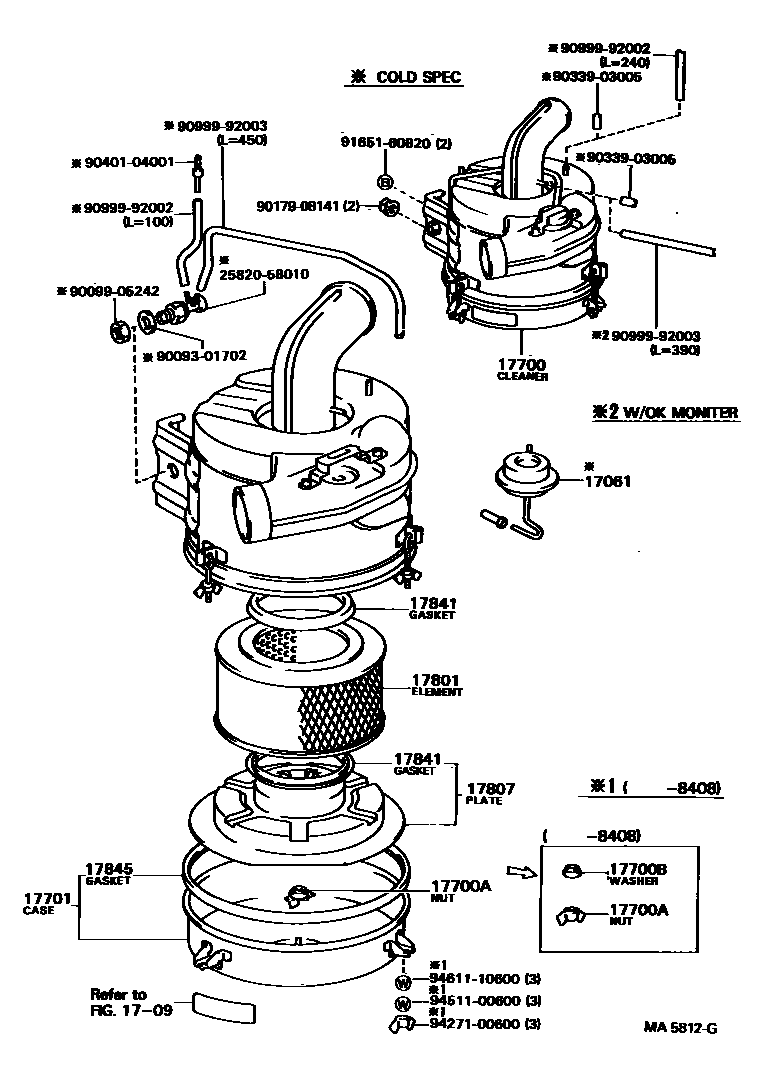

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

17061DIAPHRAGM SUB-ASSY

main17061-17010i1H#..HDB20,3#,HZB3#199001-199301

COLD SPEC

main17061-37010i14B,3B..BB2#,31198808-199301

main17061-68010i2H..HB30198808-199001

COLD SPEC

main17061-68020i12HT..HB31,32198808-199001

COLD SPEC

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

17700CLEANER ASSY, AIR

main17700-17080i1HDT..HDB20,3#199001-199301

main17700-17090i1HZ..HZB3#199001-199301

main17700-17100i1HZ..HZB3#199001-199301

COLD SPEC

main17700-17120i1HDT..HDB20,3#199001-199301

COLD SPEC

main17700-35110i22R..RB20198205-198307

main17700-35111i22R..RB20198307-198408

main17700-35230i22R..RB2#198408-199301

main17700-58050i3B..BB2#,3#198205-198307

main17700-58051i3B..BB21,31198307-198408

main17700-58052i14B,3B..BB21,23,26198408-199301

main17700-58070i3B..BB2#,3#198205-198307

COLD SPEC

main17700-58071i3B..BB2#,3#198307-198808

COLD SPEC

main17700-58081i14B..BB24198808-199301

main17700-58320i14B,3B..BB2#,31198808-199301

COLD SPEC

main17700-68100i2H..HB30198205-198307

main17700-68101i2H..HB30,36198307-199001

main17700-68110i2H..HB30198205-198307

COLD SPEC

main17700-68111i2H..HB30,36198307-198808

COLD SPEC

main17700-68112i2H..HB30,36198808-199001

COLD SPEC

main17700-68190i12HT..HB31,32198510-199001

main17700-68200i12HT..HB31198510-198808

COLD SPEC

main17700-68201i12HT..HB31,32198808-199001

COLD SPEC

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i12HT,1H#,2H..HB3#,HDB20,3#,HZB3#; 14B,3B..BB2#,3#; 22R..RB2#198408-199301

main94271-00800i22R..RB20; 2H..HB30; 3B..BB2#,3#198205-198408

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08004i22R..RB20; 2H..HB30; 3B..BB2#,3#198205-198408

17701CASE SUB-ASSY, AIR CLEANER

main17701-44263i14B,3B..BB2#,3#; 22R..RB2#198205-199301

main17701-68100i2H..HB30198205-198307

main17701-68101i12HT,2H..HB3#198307-199001

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56020i14B,3B..BB2#,3#; 22R..RB2#198205-199301

main17801-68020i1HZ,2H..HB30,36,HZB3#198205-199301

main17801-68030i12HT,1HDT..HB31,32,HDB20,3#198510-199301

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56011i14B,3B..BB2#,3#; 22R..RB2#198205-199301

main17807-68010i12HT,1H#,2H..HB3#,HDB20,3#,HZB3#198205-199301

17841GASKET, FILTER ELEMENT

main17841-44030×2i14B,3B..BB2#,3#; 22R..RB2#198205-199301

main17841-68010×2i12HT,1H#,2H..HB3#,HDB20,3#,HZB3#198205-199301

17845GASKET, AIR CLEANER CAP

main17845-56020i14B,3B..BB2#,3#; 22R..RB2#198205-199301

main17845-68020i12HT,1H#,2H..HB3#,HDB20,3#,HZB3#198205-199301

2582058010VALVE ASSY, BIMETAL, NO.2

main25820-58010

9009301702

main90093-01702

9009905242

main90099-05242

9017908141

main90179-08141

9033903005

main90339-03005

9040104001

main90401-04001

9099992002

main90999-92002

9099992003

main90999-92003

9165160820

main91651-60820

9427100600

main94271-00600

9451100600

main94511-00600

9461110600

main94611-10600

22 parts on this diagram · 13 diagrams in section
