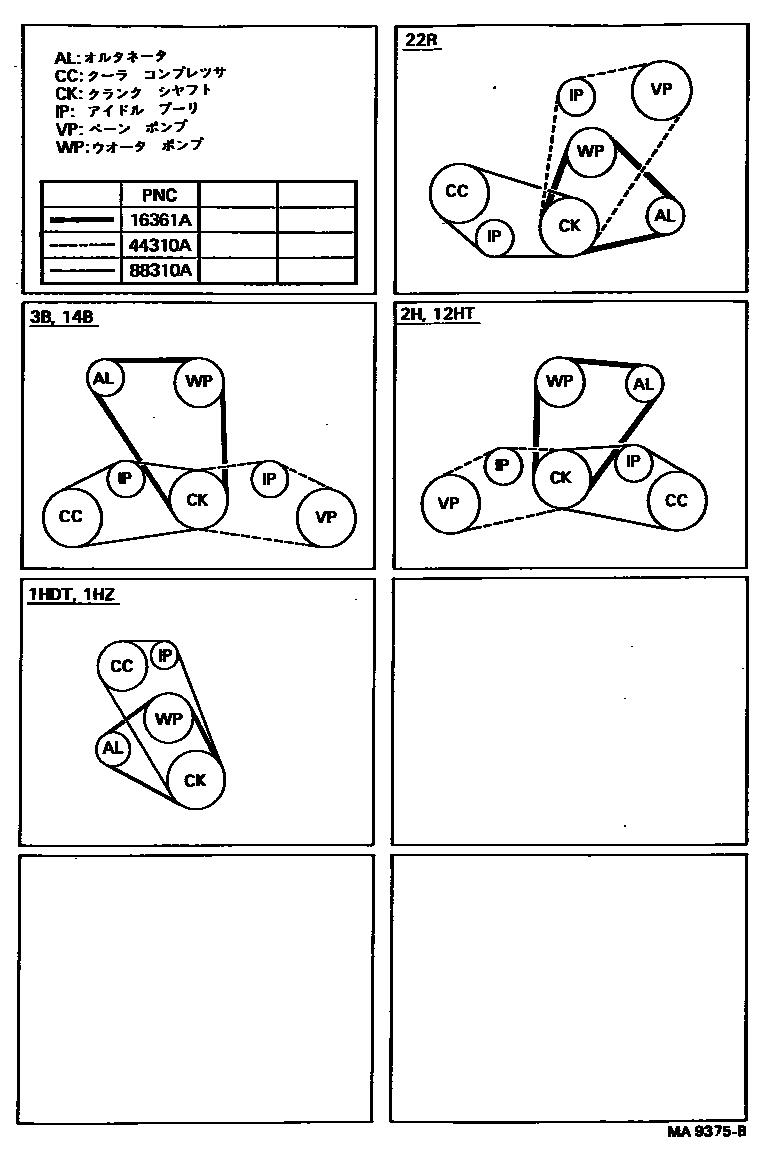

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02109i22R..RB2#..WC198205-199301

main90916-02110i2H..HB3#..WC; 2H..HB3#..WOC198205-198411

COLD SPEC

main90916-02112i3B..BB2#,3#..WOC; 3B..BB2#,30,31..WC198205-198808

COLD SPEC,DOUBLE V BELTS; DOUBLE V BELTS

main90916-02143i2H..HB3#..WC; 2H..HB3#..WOC198411-198510

COLD SPEC

main90916-02152i12HT,2H..HB3#..WC; 2H..HB30,36..WOC198510-199001

COLD SPEC

main90916-02198i12HT..HB31; 12HT..HB31..EX,EXS; 2H..HB30..WC198708-198808

ALTERNATOR=24V 85A; W/ALTERNATOR=24V 85A

main90916-02199i3B..BB2#198708-198808

W/ALTERNATOR=24V 85A

main90916-02215i14B,3B..BB2#,31..WC; 3B..BB21,26,31..WOC198808-199301

COLD SPEC

main90916-02218i3B..BB26..WC198808-199301

W/ALTERNATOR=24V 85A

main90916-02239i3B..BB21,26,31..WOC198808-199301

main90916-02248i1H#..HDB3#,HZB3#199001-199007

main90916-02284i1H#..HDB3#,HZB30,31..4FC; 1HDT..HDB20; 1HZ..HZB36199001-199007

W/ALTERNATOR=24V 85A; W/TV & VIDEO

main90916-02330i1H#..HDB3#,HZB3#199007-199301

main90916-02331i1H#..HDB3#,HZB30,31..4FC; 1HDT..HDB20; 1HZ..HZB36199007-199301

W/ALTERNAT0R=24V 85A; W/TV & VIDEO

main99331-10870i22R..RB2#..WOC198408-199301

main99331-10880i22R..RB20..WOC198205-198408

L=880

main99343-01065i2H..HB30,36..WOC198205-199001

main99343-01195i3B..BB2#,3#..WOC198205-198808

44310ABELT, V(FOR VANE PUMP)

main90916-02244iHB3#198902-199301

main99342-00920iBB2#,3#198205-198408

main99342-01000iHB3#198205-198511

L=1000

main99342-01020iHB3#198511-198902

L=1020

main99342-01095iRB2#198408-199301

main99342-01100iRB20198205-198408

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02070iRB20..WC198205-198408

main90916-02098iRB2#..WC198408-199301

main90916-02100iBB2#,30,31..WC198205-198808

main90916-02108iHB3#..WC198205-199001

main90916-02227iBB2#,31..WC198808-199301

main90916-02285iHDB20,3#,HZB3#199001-199301

DOUBLE BELT

3 parts on this diagram · 1 diagram in section
