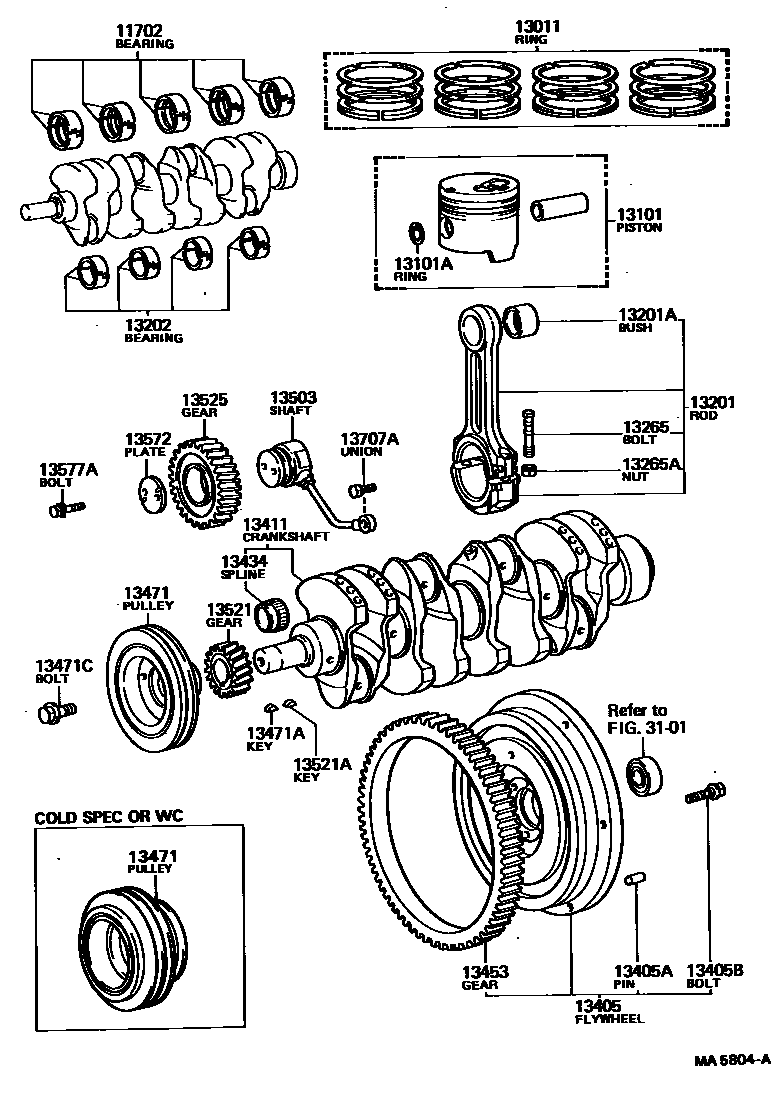

CRANKSHAFT & PISTON
11702BEARING SET, CRANKSHAFT
REP,STD #1
REP,STD #2
U/S 0.25
U/S 0.50
U/S 0.75
U/S 1.00
13011RING SET, PISTON
13101PISTON SUB-ASSY, W/PIN
STD
O/S 0.50
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
REP STD #1
REP STD #2
U/S 0.25
U/S 0.25
U/S 0.50
U/S 0.50
U/S 0.75
U/S 0.75
U/S 1.00
U/S 1.00
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
N=115
N=115
13405APIN, STRAIGHT(FOR FLYWHEEL)
13405BBOLT, FLYWHEEL SETTING
*13-1.5PX30-20
*11-1.25PX26-18
13411CRANKSHAFT
13434SPLINE, OIL PUMP DRIVE
N=42
N=42
13453GEAR, FLYWHEEL RING
N=115
N=108
N=110
13471PULLEY, CRANKSHAFT
W/PS
COLD SPEC
COLD SPEC
COLD SPEC
COLD SPEC
COLD SPEC
COLD SPEC
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13503SHAFT SUB-ASSY, IDLE GEAR
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
N=18
N=18
N=22
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13525GEAR, IDLE, NO.1
N=51
13572PLATE, IDLE GEAR THRUST
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
13707AUNION(FOR OIL PIPE, NO.1)
3101CLUTCH & RELEASE FORK
26 parts on this diagram · 6 diagrams in section
