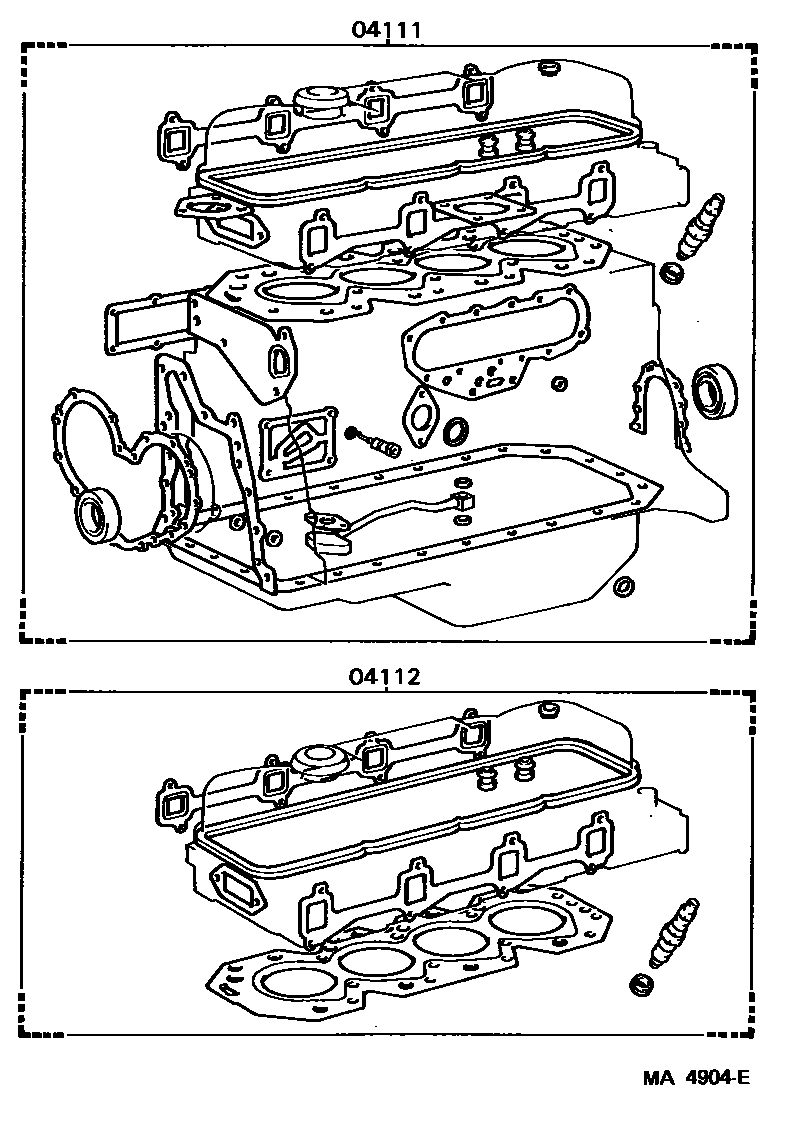

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-17010i1HZ..HZB3#199001-199301

main04111-17020i1HDT..HDB20,3#199001-199301

main04111-35021i22R..RB20198205-198208

main04111-35022i22R..RB20198208-198408

main04111-35050i22R..RB2#198408-199301

main04111-56060i14B..BB23,24198808-199301

main04111-58012i3B..BB2#,3#198205-198308

main04111-58013i3B..BB21,31198308-198408

main04111-58040i3B..BB2#,3#198408-198808

main04111-58060i3B..BB21,26,31198808-199301

main04111-68010i2H..HB3#198205-198411

main04111-68020i2H..HB30,36198411-199001

main04111-68030i12HT..HB31,32198510-199001

04112GASKET KIT, ENGINE VALVE GRIND

main04112-17010i1HZ..HZB3#199001-199301

main04112-17020i1HDT..HDB20,3#199001-199301

main04112-35011i22R..RB20198205-198208

main04112-35012i22R..RB20198208-198408

main04112-35040i22R..RB2#198408-199301

main04112-56050i14B..BB23,24198808-199301

main04112-58010i3B..BB2#,3#198205-198308

main04112-58011i3B..BB21,31198308-198408

main04112-58040i3B..BB2#,3#198408-198808

main04112-58050i3B..BB21,26,31198808-199301

main04112-68010i2H..HB3#198205-198411

main04112-68020i2H..HB30,36198411-199001

main04112-68030i12HT..HB31,32198510-199001

2 parts on this diagram · 6 diagrams in section
