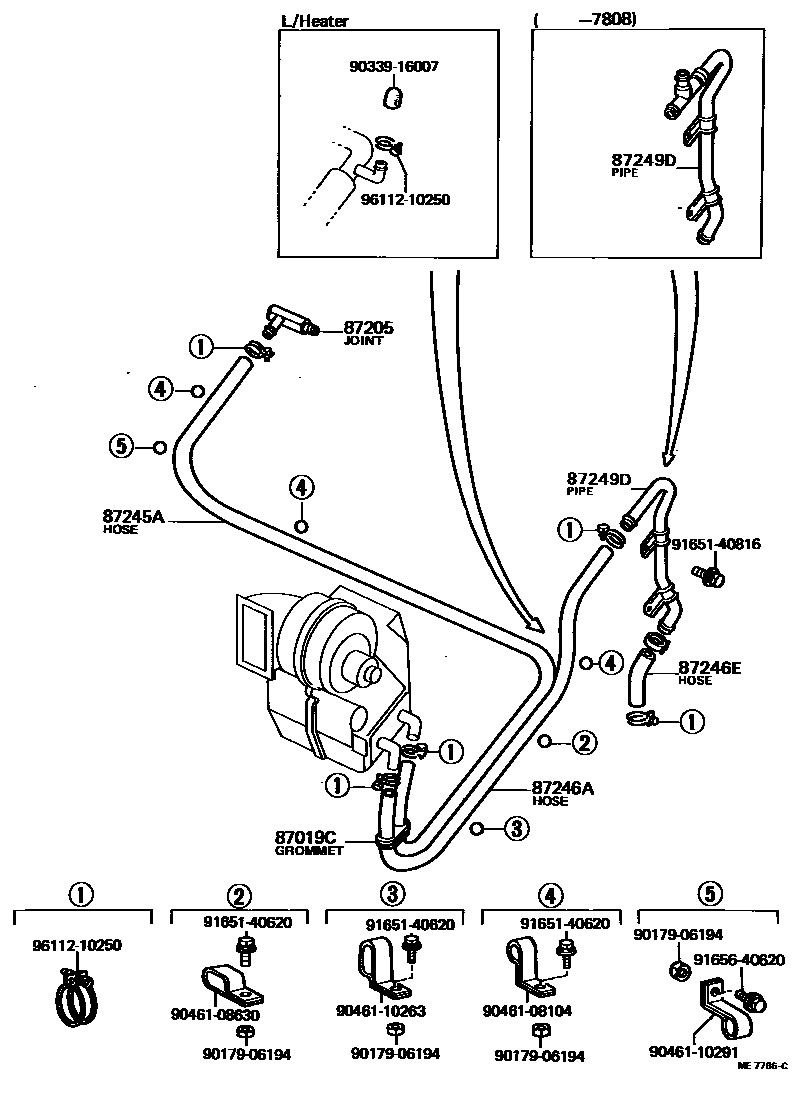

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

87019CGROMMET, HEATER HOSE

main90099-32096×2iBB1#,RB11,12..21S,22S,25S,26S197708-198204

W/*CH

main90480-01059iBB1#,RB1#197708-198204

FR HEATER

main90480-20005×4iBB1#,RB1#197708-198204

OD=24,RR HEATER

main90480-69217iBB1#,RB1#..25S,26S197708-198204

OD=60,RR,NO.1 HEATER

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87206-60100iBB10197708-197805

FR

main87206-60101iBB10197805-197908

FR

main87240-36040iBB10197708-197805

RR

main87240-36041iBB1#197805-198204

RR

main87240-36050iRB11197708-197805

FR

main87240-36051iRB11197805-197908

FR

main87240-36060iRB11197708-197805

RR

main87240-36061iRB11197805-197808

RR

main87240-36062iRB11197808-197911

RR

main87240-36063iRB1#197911-198204

RR

87245AHOSE, HEATER WATER, INLET A

main87209-36160iBB1#197708-198008

main87209-36161iBB11198008-198204

main87209-36230iRB1#197911-198204

main87245-36090iRB11197708-197911

87246AHOSE, HEATER WATER, OUTLET A

main87209-36130iBB10197708-197911

main87209-36131iBB11197911-198204

main99552-32000iRB1#197708-197912

*H,L=1550

87246EHOSE, HEATER WATER, OUTLET E

main99552-30100iRB1#197708-197912

87249DPIPE, HEATER WATER OUTLET, D

main87251-36160iRB11197708-197808

main87251-36161iRB11197808-197911

9017906194

main90179-06194

9033916007

main90339-16007

9046108104

main90461-08104

9046108630

main90461-08630

9046110263

main90461-10263

9046110291

main90461-10291

9165140620

main91651-40620

9165140816

main91651-40816

9165640620

main91656-40620

9611210250

main96112-10250

16 parts on this diagram · 15 diagrams in section
