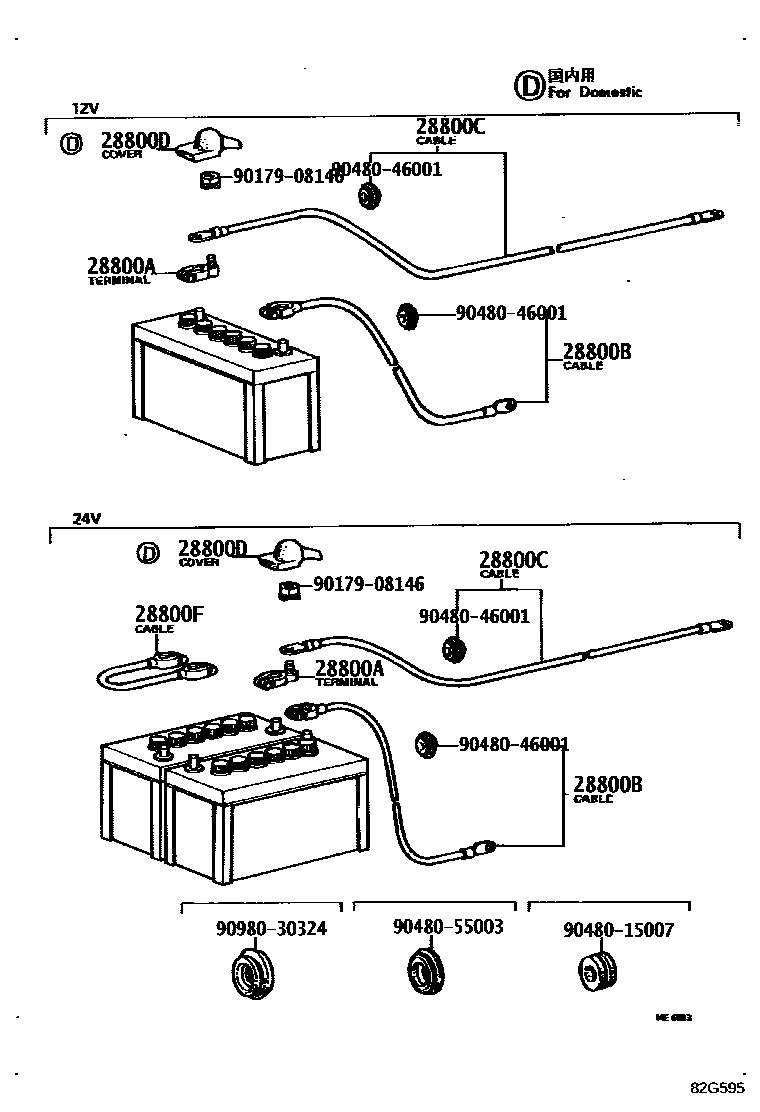

BATTERY & BATTERY CABLE

0001 1 0002 1

28800ATERMINAL, BATTERY POSITIVE

main90982-05005i20R,22R,2B..BB1#,RB1#197708-198204

28800BCABLE, BATTERY TO GROUND

main90982-02143i20R,22R..RB1#..21S,22S,25S,26S197708-198204

main90982-02145i20R,22R..RB1#..39C197708-198204

main90982-02146i2B..BB1#..21S,22S,25S,26S197708-198204

main90982-02147i2B..BB1#..39C197708-198204

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main90982-01242i20R..RB11..21S,22S,25S,26S197708-197911

main90982-01243i20R..RB11..39C197708-197911

main90982-01244i2B..BB1#..21S,22S,25S,26S197708-198204

main90982-01246i2B..BB1#..39C197708-198204

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12030i20R,22R..RB1#..39C197708-198204

28800FCABLE, BATTERY TO BATTERY

main90982-03006i2B..BB1#197708-198204

9017908146

main90179-08146

9048015007

main90480-15007

9048046001

main90480-46001

9048055003

main90480-55003

9098030324

main90980-30324

10 parts on this diagram · 2 diagrams in section
