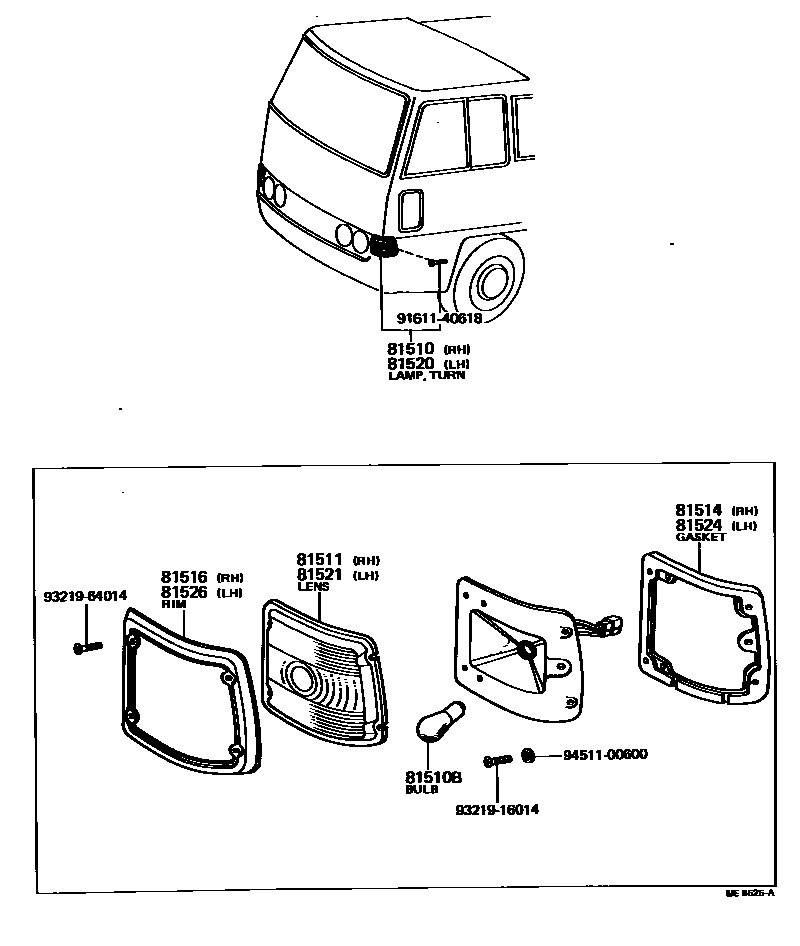

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-36143iBB11198008-198204

main81510-36252iRB13198008-198204

main81510-39235iRB1#197708-198008

main81510-39245iBB1#197708-198008

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11230×2iRB1#197708-198204

main99134-11250×2iBB1#197708-198204

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-36130iBB1#,RB1#197708-198204

AMBER

81514GASKET, FRONT TURN SIGNAL LAMP BODY, RH

main81512-36130iBB1#,RB1#197708-198204

81516RIM, FRONT TURN SIGNAL LAMP, RH

main81516-36130iBB1#,RB1#197708-198204

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-36093iBB11198008-198204

main81520-36192iRB13198008-198204

main81520-39235iRB1#197708-198008

main81520-39245iBB1#197708-198008

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-36080iBB1#,RB1#197708-198204

AMBER

81524GASKET, FRONT TURN SIGNAL LAMP BODY, LH

main81522-36080iBB1#,RB1#197708-198204

81526RIM, FRONT TURN SIGNAL LAMP, LH

main81526-36080iBB1#,RB1#197708-198204

9161140618

main91611-40618

9321916014

main93219-16014

9321964014

main93219-64014

9451100600

main94511-00600

13 parts on this diagram · 1 diagram in section
