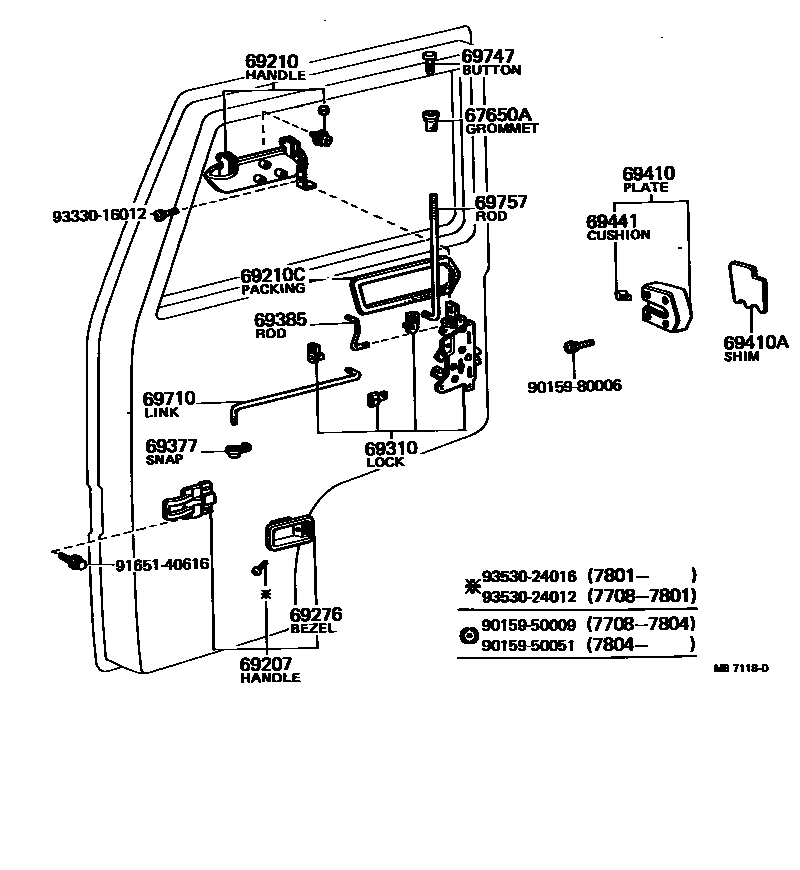

FRONT DOOR LOCK & HANDLE

67650AGROMMET(FOR DOOR PANEL LOCK BUTTON)

main90480-10102iBB1#,RB1#197708-198204

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69270-39015iBB1#,RB1#197708-198204

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-39015iBB1#,RB1#197708-198204

69210CPACKING, FRONT DOOR HANDLE

main67328-90500iBB1#,RB1#197708-198204

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69276-30010iBB10,RB11197708-197801

main69276-90500iBB1#,RB1#197801-198204

69310LOCK ASSY, FRONT DOOR, RH

main67310-90501iBB1#,RB1#197708-198204

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69377-30020iBB1#,RB1#197708-198204

69385ROD, KEY REMOTE CONTROL, RH

main67323-90500iBB1#,RB1#197708-198204

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20032iBB10,RB11197708-197901

main69410-90351iBB1#,RB1#197901-198204

69410ASHIM, FRONT DOOR LOCK STRIKER PLATE

main67318-90500iBB1#,RB1#197708-198204

69441CUSHION, DOOR LOCK, RH

main69441-20031iBB1#,RB1#197708-198204

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main67416-90500iBB1#,RB1#197708-198204

69747BUTTON, DOOR LOCKING

main69747-20020iBB1#,RB1#197708-198204

69757ROD, FRONT DOOR LOCKING CONTROL, NO.2 RH

main67317-90500iBB1#,RB1#197708-198204

9015950009

main90159-50009

9015950051

main90159-50051

9015980006

main90159-80006

9165140616

main91651-40616

9333016012

main93330-16012

9353024012

main93530-24012

9353024016

main93530-24016

21 parts on this diagram · 1 diagram in section
