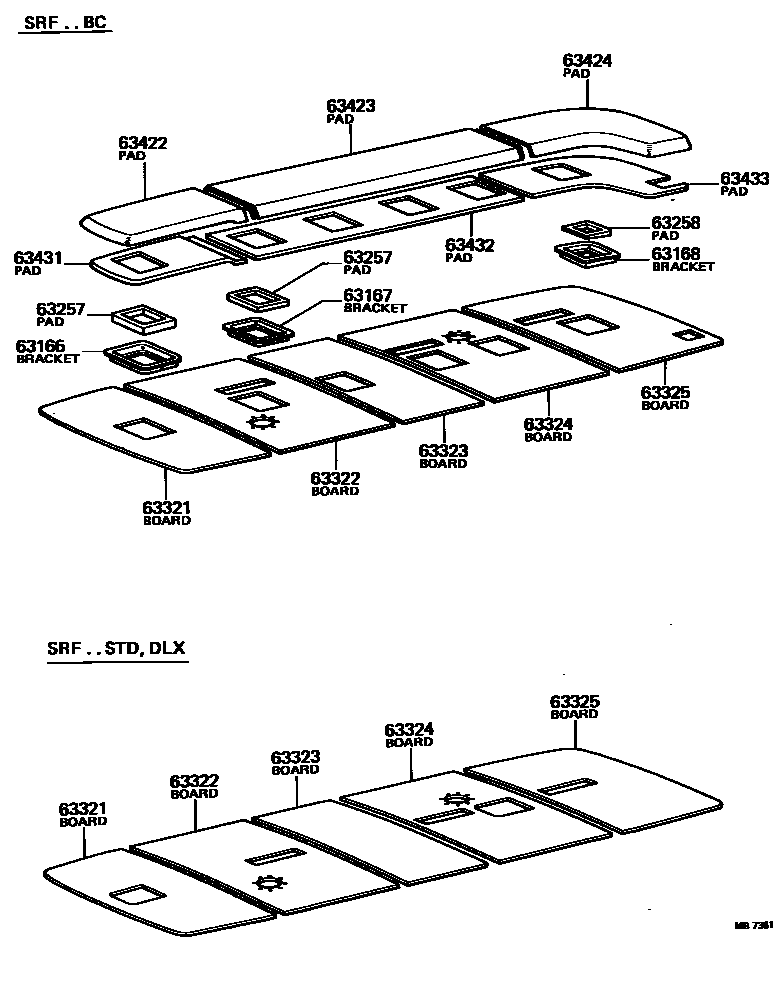

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

63166BRACKET, GRILLE HOLDER BASE SET, FRONT

main63166-90500iBB1#,RB1#..BC..SRF197708-198204

63167BRACKET, GRILLE HOLDER BASE SET, REAR

main63167-90501×5iBB1#,RB1#..BC..SRF197708-198204

63168BRACKET, ROOF DUCT ORNAMENT SET

main63168-90740iBB1#,RB1#..BC..SRF197708-198204

63257PAD, GRILLE HOLDER BASE SET BRACKET INSULATION

main63256-90500iBB1#,RB1#..BC..SRF197708-198204

FR

main63257-90500×5iBB1#,RB1#..BC..SRF197708-198204

RR

63258PAD, ROOM DUCT ORNAMENT SET BRACKET INSULATION

main63258-90740iBB1#,RB1#..BC..SRF197708-198204

63321BOARD, ROOF, NO.1

main63311-90740iBB1#,RB1#..BC..SRF197708-198204

main63311-90741iBB1#,RB1#..(22S,26S)..SRF197708-198204

main63311-90742iBB1#,RB1#..39C197708-198204

63322BOARD, ROOF, NO.2

main63312-90740iBB1#,RB1#..BC..SRF197708-198204

main63312-90742iBB1#,RB1#..(DLX,STD)..HRF197708-198204

W/RADIO

main63312-90743iBB1#,RB1#..BC..HRF197708-198204

main63312-90744iBB1#,RB1#..(DLX,STD)..SRF197708-198204

W/RADIO

main63312-90746iBB1#,RB1#..STD..SRF197708-198204

main63312-90750iBB11,RB1#..STD..HRF197911-198204

63323BOARD, ROOF, NO.3

main63313-90740iBB1#,RB1#..BC..SRF197708-198204

main63313-90741iBB1#,RB1#..(DLX,STD)..SRF197708-198204

main63313-90744iBB1#,RB1#..(DLX,STD)..HRF197708-198204

main63313-90745iBB1#,RB1#..BC..HRF197708-198204

63324BOARD, ROOF, NO.4

main63314-90740iBB1#,RB1#..BC..SRF197708-198204

main63314-90742iBB1#,RB1#..(22S,26S)..SRF197708-198204

W/RADIO

main63314-90743iBB1#,RB1#..(DLX,STD)..HRF197708-198204

W/RADIO

main63314-90744iBB1#,RB1#..BC..HRF197708-198204

main63314-90746iBB1#,RB1#..(22S,26S)..STD..SRF197708-198204

main63314-90748iBB1#,RB1#..39C197708-198204

W/RADIO

main63314-90751iBB11,RB1#..STD..HRF197911-198204

main63314-90754iBB1#,RB1#..39C197708-198204

63325BOARD, ROOF, NO.5

main63315-90740iBB1#,RB1#..BC..SRF197708-198204

main63315-90742iBB1#,RB1#..(DLX,STD)..HRF197708-198204

main63315-90743iBB1#,RB1#..BC..HRF197708-198204

main63315-90744iBB1#,RB1#..(DLX,STD)..SRF197708-198204

63422PAD, ROOF DUCT INSULATION, UPPER FRONT

main63422-90740iBB1#,RB1#..BC..SRF197708-198204

63423PAD, ROOF DUCT INSULATION, UPPER CENTER

main63423-90740iBB1#,RB1#..BC..SRF197708-198010

main63423-90741iBB11,RB13..BC..SRF198010-198204

63424PAD, ROOF DUCT INSULATION, UPPER REAR

main63424-90740iBB1#,RB1#..BC..SRF197708-198010

main63424-90741iBB11,RB13..BC..SRF198010-198204

63431PAD, FRONT DUCT INSULATION, LOWER FRONT

main63431-90740iBB1#,RB1#..BC..SRF197708-198204

63432PAD, ROOF DUCT INSULATION, LOWER CENTER

main63432-90740iBB1#,RB1#..BC..SRF197708-198204

63433PAD, ROOF DUCT INSULATION, LOWER REAR

main63433-90740iBB1#,RB1#..BC..SRF197708-198204

16 parts on this diagram · 4 diagrams in section
