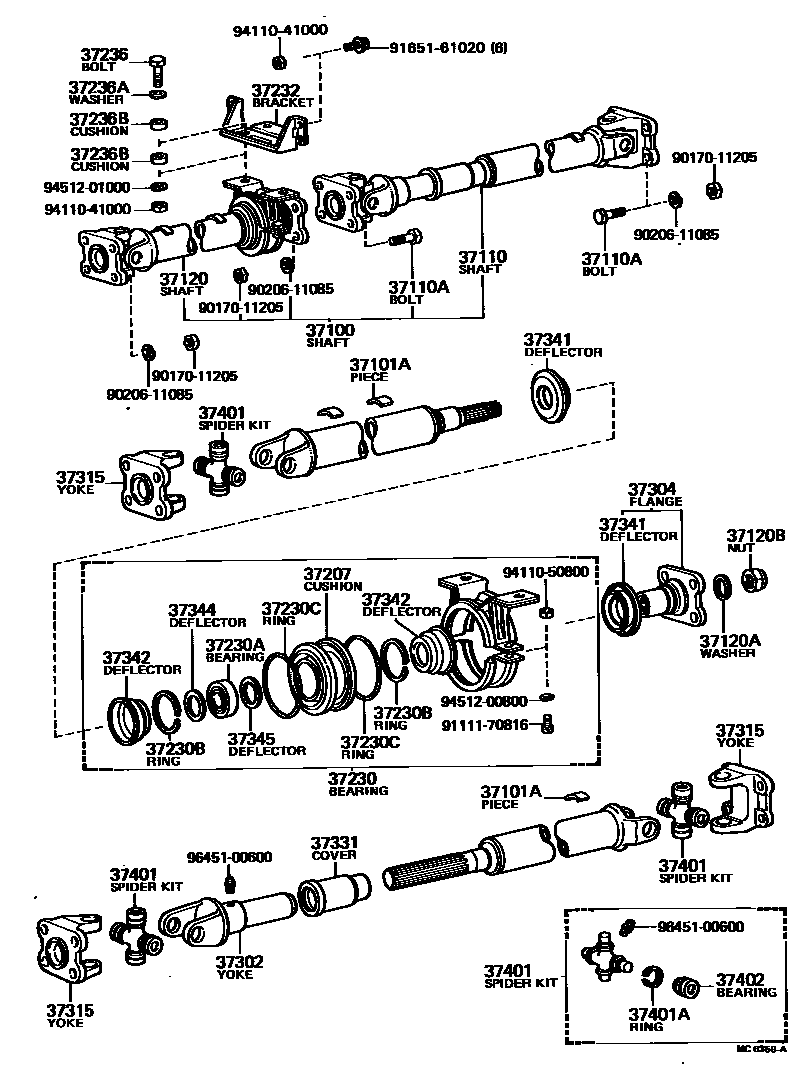

PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
37110SHAFT ASSY, PROPELLER
37110ABOLT (FOR PROPELLER SHAFT)
37120SHAFT ASSY, PROPELLER INTERMEDIATE
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37207CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230ABEARING, NO.1 (FOR CENTER SUPPORT)
37230BRING, SNAP, NO.1 (FOR CENTER SUPPORT BEARING)
37230CRING, SET, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
37232BRACKET, CENTER SUPPORT BEARING HOUSING
37236BOLT, CENTER SUPPORT BEARING HOUSING
37236AWASHER, PLATE (FOR CENTER SUPPORT BEARING HOUSING)
37236BCUSHION (FOR CENTER SUPPORT BEARING HOUSING)
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37304FLANGE SUB-ASSY, UNIVERSAL JOINT
37315YOKE, UNIVERSAL JOINT FLANGE
37331COVER, SLIDING SHAFT DUST
37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37344DEFLECTOR, PROPELLER SHAFT DUST, NO.3
37345DEFLECTOR, PROPELLER SHAFT DUST, NO.4
37401SPIDER KIT, UNIVERSAL JOINT
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
9017011205
main90170-11205
9020611085
main90206-11085
9111170816
main91111-70816
9165161020
main91651-61020
9411041000
main94110-41000
9411050800
main94110-50800
9451200800
main94512-00800
9451201000
main94512-01000
9645100600
main96451-00600
36 parts on this diagram · 1 diagram in section
