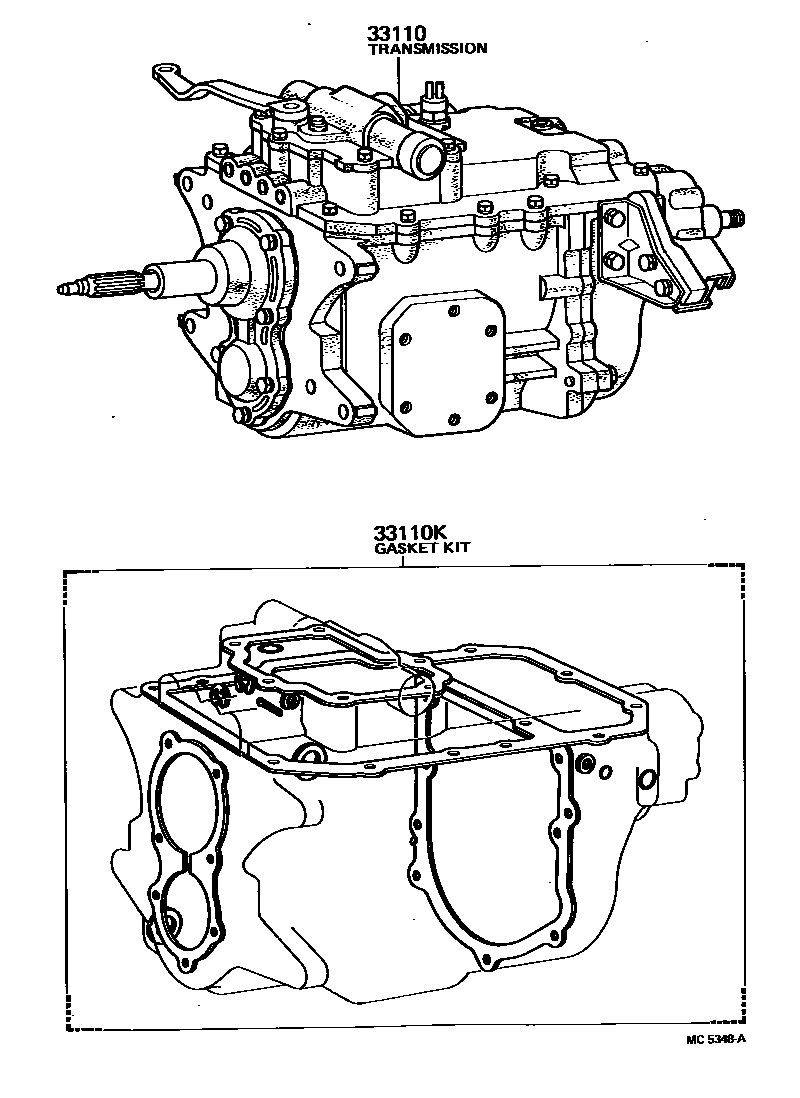

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

33110TRANSMISSION ASSY, MANUAL

main33030-36090iRB11..4H197804-197911

SMG=4

main33030-36260iRB11..5H197804-197911

SMG=4

main33030-36280iBB10..DLX,STD197804-197905

SMG=5

main33030-36281iBB10..DLX,STD197905-197911

SMG=5

main33030-36300iBB10..BC197804-197905

SMG=4

main33030-36301iBB10..BC197905-197911

SMG=4

main33110-3B010iRB12..5F197911-198006

SMG R=19:4

main33110-3B011iRB1#..5F198006-198204

SMG R=19:4

main33120-36390iRB11..4H197708-197804

SMG R=19:4,M40TRANSMISSION

main33120-36610iRB11..5H197708-197804

SMG R=19:4,M50TRANSMISSION

main33120-36630iBB10..DLX,STD197708-197804

SMG R=19:5,M50TRANSMISSION

main33120-36650iBB10..BC197708-197804

SMG R=16:4,M50TRANSMISSION

main33120-36840iBB11..DLX,STD197911-198006

SMG R=19:5,W/EXHAUST BRAKE

main33120-36841iBB11..DLX,STD198006-198008

SMG R=19:5,W/EXHAUST BRAKE

main33120-36842iBB11..DLX,STD198008-198204

SMG R=19:4,W/EXHAUST BRAKE

main33120-36850iBB11..BC197911-198006

SMG R=16:4,W/EXHAUST BRAKE

main33120-36851iBB11..BC198006-198008

SMG R=16:4,W/EXHAUST BRAKE

main33120-36852iBB11..BC198008-198204

SMG R=16:4,W/EXHAUST BRAKE

main33120-36870iBB11..DLX,STD197911-198006

SMG R=19:5

main33120-36871iBB11..DLX,STD198006-198204

SMG R=19:5

main33120-36880iBB11..BC197911-198006

SMG R=16:4

main33120-36881iBB11..BC198006-198204

SMG R=16:4

main33120-36890iRB1#..4F197911-198204

SMG R=19:4

33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36031iRB11..4H197708-197911

M40TRANSMISSION

main04331-36041iBB11,RB1#..5F197911-198204

M50TRANSMISSION

2 parts on this diagram · 1 diagram in section
