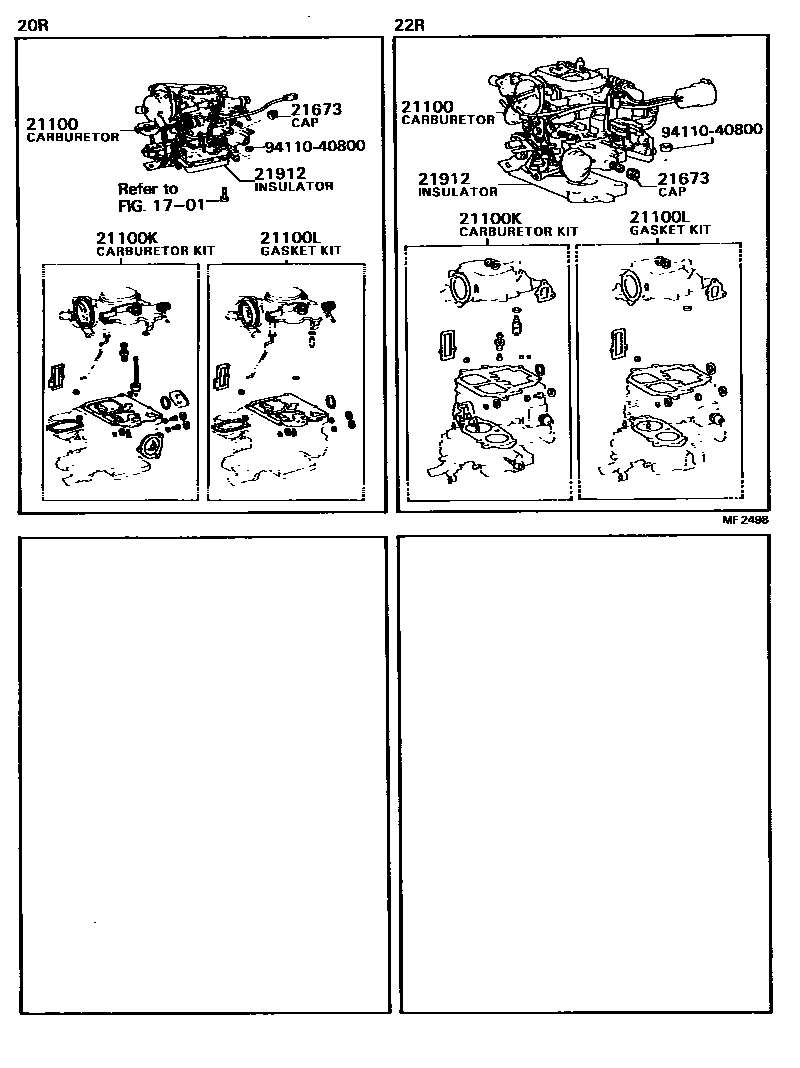

CARBURETOR ASSEMBLY

1701MANIFOLD

→ Go to FIG 17-01

21100CARBURETOR ASSY

main21100-35130i22R..RB13198008-198204

main21100-38280i20R..RB11197708-197808

main21100-38281i20R..RB11197808-197911

main21100-38450i20R..RB12197911-198008

21100KCARBURETOR KIT

main04211-35020i22R..RB13198008-198204

main04211-38040i20R..RB11197708-197911

main04211-38060i20R..RB12197911-198008

21100LGASKET KIT, CARBURETOR

main04212-37040i22R..RB13198008-198012

main04212-37041i22R..RB13198012-198204

main04212-38012i20R..RB11197808-197911

main04212-38013i20R..RB11197708-197808

main04212-38020i20R..RB12197911-198008

21673CAP, IDLE LIMIT

main21673-38020i20R..RB1#197708-198008

21912INSULATOR, CARBURETOR HEAT

main21912-37020i22R..RB13198008-198204

main21912-38020i20R..RB11197708-197808

main21912-38030i20R..RB1#197808-198008

9411040800

main94110-40800

7 parts on this diagram · 1 diagram in section
