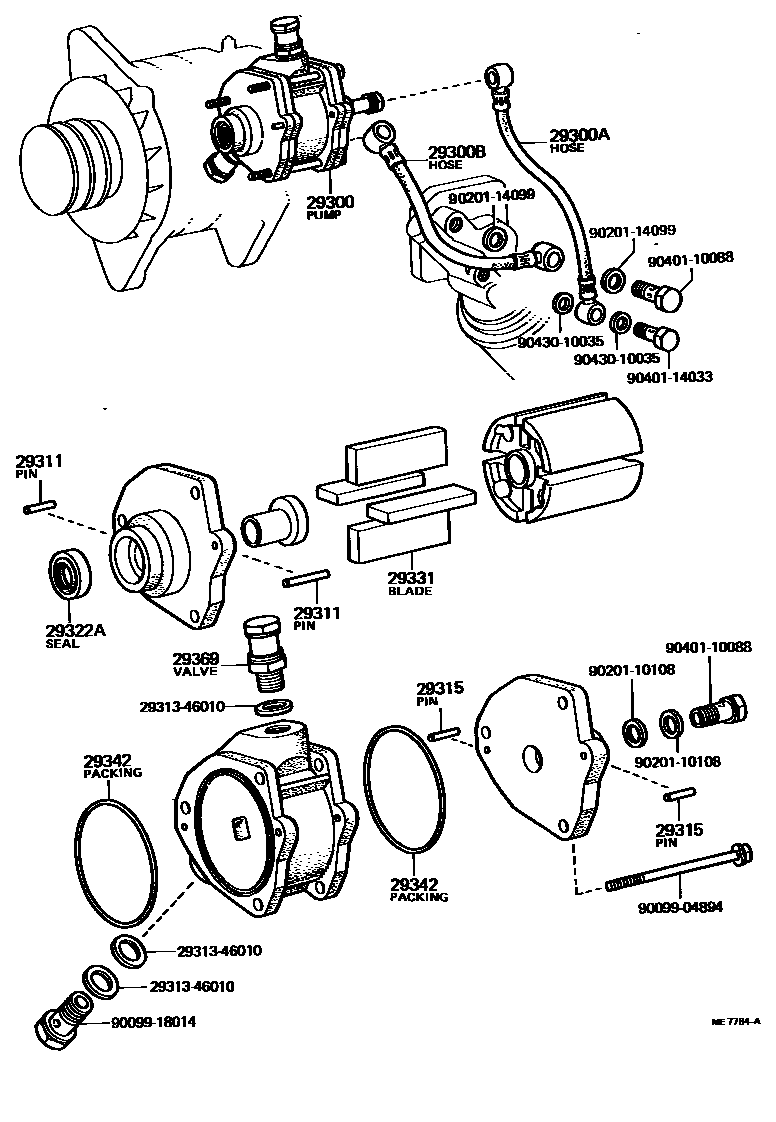

VACUUM PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1

29300PUMP ASSY, VACUUM

main29300-54030i2B..BB11..DLX,STD197911-197912

main29300-54031i2B..BB11..DLX,STD197912-198002

main29300-54040i2B..BB11..DLX,STD198002-198008

main29300-56020i2B..BB10..DLX,STD197708-197911

ALTERNATOR=24V 20A

main29300-56030i2B..BB1#..BC197708-198008

main29300-56040i2B..BB1#..DLX,STD197708-198008

ALTERNATOR=24V 40A

main29300-56070i2B..BB11198109-198204

ALTERNATOR=24V 40A,55A

main29300-57011i2B..BB11198008-198109

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02026i2B..BB1#..BC; 2B..BB1#..DLX,STD197708-198008

ALTERNATOR=24V 40A

main90923-02033i2B..BB1#..DLX,STD197708-198008

ALTERNATOR=24V 20A

main90923-02062i2B..BB11..DLX,STD198008-198204

ALTERNATOR=24V 20A,25A

main90923-02066i2B..BB11198008-198109

ALTERNATOR=24V 40A,55A

main90923-02078i2B..BB11198109-198204

ALTERNATOR=24V 40A,55A

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02050i2B..BB1#..BC197708-198008

main90923-02054i2B..BB10..DLX,STD197708-197911

ALTERNATOR=24V 20A

main90923-02055i2B..BB1#..DLX,STD197708-198008

ALTERNATOR=24V 40A

main90923-02059i2B..BB11..DLX,STD197911-198008

ALTERNATOR=24V 20A

main90923-02065i2B..BB11198008-198109

main90923-02068i2B..BB11198109-198204

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×4i2B..BB11..DLX,STD197911-198002

ALTERNATOR=24V 20A

main90099-08082×2i2B..BB11..BC; 2B..BB11..DLX,STD197911-198002

ALTERNATOR=24V 40A

29315PIN, VACUUM PUMP DOWEL, NO.2

main90099-08082×2i2B..BB1#197708-198008

29322ASEAL, VACUUM PUMP OIL

main90099-15017i2B..BB11..DLX,STD198109-198204

ALTERNATOR=24V 20A,25A

29331BLADE, VACUUM PUMP, A

main29331-54031×4i2B..BB11..DLX,STD197912-198002

main29331-56010×4i2B..BB11198008-198109

main29331-56070×4i2B..BB11198109-198204

ALTERNATOR=24V 40A,55A

main29331-77020×4i2B..BB1#..BC; 2B..BB1#..DLX,STD197708-198008

ALTERNATOR=24V 40A

29342PACKING, VACUUM PUMP

main90099-14031×2i2B..BB1#..BC; 2B..BB1#..DLX,STD197708-198008

ALTERNATOR=24V 40A

main96740-02063×2i2B..BB11198008-198204

29369VALVE SUB-ASSY, CHECK

main29369-54010i2B..BB11198008-198109

main29369-56020i2B..BB10..DLX,STD197708-197911

ALTERNATOR=24V 20A

main29369-56030i2B..BB1#..DLX,STD197710-198008

ALTERNATOR=24V 40A

main29369-56070i2B..BB11198109-198204

ALTERNATOR=24V 40A,55A

2931346010

main29313-46010

9009904894

main90099-04894

9009918014

main90099-18014

9020110108

main90201-10108

9020114099

main90201-14099

9040110088

main90401-10088

9040114033

main90401-14033

9043010035

main90430-10035

17 parts on this diagram · 7 diagrams in section
