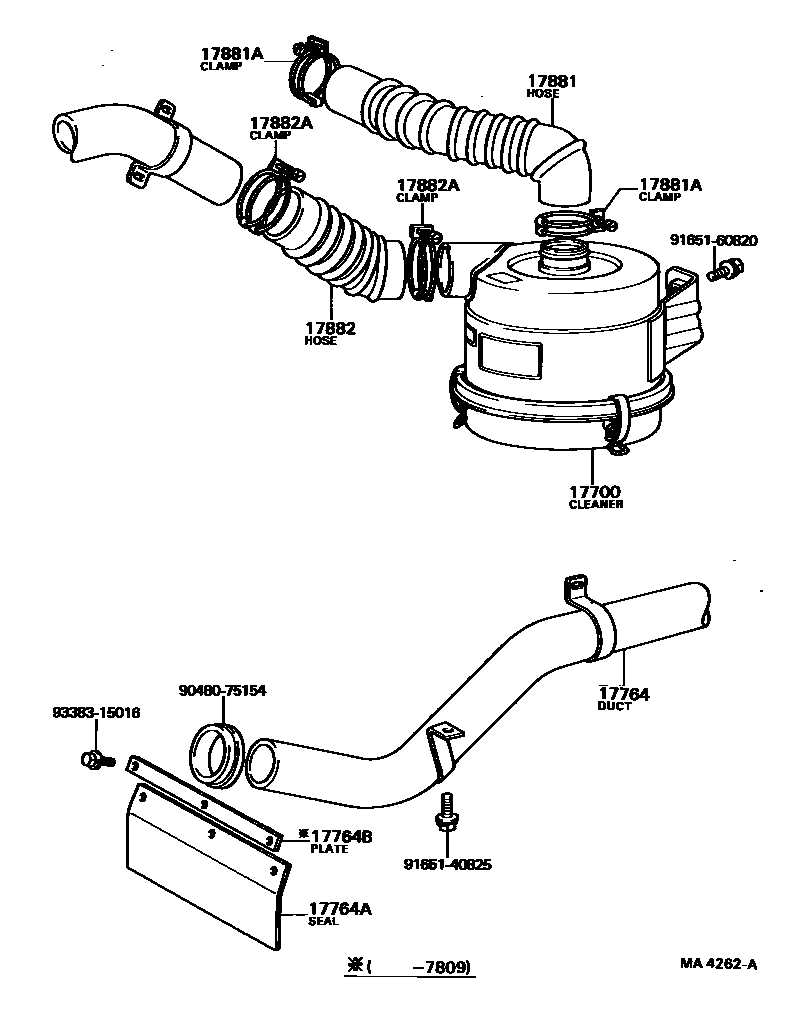

AIR CLEANER

0001 1 0002 1 0003 1

17700CLEANER ASSY, AIR

main17700-35070i22R..RB13198008-198204

main17700-38070i20R..RB11197708-197909

main17700-38071i20R..RB1#197909-198008

main17700-56141i2B..BB10197708-197909

main17700-56142i2B..BB1#197909-198204

17764DUCT, AIR CLEANER

main58609-90500i20R,22R..RB1#197708-198204

17764ASEAL, AIR CLEANER DUCT

main58395-90740i20R,22R..RB1#197708-198204

17764BPLATE, AIR CLEANER SEALD

main58396-90740i2B..BB10197708-197809

17881HOSE, AIR CLEANER, NO.1

main17881-38020i20R,22R..RB1#197708-198204

main17881-56021i2B..BB1#197708-198204

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10670i2B..BB1#197708-198204

ID=67

main96111-10750×2i20R,22R..RB1#197708-198204

ID=75

17882HOSE, AIR CLEANER, NO.2

main17882-38040i20R,22R..RB1#197708-198204

main17882-38070i20R..RB12198003-198008

W/HOT AIR INTAKE

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10750×2i20R,22R..RB1#197708-198204

ID=75

9048075154

main90480-75154

9165140825

main91651-40825

9165160820

main91651-60820

9338315016

main93383-15016

12 parts on this diagram · 3 diagrams in section
