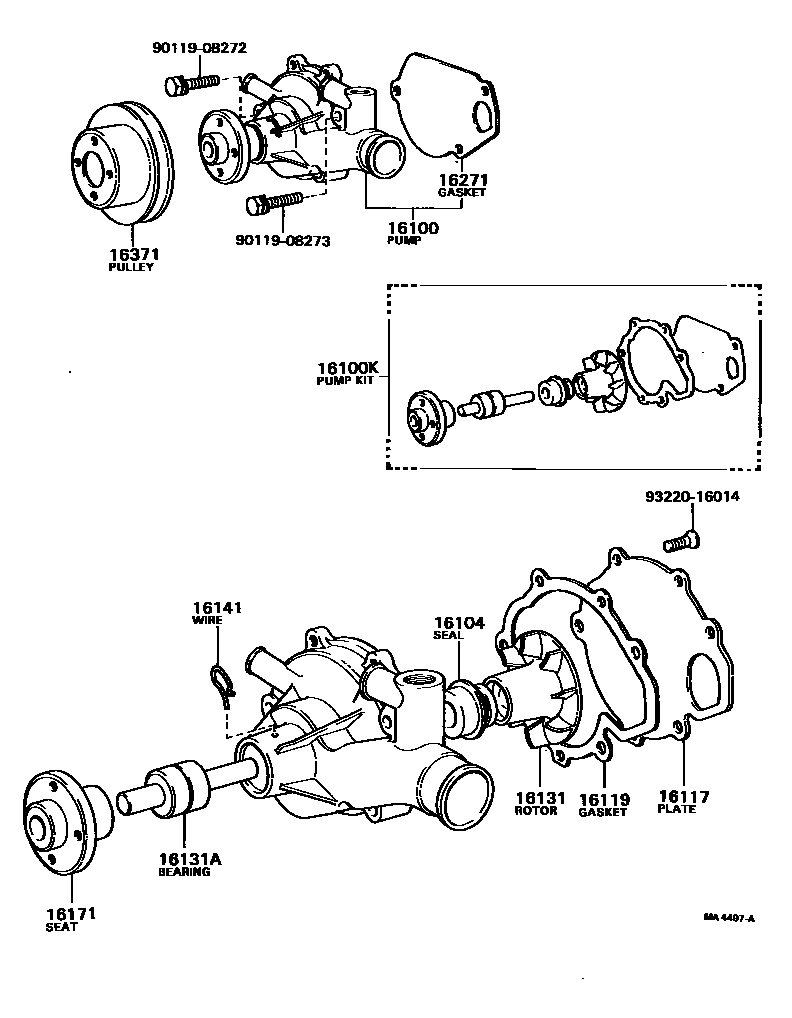

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-59017i2B..BB1#..DLX,STD197708-198008

main16100-59025i2B..BB10..BC; 2B..BB10..DLX,STD197708-197904

24V 40A ALTERNATOR

main16100-59026i2B..BB1#..BC; 2B..BB1#..DLX,STD197904-198008

24V 40A ALTERNATOR

main16100-59065i2B..BB11..DLX,STD198008-198204

main16100-59085i2B..BB11..BC198008-198204

16100KPUMP KIT, WATER

main04161-35020i22R..RB13198008-198204

main04161-56020i2B..BB1#..DLX,STD197708-198008

main04161-56040i2B..BB11..DLX,STD198008-198204

main04161-56070i2B..BB11..BC198008-198204

main04161-57010i2B..BB1#..BC; 2B..BB1#..DLX,STD197708-198008

24V 40A ALTERNATOR

16104SEAL SET, WATER PUMP

main16104-41110i20R..RB1#; 2B..BB1#..DLX,STD197708-198008

main16104-41111i22R..RB13; 2B..BB11..DLX,STD198008-198204

main16104-52010i2B..BB10..BC; 2B..BB10..DLX,STD197708-197904

24V 40A ALTERNATOR

main16104-52011i2B..BB1#..DLX,STD197904-198008

24V 40A ALTERNATOR

16117PLATE, WATER PUMP

main16117-56010i2B..BB1#197708-198008

main16117-56040i2B..BB11198008-198204

16119GASKET, WATER PUMP BODY

main16119-56010i2B..BB1#197708-198008

main16119-56040i2B..BB11198008-198204

16131ROTOR, WATER PUMP

main16131-35010i22R..RB13198008-198204

main16131-38020i20R..RB1#197708-198008

main16131-56020i2B..BB1#..DLX,STD197708-198204

main16131-56040i2B..BB11..BC198008-198204

main16131-87304i2B..BB1#..BC; 2B..BB1#..DLX,STD197708-198008

24V 40A ALTERNATOR

16131ABEARING, WATER PUMP

main16140-38011i20R..RB11197708-197802

WPB16101ARS

main90369-30011i20R,22R..RB1#197802-198204

WPB16101BBRL2

main90369-30028i2B..BB1#..DLX,STD197708-198204

WPB16112-2RS

main90369-38001i2B..BB1#..BC197708-198204

16141WIRE, WATER PUMP BEARING RETAINING

main16141-60010i2B..BB11..DLX,STD198008-198204

main16141-76010i2B..BB1#..DLX,STD197904-198008

24V 40A ALTERNATOR

16171SEAT, WATER PUMP PULLEY

main16171-38022i20R,22R..RB1#197708-198204

main16171-56010i2B..BB1#..DLX,STD197708-198204

main16171-57010i2B..BB1#..DLX,STD197708-198008

24V 40A ALTERNATOR

main16171-57011i2B..BB1#..BC197708-198204

16271GASKET, WATER PUMP

main16271-56012i2B..BB1#197708-198008

main16271-56020i2B..BB11198008-198204

16371PULLEY, FAN

main16173-38011i20R,22R..RB1#197708-198204

main16371-56020i2B..BB11..DLX,STD198008-198204

9011908272

main90119-08272

9011908273

main90119-08273

9322016014

main93220-16014

14 parts on this diagram · 3 diagrams in section
