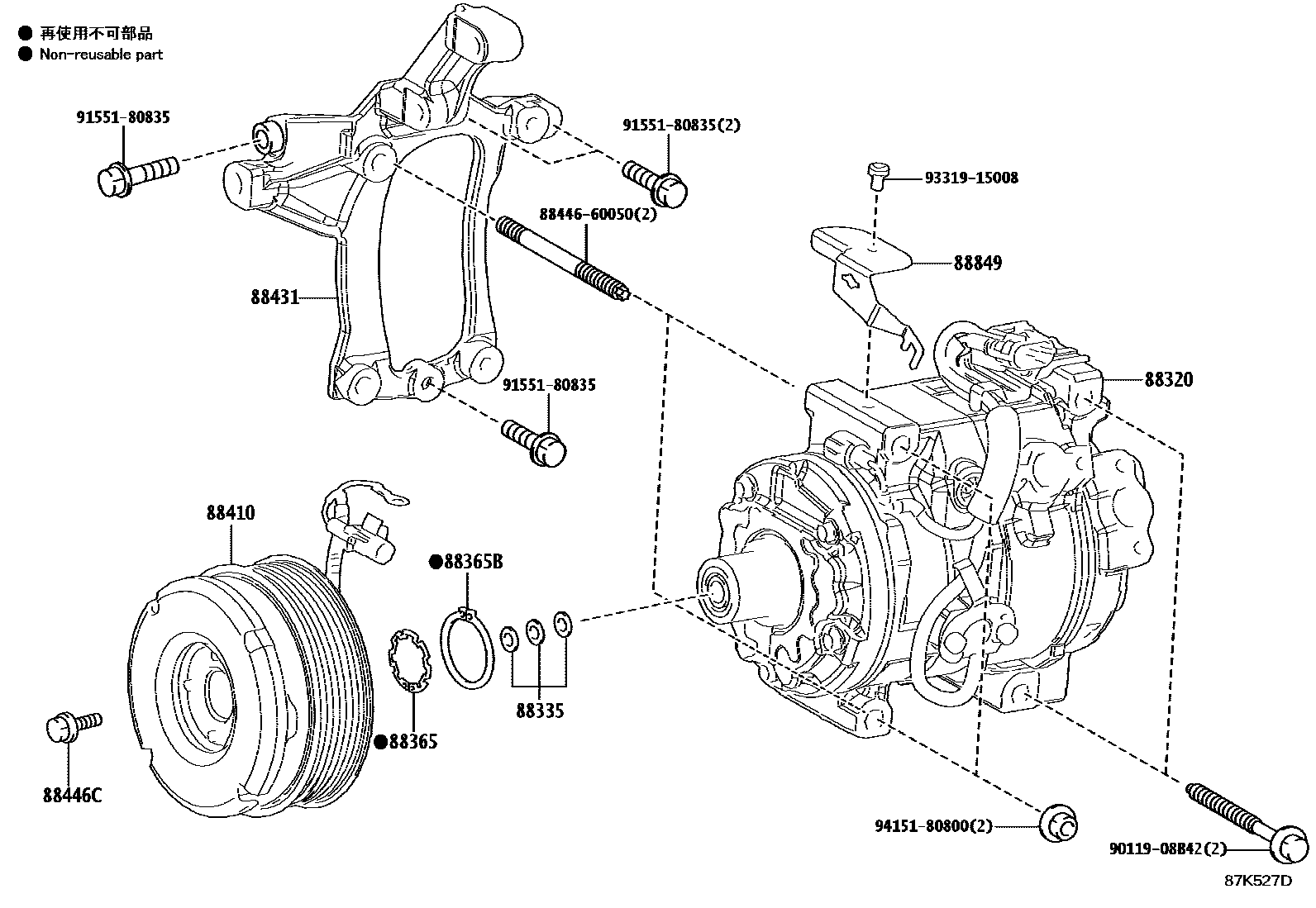

Toyota LEXUS LX700H/600 — HEATING & AIR CONDITIONING - COMPRESSOR
88320COMPRESSOR ASSY, COOLER
88335GASKET KIT, OVERHAUL
88365BRING, SNAP, NO.2
88410CLUTCH ASSY, MAGNET
88446CBOLT, MAGNET CLUTCH SETTING
88849BRACKET, COOLER COMPRESSOR, NO.2
8844660050BOLT, IDLE PULLEY
9011908B42
9155180835
9331915008
9415180800
13 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - COMPRESSOR for Toyota LEXUS LX700H/600
This section contains 18 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota LEXUS LX700H/600. Key components include: COMPRESSOR ASSY, COOLER, GASKET KIT, OVERHAUL, RING, SNAP, RING, SNAP, NO.2, COMPRESSOR ASSY, W/MOTOR.
