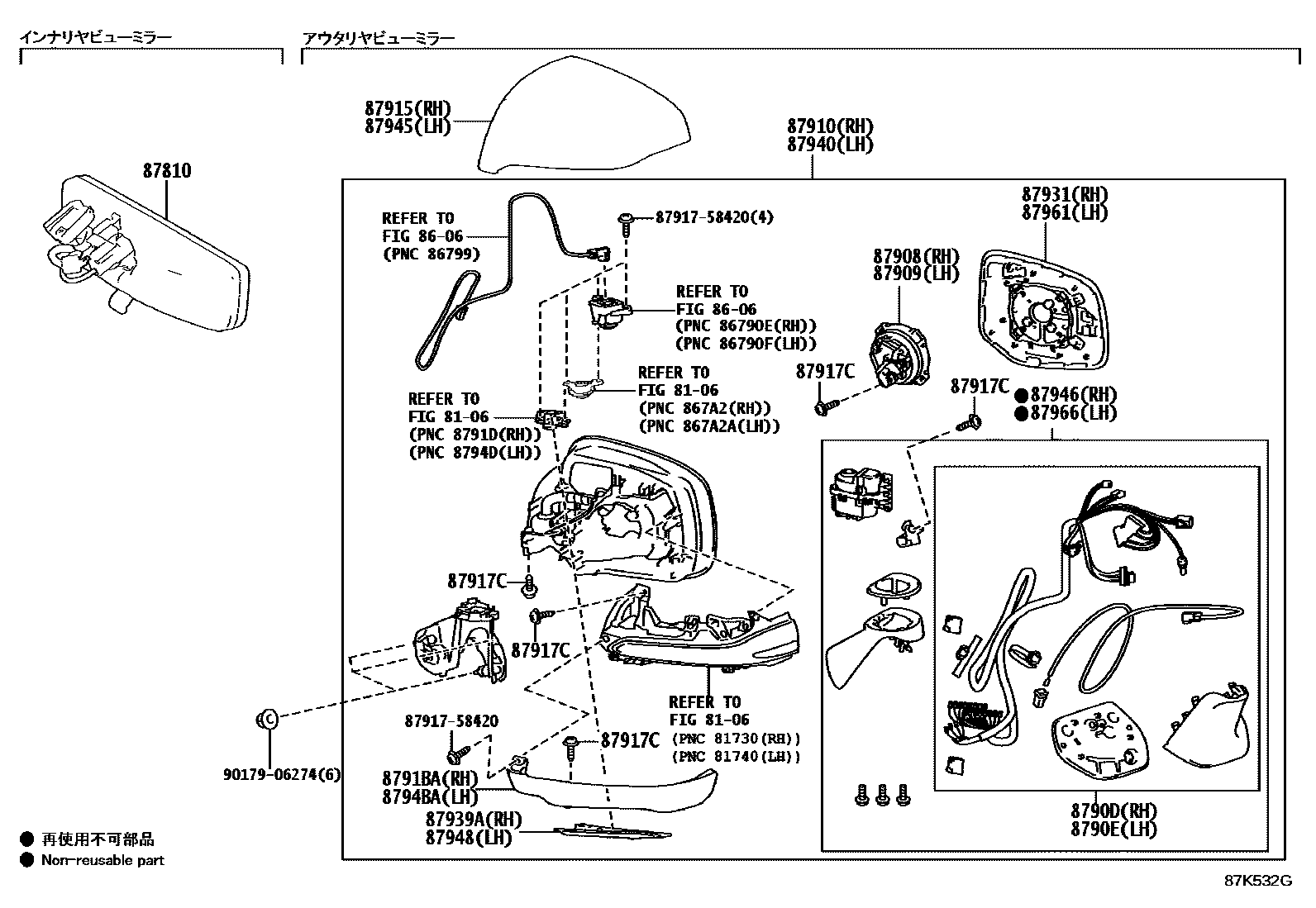

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
8790DWIRE SET, OUTER MIRROR REPAIR, RH
8790EWIRE SET, OUTER MIRROR REPAIR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
WHITE NOVA GF.,083
MANGANESE LUSTER,1K2
BLACK,085 ,1J7 ,1K2 ,202 ,223 ,6X4
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
87917CSCREW, OUTER MIRROR
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
SONIC QUARTZ,085
SONIC TITANIUM,1J7
WHITE NOVA GF.,083
MANGANESE LUSTER,1K2
BLACK,085 ,1J7 ,1K2 ,202 ,223 ,6X4
GRAPHITE BLACK GF.,223
TERRANE KHAKI M.M.,6X4
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
8791758420ESCUTCHEON
main87917-58420
9017906274
main90179-06274
22 parts on this diagram · 1 diagram in section
