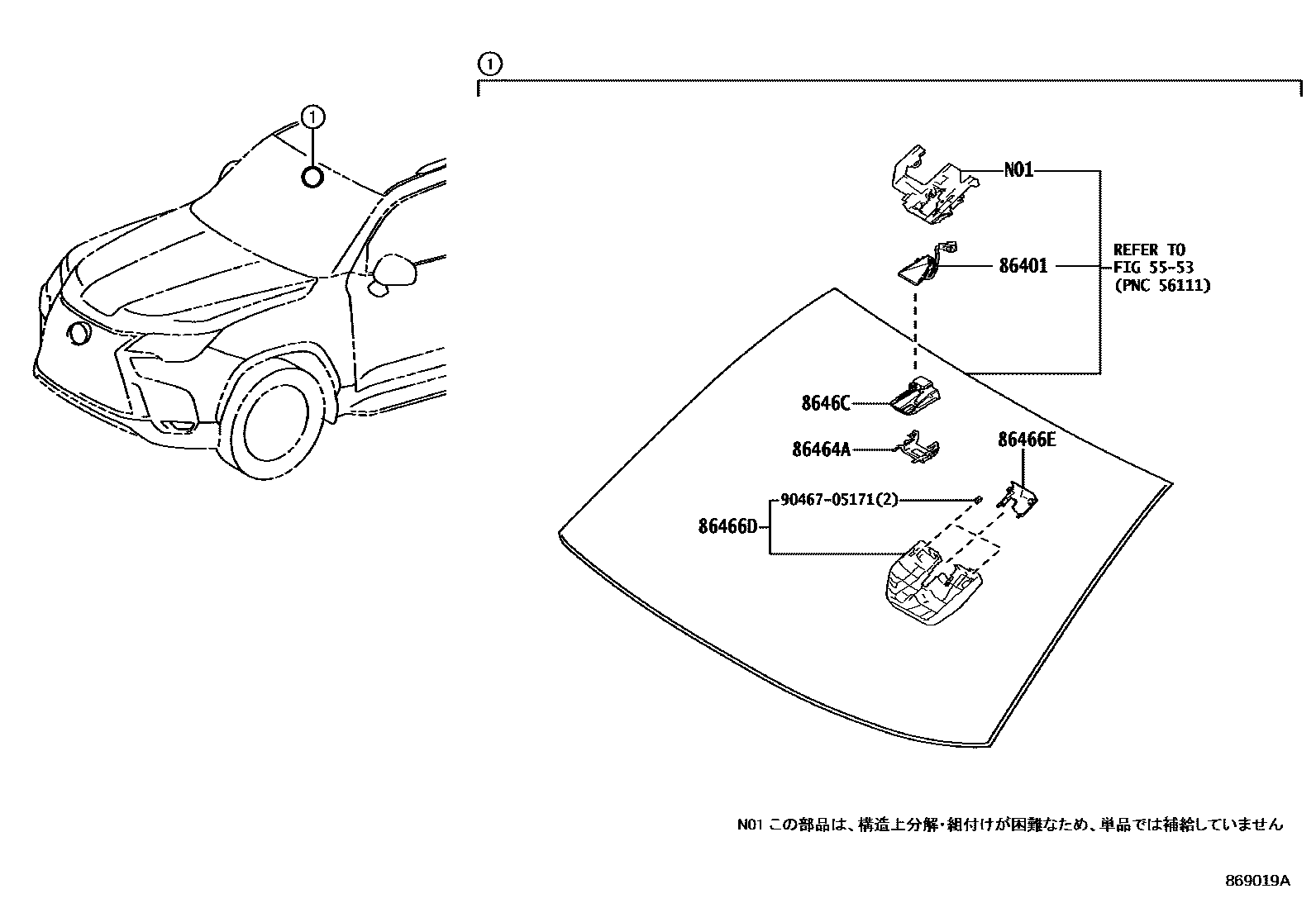

PRE-COLLISION SYSTEM

0001 1 0002 1

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-60030iVJA310202112-202411

86464ALATCH, FORWARD RECOGNITION

main86464-26010iVJA310202112-202411

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-60080iVJA310202112-202411

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-60100iVJA310202112-202411

8646CCAMERA, FORWARD RECOGNITION

main8646C-60090iVJA310202112-202211

main8646C-60091iVJA310202211-202310

main8646C-60180iVJA310202310-202411

9046705171

main90467-05171

7 parts on this diagram · 2 diagrams in section
