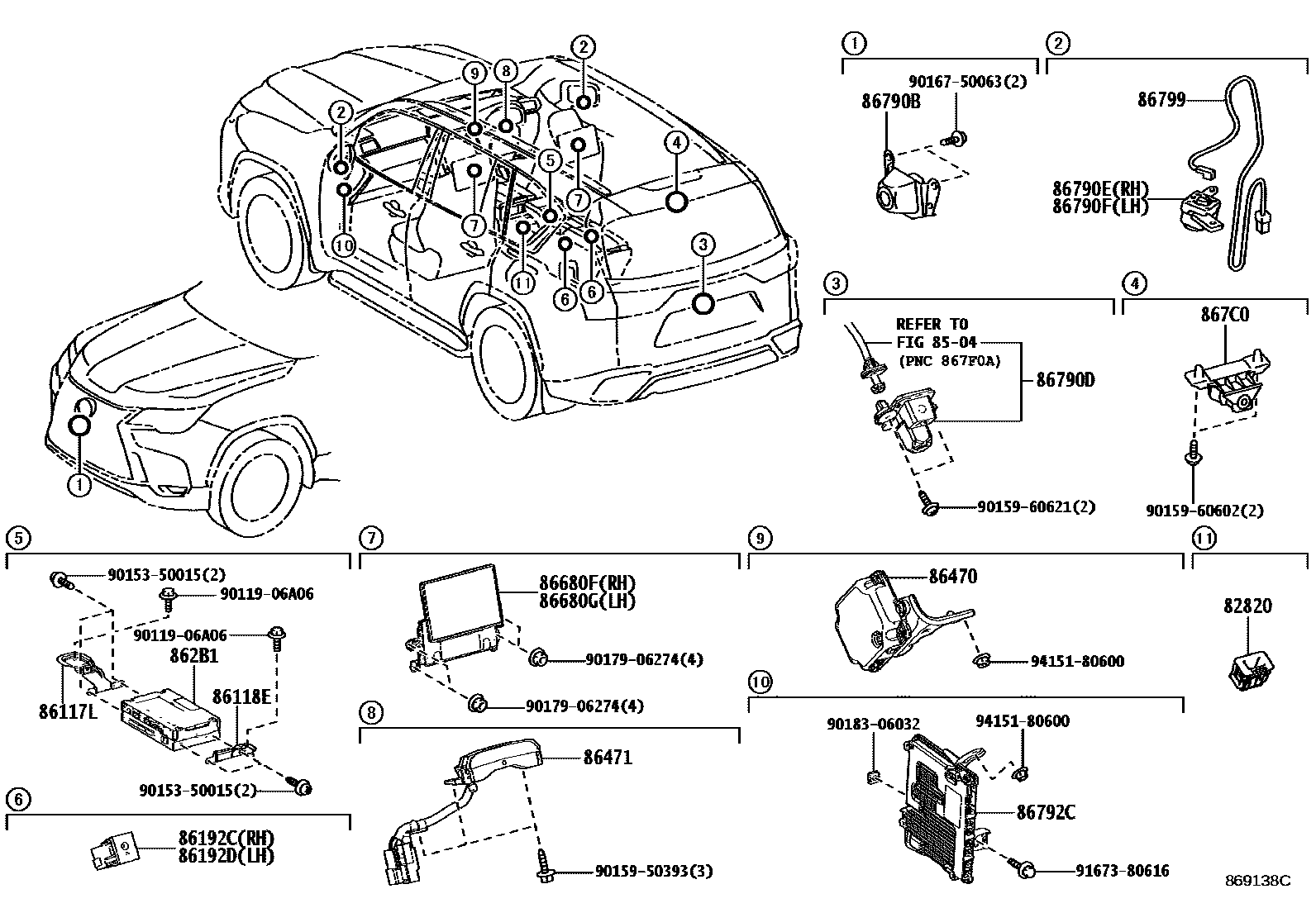

CAMERA & REAR MONITOR DISPLAY
82820COVER, CONNECTOR
8504
86117LBRACKET, MULTI-DISPLAY CONTROLLER, NO.1
86118EBRACKET, MULTI-DISPLAY CONTROLLER, NO.2
86192CTERMINAL, HEADPHONE, RH
86192DTERMINAL, HEADPHONE, LH
862B1CONTROLLER, MULTI-DISPLAY
86470COMPUTER ASSY, DRIVER MONITOR
main86470-60090
86471CAMERA, DRIVER MONITOR
main86471-48010
86680FDISPLAY ASSY, MULTI INFORMATION, NO.1
86680GDISPLAY ASSY, MULTI INFORMATION, NO.2
86790BCAMERA ASSY, TELEVISION, FR
86790DCAMERA ASSY, TELEVISION, RR
86790ECAMERA ASSY, TELEVISION, SIDE RH
86790FCAMERA ASSY, TELEVISION, SIDE LH
86792CCOMPUTER, PARKING ASSIST
86799WIRE, TELEVISION CAMERA
867C0CAMERA ASSY, INNER MIRROR
9011906A06
main90119-06A06
9015350015
main90153-50015
9015950393
main90159-50393
9015960602
main90159-60602
9015960621
main90159-60621
9016750063
main90167-50063
9017906274
main90179-06274
9018306032
main90183-06032
9167380616
main91673-80616
9415180600
main94151-80600
28 parts on this diagram · 1 diagram in section
