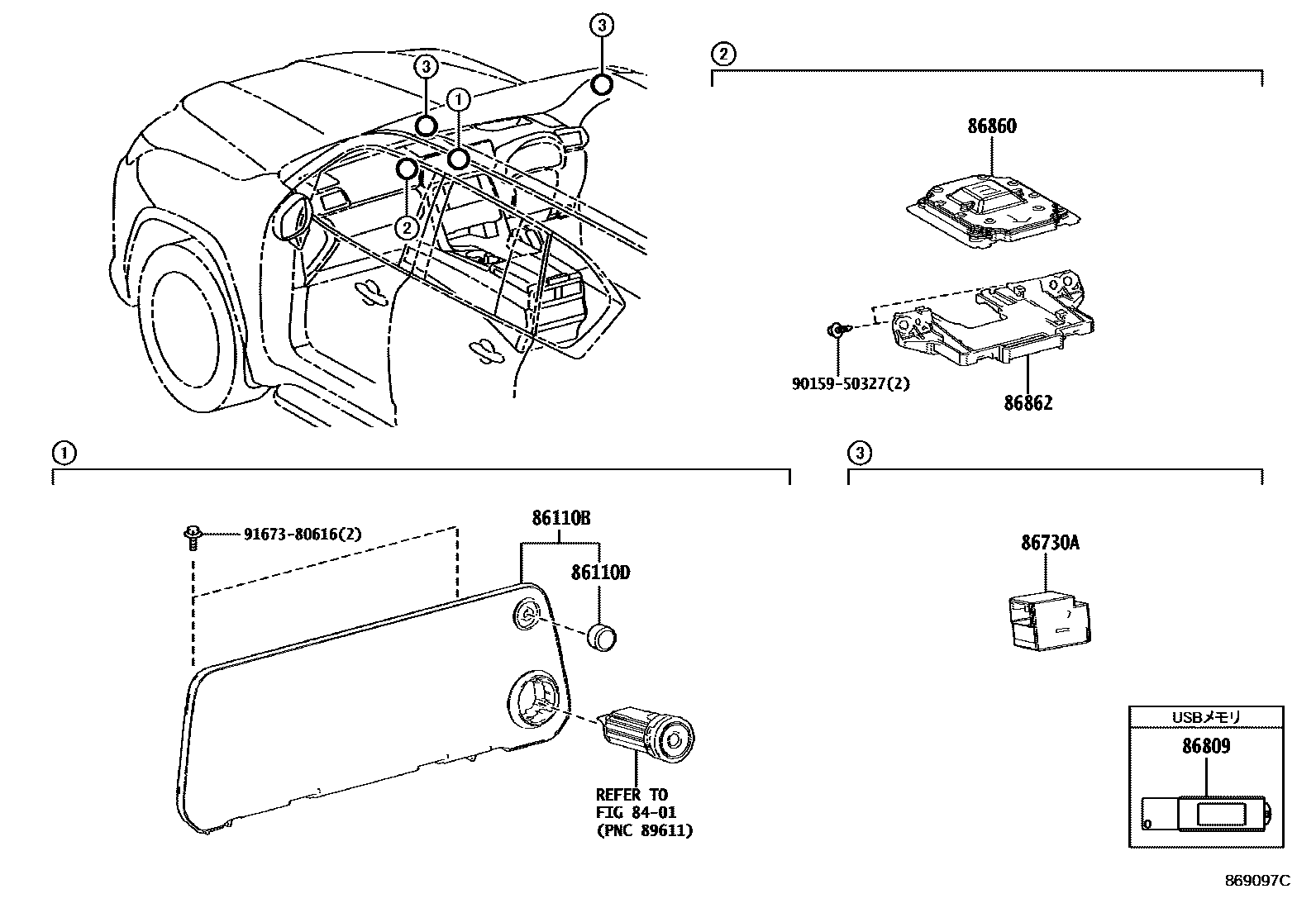

NAVIGATION & FRONT MONITOR DISPLAY

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86110BMULTI-DISPLAY ASSY

main86110-60A30supersedes 86110-60850iVJA310202112-202411

86110DKNOB, MULTI-DISPLAY SWITCH

main90010-23062iVJA310202112-202411

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2iVJA310202112-202411

86809USB SET, USB MEMORY NAVIGATION DATA

main86809-78010iVJA310202112-202303

main86809-78011iVJA310202304-202310

main86809-78012iVJA310202311-202403

main86809-78013iVJA310202404-202410

86860ANTENNA ASSY, NAVIGATION

main86880-78010iVJA310202112-202411

86862BRACKET, NAVIGATION ANTENNA

main86862-60070iVJA310202112-202411

9015950327

main90159-50327

9167380616

main91673-80616

9 parts on this diagram · 1 diagram in section
