BATTERY & BATTERY CABLE

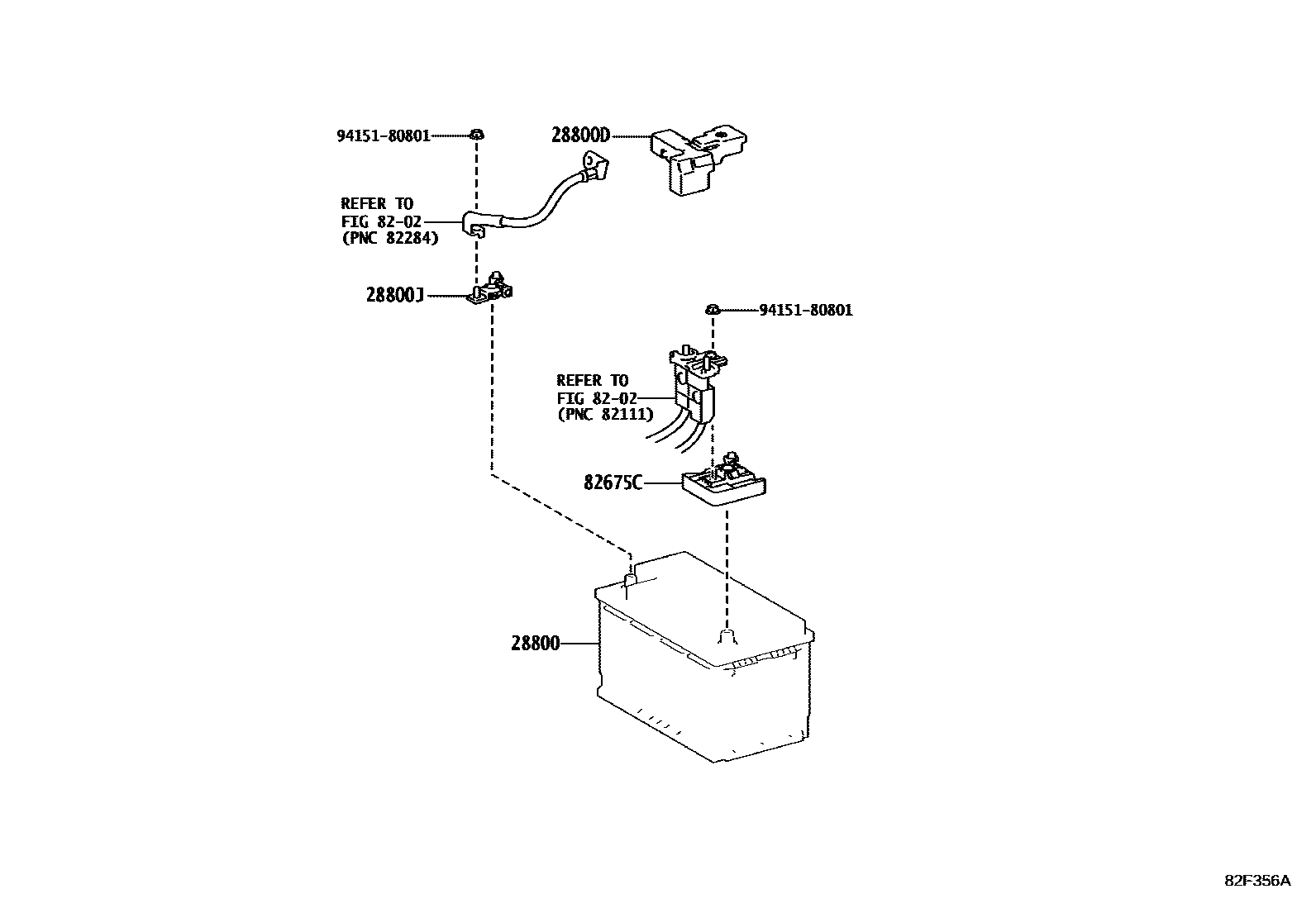

Parts diagram

28800BATTERY

main28800-70210i202112-202210

main28800-70211i202211-202411

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-60870i202112-202411

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061i202112-202411

8202WIRING & CLAMP

→ Go to FIG 82-02

82675CTERMINAL, JUNCTION

main82675-60450i202112-202411

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
