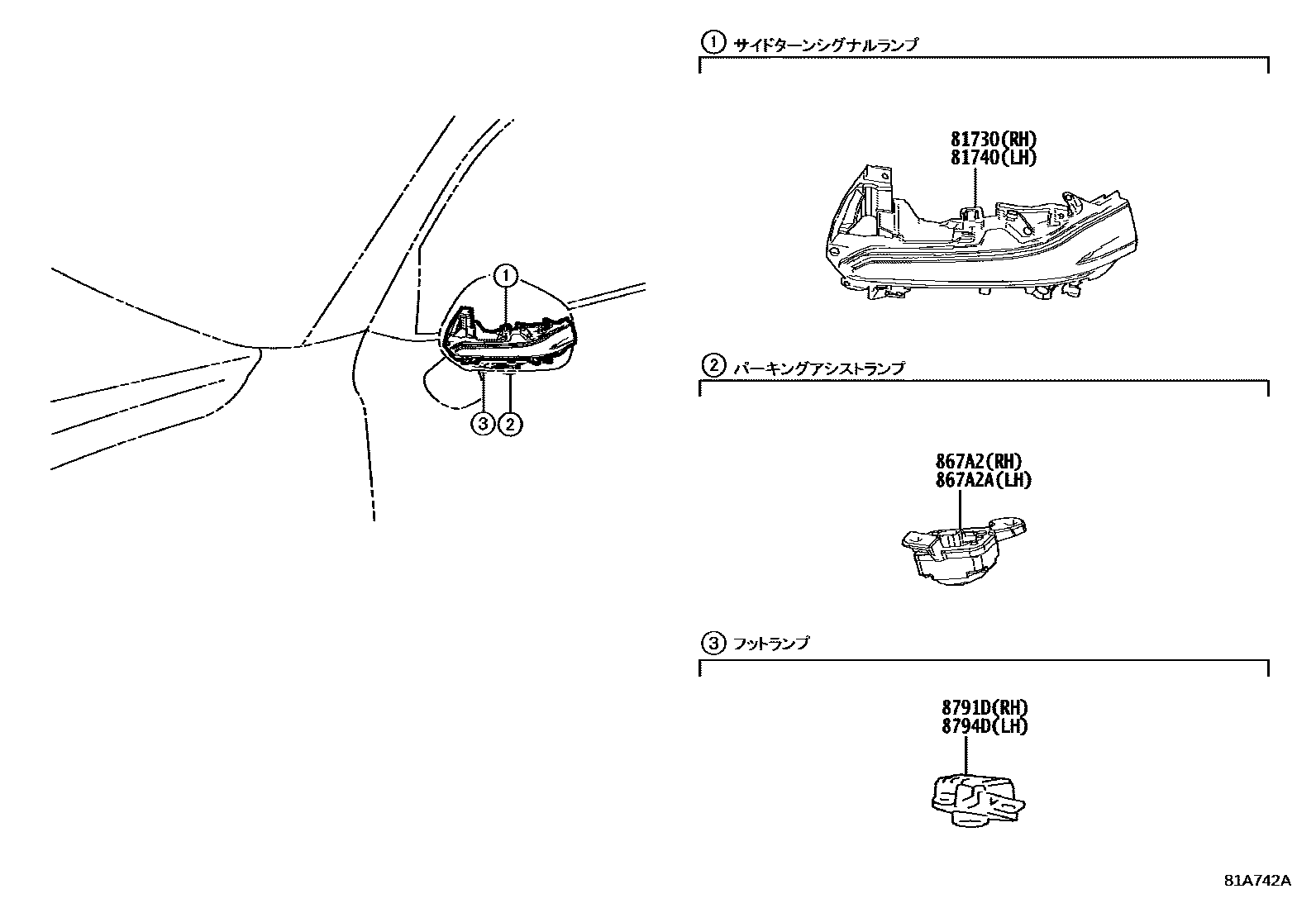

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-60160supersedes 81730-60151iVJA310202112-202408

main81730-60161supersedes 81730-60151iVJA310202409-202411

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-60160supersedes 81740-60151iVJA310202112-202408

main81740-60161supersedes 81740-60151iVJA310202409-202411

867A2LIGHT, PARKING ASSIST, RH

main867A2-60010iVJA310202112-202306

main867A2-60030iVJA310202307-202411

867A2ALIGHT, PARKING ASSIST, LH

main867A2-60020iVJA310202112-202306

main867A2-60040iVJA310202307-202411

8791DLED, OUTER MIRROR FOOT LAMP, RH

main8791D-60X40iVJA310202112-202310

main8791D-60X41iVJA310202310-202411

8794DLED, OUTER MIRROR FOOT LAMP, LH

main8794D-60X40iVJA310202112-202310

main8794D-60X41iVJA310202310-202411

6 parts on this diagram · 1 diagram in section
