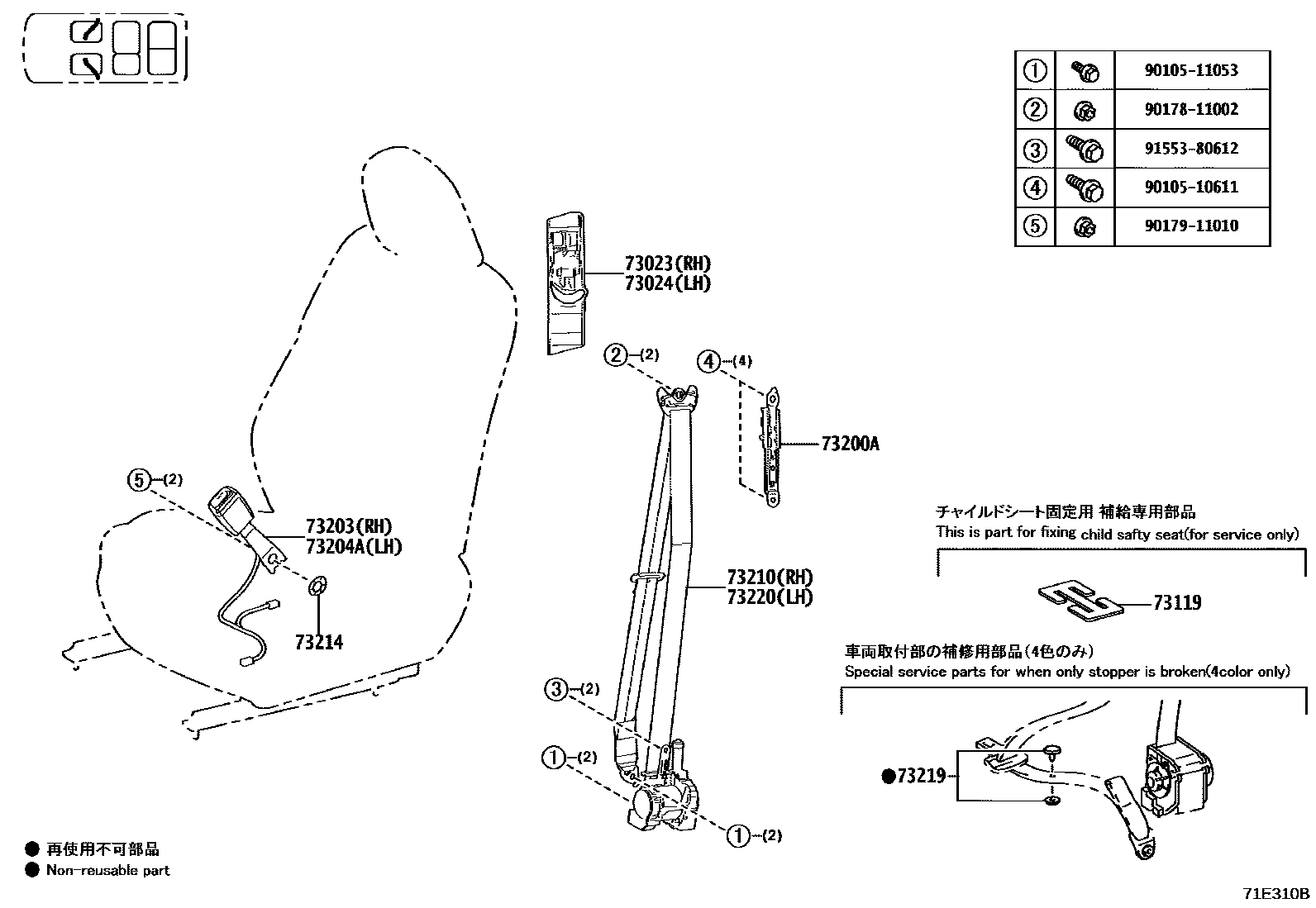

SEAT BELT

0001 1������� 0002 1��NO.1���(7������) 0003 1��NO.1���(4������) 0004 1��NO.2���

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iVJA310202112-202411

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-42020iVJA310202112-202411

73203BELT SET, FRONT SEAT, RH

main73204-60030-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

73204ABELT SET, FRONT SEAT, LH

main73203-60030-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60B70-C0iVJA310202112-202207

BLACK,TRIM0#,2#,3#,4#

main73210-60B71-C0iVJA310202208-202301

BLACK,TRIM0#,2#,3#,4#

main73210-60B72-C0iVJA310202301-202411

BLACK,TRIM0#,2#,3#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iVJA310202112-202411

73219STOPPER, TONGUE PLATE

main73219-33010iVJA310202112-202411

main73219-33020iVJA310202112-202411

main73219-33030iVJA310202112-202411

main73219-50010iVJA310202112-202411

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60800-C0iVJA310202112-202207

BLACK,TRIM0#,2#,3#,4#

main73220-60801-C0iVJA310202208-202301

BLACK,TRIM0#,2#,3#,4#

main73220-60802-C0iVJA310202301-202411

BLACK,TRIM0#,2#,3#,4#

9010510611

main90105-10611

9010511053

main90105-11053

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

15 parts on this diagram · 4 diagrams in section
