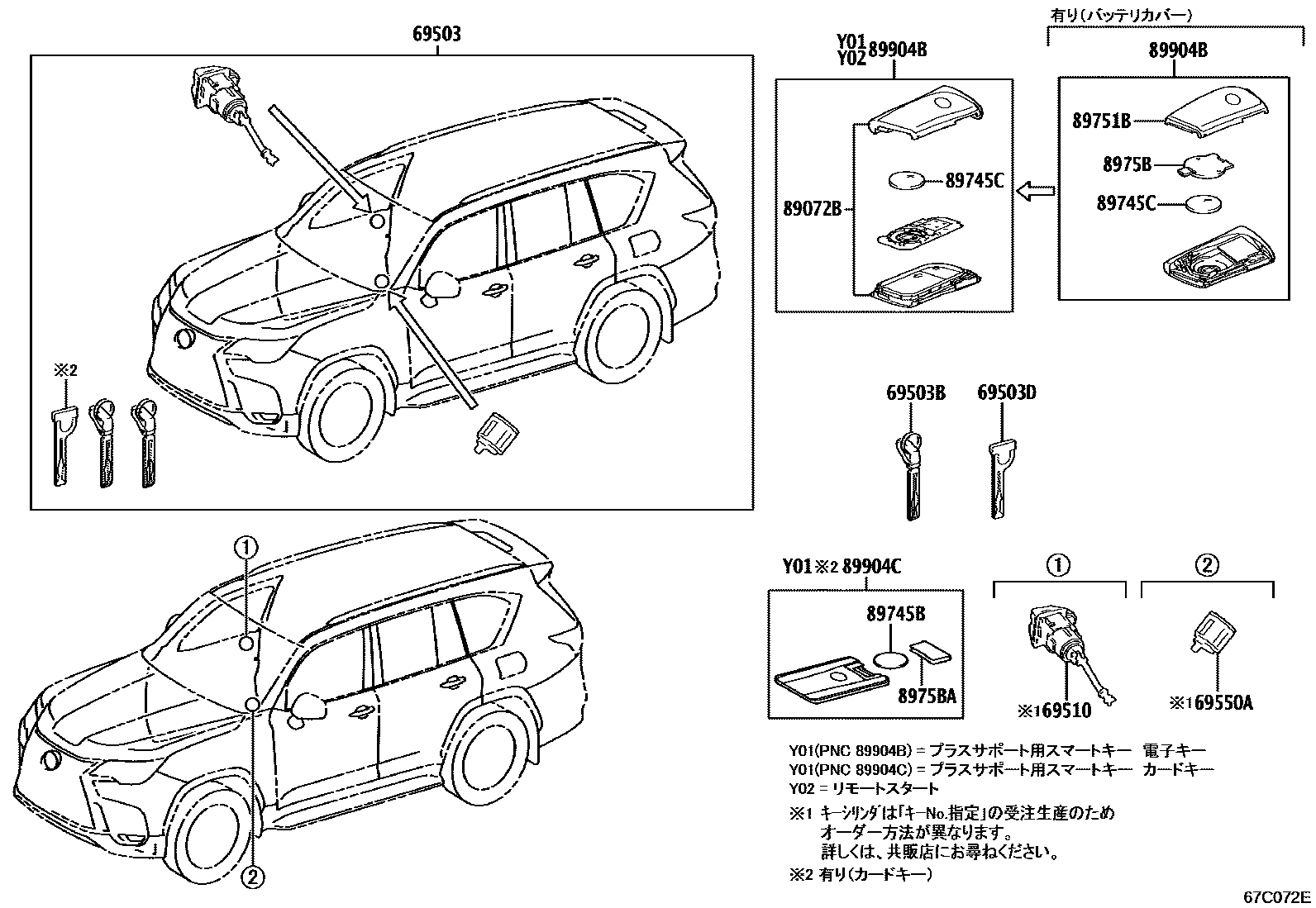

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-60S10supersedes 69005-60P40iVJA310202211-202301

69503BKEY, CUT

main69515-50300iVJA310202112-202411

69503DKEY, CUT(CARD KEY)

main69515-12270iVJA310202112-202411

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-60380iVJA310202112-202411

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iVJA310202112-202411

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-60T70×2iVJA310202112-202411

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iVJA310202112-202209

89745CBATTERY, TRANSMITTER

main89745-K0020supersedes 89745-50020iVJA310202211-202301

89751BCOVER, TRANSMITTER HOUSING

main89751-60170×2iVJA310202211-202301

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-48010×2iVJA310202211-202301

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

main8975B-50030iVJA310202112-202209

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-60Q40×2supersedes 8990H-60583iVJA310202211-202301

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main8990H-78530supersedes 8990H-78532iVJA310202112-202201

main8990H-78531supersedes 8990H-78532iVJA310202202-202209

13 parts on this diagram · 1 diagram in section
