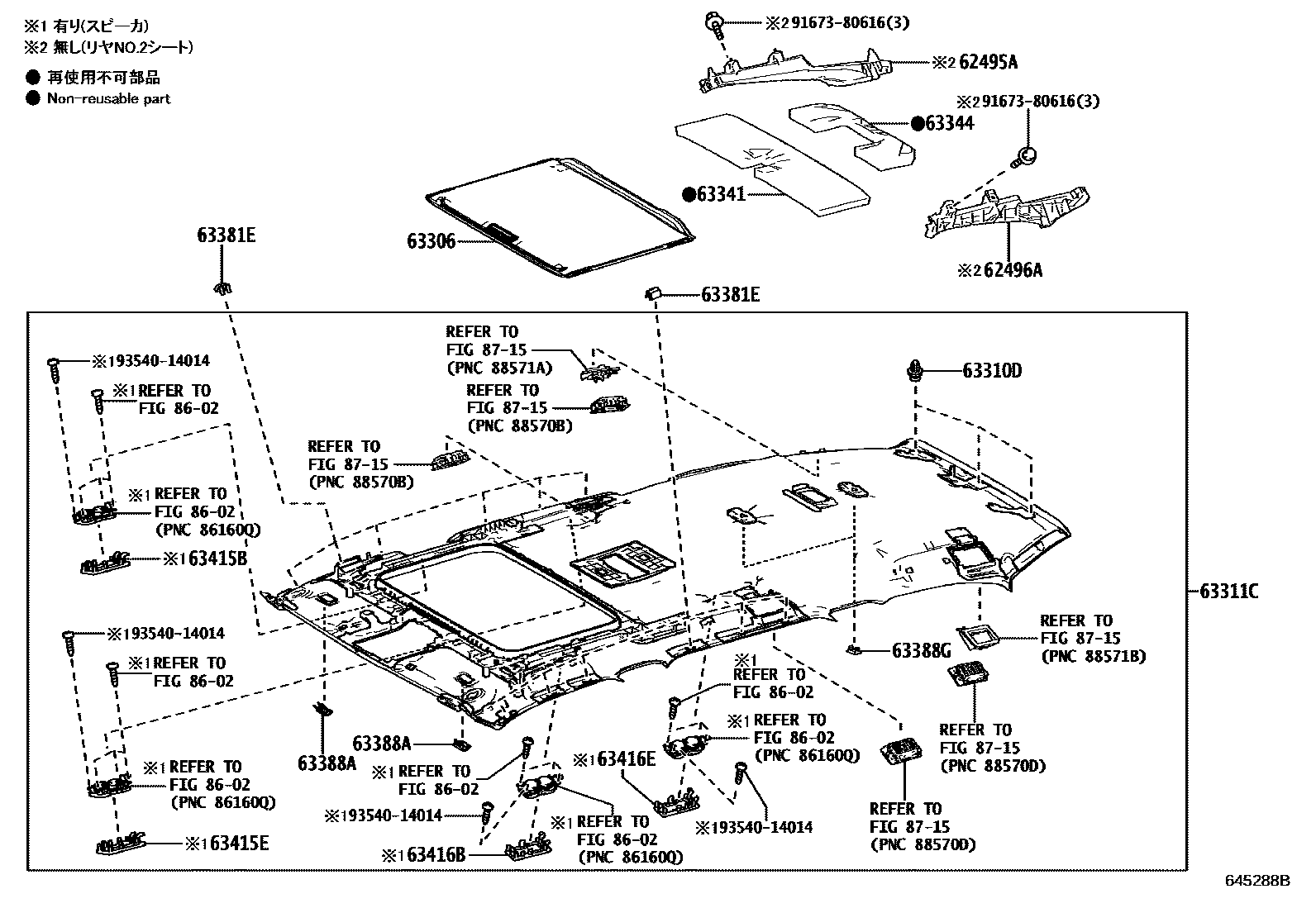

ROOF HEADLINING & SILENCER PAD

0001 1������ 0002 1������(VIP�������)

62495ASPACER, ROOF SIDE INNER GARNISH, RH NO.1

main62495-60060iVJA310202112-202411

62496ASPACER, ROOF SIDE INNER GARNISH, LH NO.1

main62496-60060iVJA310202112-202411

63306TRIM SUB-ASSY, SUNSHADE

main63306-60170-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

63310DCLIP, ROOF HEADLINING

main90467-10167×3iVJA310202112-202411

63311CHEADLINING, ROOF

main63311-60A40-C0supersedes 63311-60A30-C0iVJA310202112-202411

main63311-60B00-C0iVJA310202112-202411

63341PAD, ROOF SILENCER, NO.1

main63343-60080supersedes 63341-60180iVJA310202112-202411

63344PAD, ROOF SILENCER, NO.4

main63344-60050iVJA310202112-202411

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-60030×12iVJA310202112-202411

63388ACOVER, ROOF HEADLINING HOLDER

main63388-60080-C0×2iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

63388GCOVER, ROOF HEADLINING HOLDER, NO.2

main63388-33050-C0×2iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

63415BGRILLE, ROOF SPEAKER, RH

main63415-60040-C0iVJA310202112-202411

63415EGRILLE, ROOF SPEAKER, RH NO.2

main63415-60060-C0iVJA310202112-202411

63416BGRILLE, ROOF SPEAKER, LH

main63416-60040-C0iVJA310202112-202411

63416EGRILLE, ROOF SPEAKER, LH NO.2

main63416-60060-C0iVJA310202112-202411

8602SPEAKER

→ Go to FIG 86-02

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9167380616

main91673-80616

9354014014

main93540-14014

18 parts on this diagram · 2 diagrams in section
