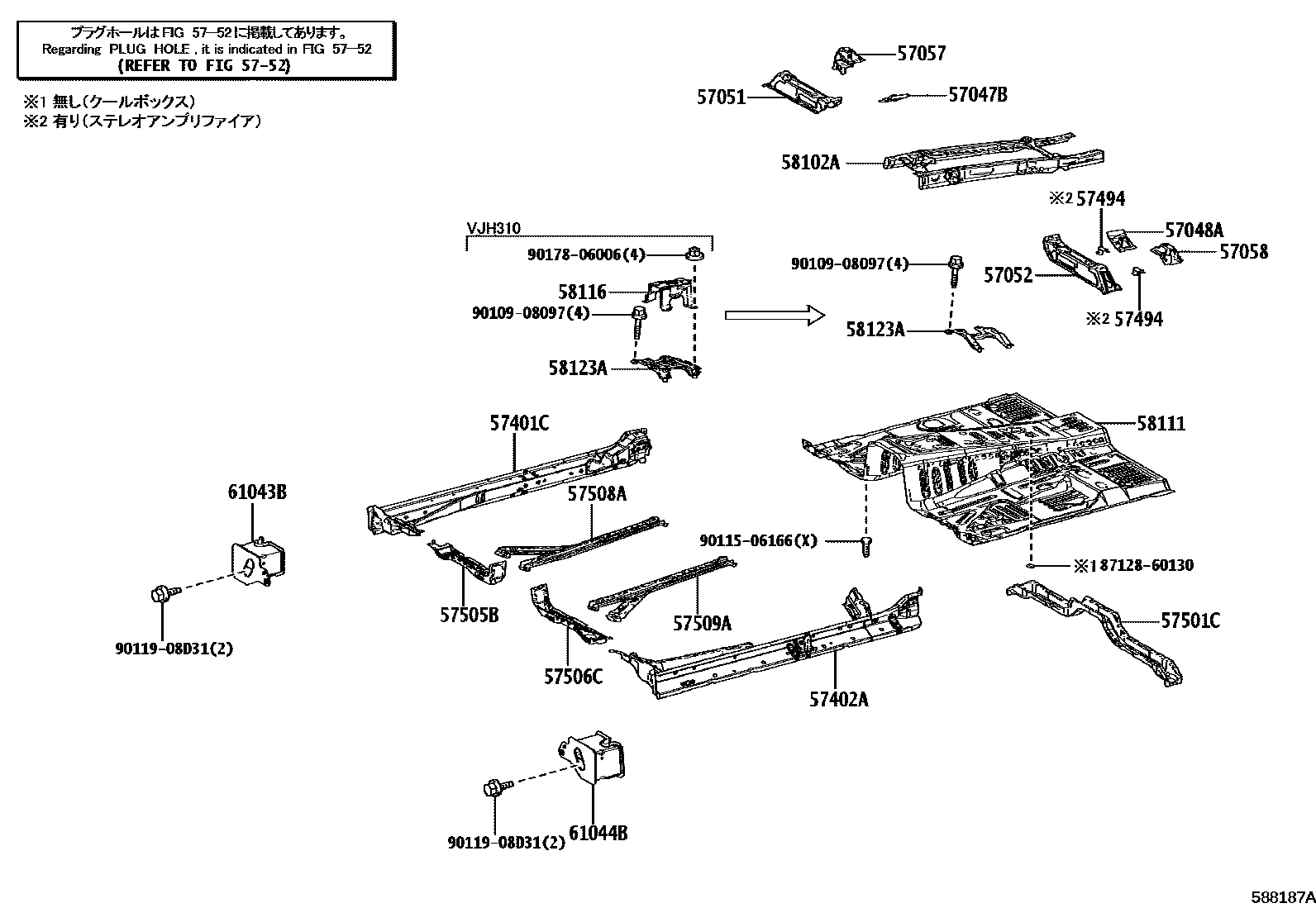

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

57047BBRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH

main57047-60010i202112-202411

57048ABRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH

main57048-60010i202112-202411

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60080i202112-202411

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60090supersedes 57052-60080i202112-202411

57057REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 RH

main57057-60010i202112-202411

57058REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 LH

main57058-60010i202112-202411

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-60140i202112-202411

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-60150i202112-202411

57494BRACE, FRONT FLOOR CROSS, NO.2 LH

main57494-60010×2i202112-202411

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-60010i202112-202411

57505BREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH

main57505-60080i202112-202411

57506CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH

main57506-60050i202112-202411

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-60030i202112-202411

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-60140i202112-202411

5752HOLE PLUG

→ Go to FIG 57-52

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60120i202112-202411

58111PAN, FRONT FLOOR

main58111-60G10i202112-202411

58116PLATE, SHIFT CABLE MOUNTING

main58116-60010

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60110i202112-202304

main58123-60111i202305-202411

61043BEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH

main61043-60010i202112-202303

main61043-60011i202304-202411

61044BEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

main61044-60010i202112-202303

main61044-60011i202304-202411

8712860130GROMMET, HEATER

main87128-60130

9010908097

main90109-08097

9011506166

main90115-06166

9011908D31

main90119-08D31

9017806006

main90178-06006

26 parts on this diagram · 2 diagrams in section
