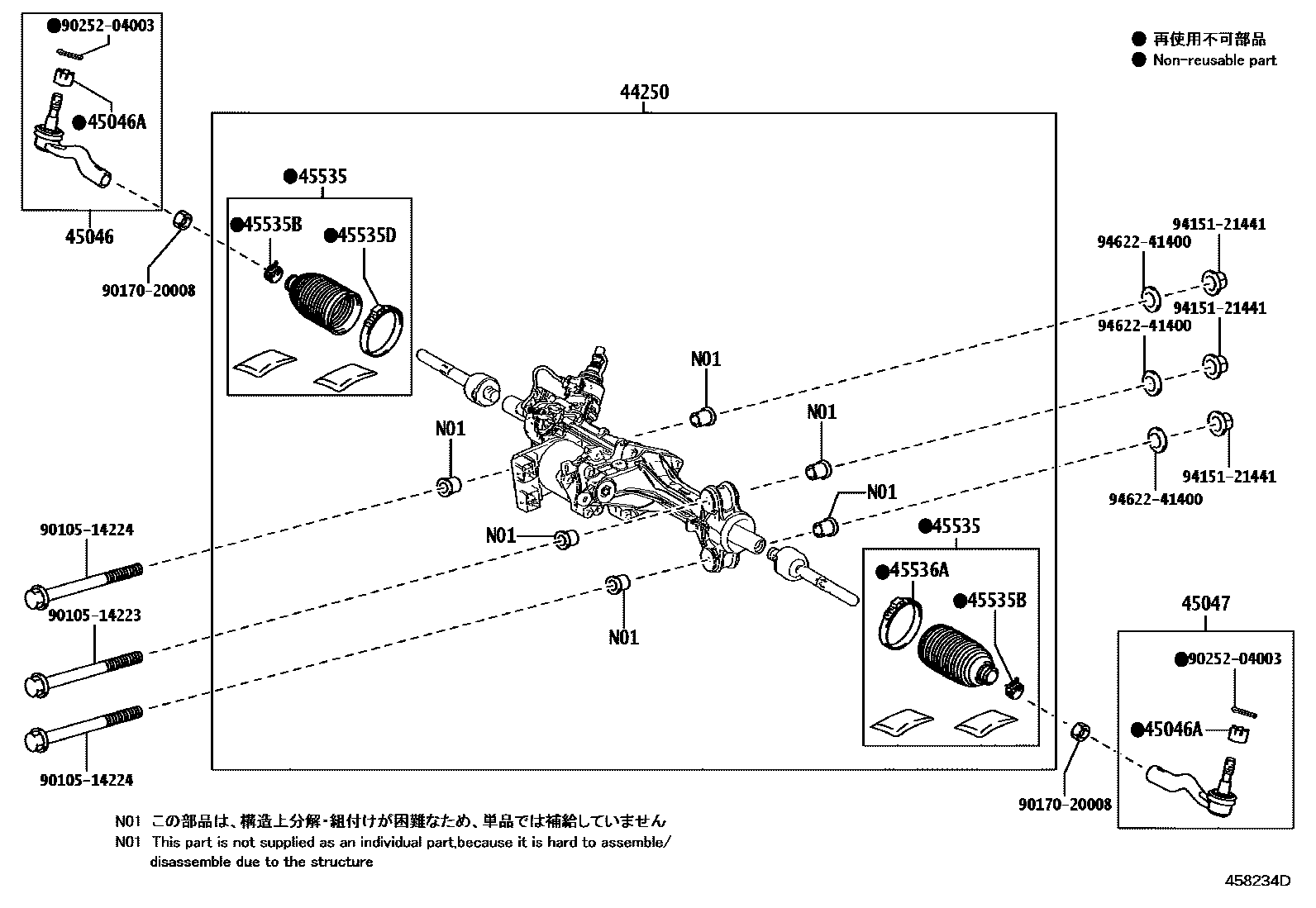

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0W030iVJA310202112-202310

main44250-0W031iVJA310202310-202411

45046END SUB-ASSY, TIE ROD, RH

main45046-69265iVJA310202112-202411

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16011×2iVJA310202112-202411

45047END SUB-ASSY, TIE ROD, LH

main45046-69265iVJA310202112-202411

45535BOOT, STEERING RACK, NO.1

main45535-09690×2iVJA310202112-202411

45535BCLIP(FOR STEERING RACK BOOT)

main96134-42300×2iVJA310202112-202411

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-81008iVJA310202112-202411

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-81008iVJA310202112-202411

9010514223

main90105-14223

9010514224

main90105-14224

9017020008

main90170-20008

9025204003

main90252-04003

9415121441

main94151-21441

9462241400

main94622-41400

14 parts on this diagram · 1 diagram in section
