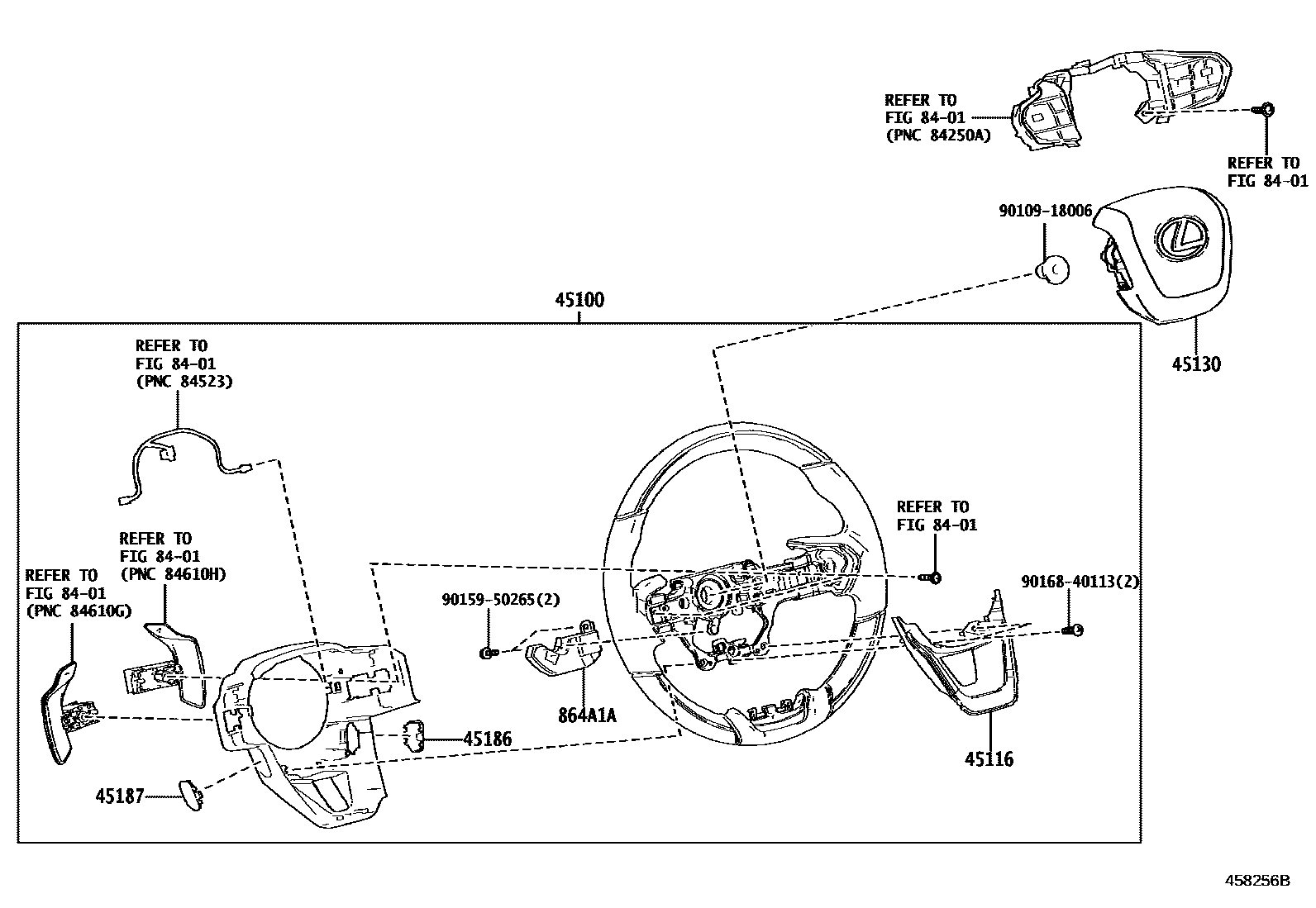

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-60C50-C4iVJA310202112-202411

main45100-60C50-C7iVJA310202112-202411

main45100-60C50-C8iVJA310202112-202411

main45100-60C50-C9iVJA310202112-202411

main45100-60C80-C2iVJA310202112-202411

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-60060supersedes 45116-60050iVJA310202112-202411

45130BUTTON ASSY, HORN

main45130-60700-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-78010-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-78010-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

main864A1-78020iVJA310202112-202411

9010918006

main90109-18006

9015950265

main90159-50265

9016840113

main90168-40113

10 parts on this diagram · 1 diagram in section
