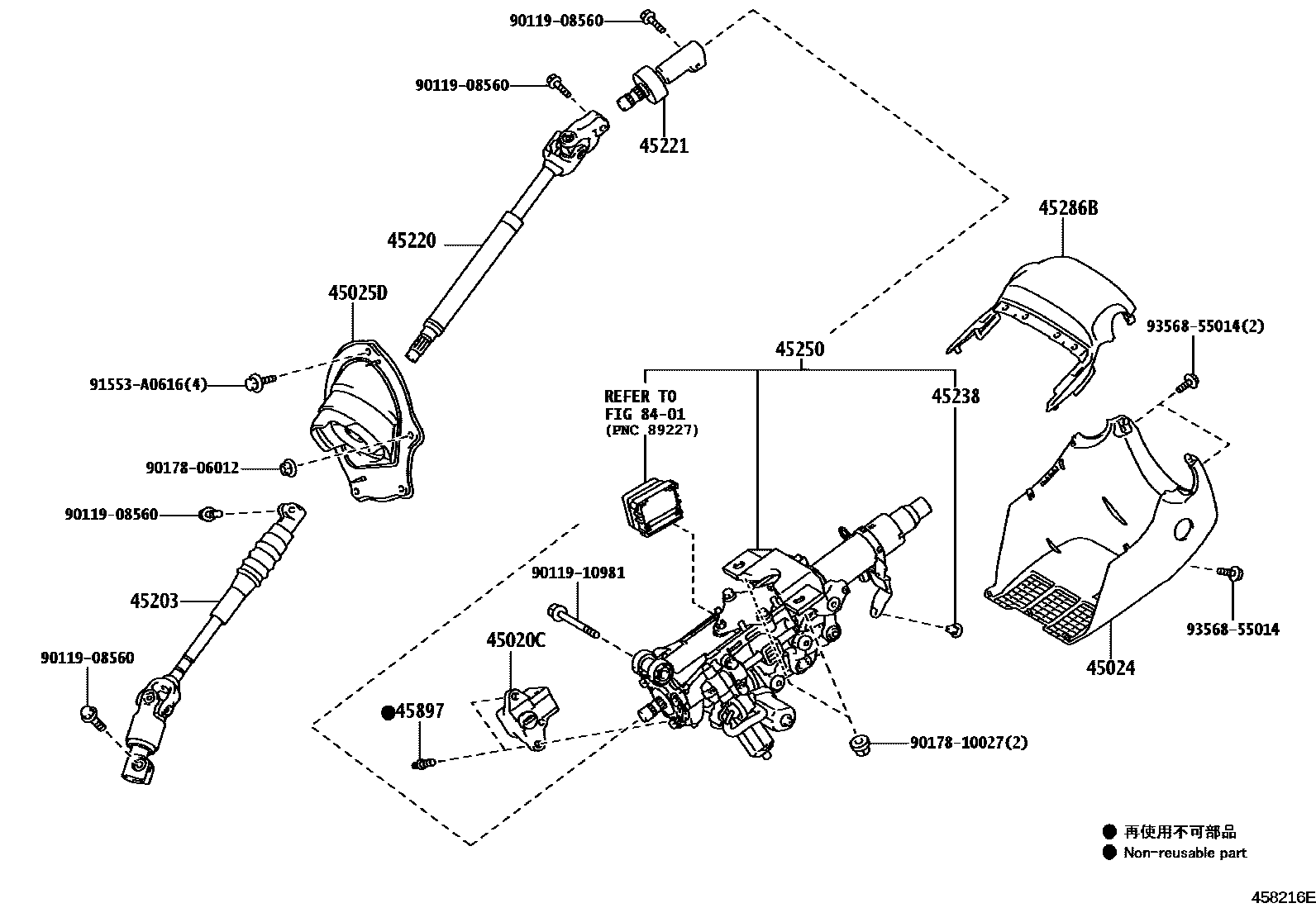

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-60880iVJA310202112-202411

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-60060-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-60290iVJA310202112-202411

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-60280iVJA310202112-202411

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60390iVJA310202112-202411

45221SHAFT, STEERING INTERMEDIATE

main45221-60270iVJA310202112-202411

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iVJA310202112-202411

45250COLUMN ASSY, STEERING

main45250-48430iVJA310202112-202411

45286BCOVER, STEERING COLUMN, UPR

main45286-78030-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

45897BOLT, STEERING LOCK SET

main45897-12020×2iVJA310202112-202411

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9011910981

main90119-10981

9017806012

main90178-06012

9017810027

main90178-10027

91553A0616

main91553-A0616

9356855014

main93568-55014

17 parts on this diagram · 2 diagrams in section
