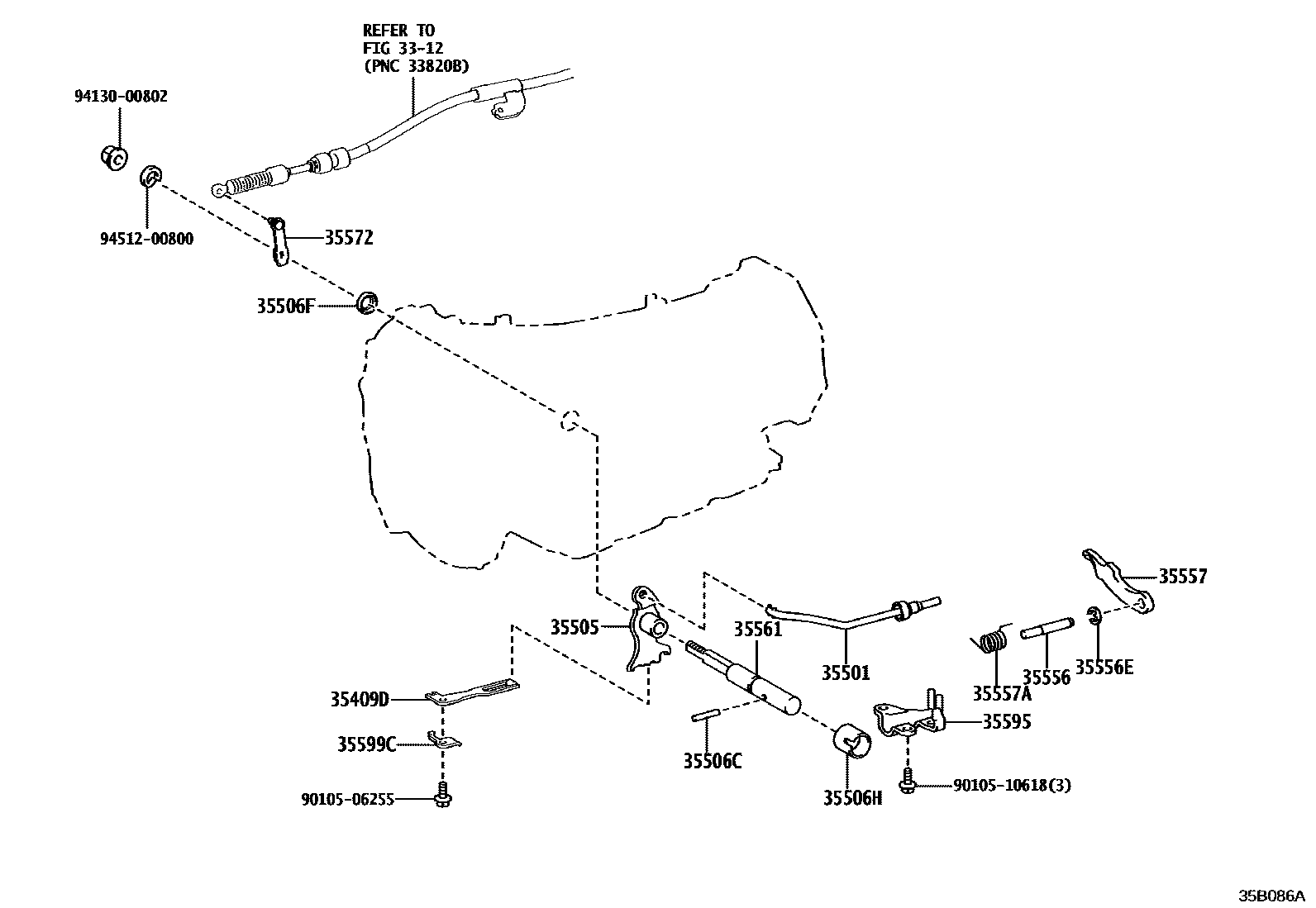

THROTTLE LINK & VALVE LEVER (ATM)

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-60060iVJA310202112-202411

35501ROD SUB-ASSY, PARKING LOCK

main35501-60050iVJA310202112-202411

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-60110iVJA310202112-202411

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iVJA310202112-202411

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iVJA310202112-202411

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iVJA310202112-202411

35556SHAFT, PARKING LOCK PAWL

main35556-60030iVJA310202112-202411

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iVJA310202112-202411

35557PAWL, PARKING LOCK

main35557-60060iVJA310202112-202411

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03147iVJA310202112-202411

35561SHAFT, MANUAL VALVE LEVER

main35561-60050iVJA310202112-202411

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-60170iVJA310202112-202411

35595BRACKET, PARKING LOCK PAWL

main35595-60050iVJA310202112-202411

35599CCOVER, MANUAL DETENT SPRING

main35599-60040iVJA310202112-202411

9010506255

main90105-06255

9010510618

main90105-10618

9413000802

main94130-00802

9451200800

main94512-00800

19 parts on this diagram · 1 diagram in section
